Quick Details
-
Voltage:
-
Customer Required
-
Power:
-
0.75kw - 75kw
-
Dimension(L*W*H):
-
depend on the model
-
Weight:
-
depend on the model
-
Product name:
-
Reactor
-
Material:
-
SS304 ; SS316L ; Carbon steel
-
Heating method:
-
Electric Heating, Steam Heating, Circulation oil heating etc.
-
Mixing Type:
-
Anchor, Frame, Paddle etc.
-
Sealing Type:
-
Mechnical Seal
-
Keywords:
-
Resin reactor
-
Working pressure:
-
Ordinary Pressure
-
Vacuum Degree:
-
-0.098 Mpa
-
Speed Control:
-
Inverter
-
Function:
-
Unsaturated polyester resin reactor
-
Certification:
-
CE ISO
Quick Details
-
Capacity:
-
50L-15000L
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SANWEI
-
Voltage:
-
Customer Required
-
Power:
-
0.75kw - 75kw
-
Dimension(L*W*H):
-
depend on the model
-
Weight:
-
depend on the model
-
Product name:
-
Reactor
-
Material:
-
SS304 ; SS316L ; Carbon steel
-
Heating method:
-
Electric Heating, Steam Heating, Circulation oil heating etc.
-
Mixing Type:
-
Anchor, Frame, Paddle etc.
-
Sealing Type:
-
Mechnical Seal
-
Keywords:
-
Resin reactor
-
Working pressure:
-
Ordinary Pressure
-
Vacuum Degree:
-
-0.098 Mpa
-
Speed Control:
-
Inverter
-
Function:
-
Unsaturated polyester resin reactor
-
Certification:
-
CE ISO
Product Description

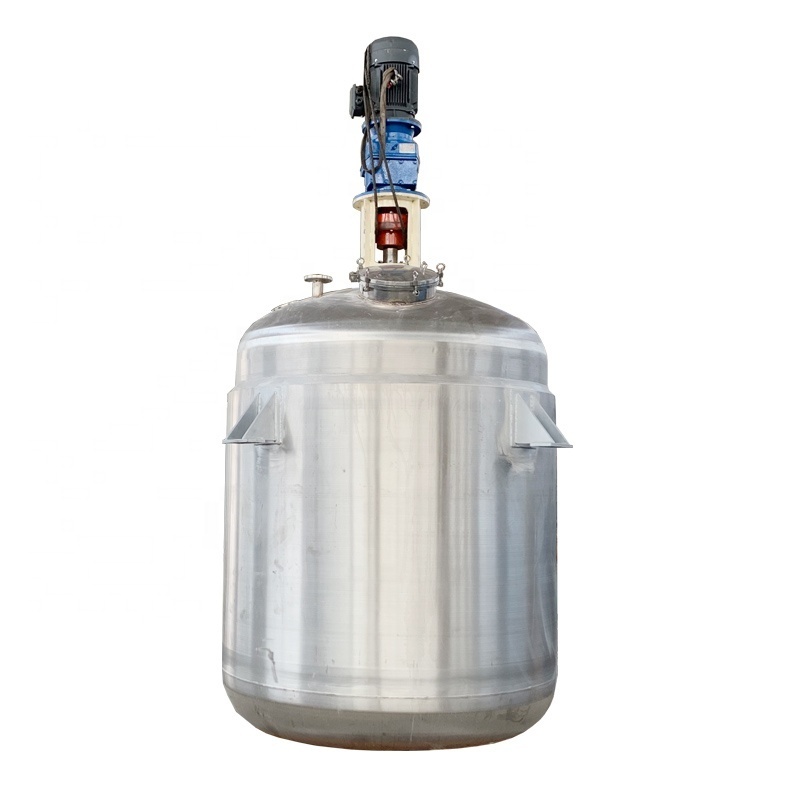

Unsaturated Polyester Resin Reactor Plant Polyester Resin Equipment Hot Melt Glue Making Machine
1. Volume: 50 ~ 30000L
2. Material: SS304 , SS316 ; Carbon steel , Lined PTFE
3. Agitator: anchor , frame , paddle , multifunction etc.
4. Optional: heating or cooling
5. Type: single layer, jacketed type, external coil-pipe type
6. Heating method: electric heating, steam heating, circulation oil heating, infrared heating etc.
7. Warranty: 1 year
8. We support customization.
2. Material: SS304 , SS316 ; Carbon steel , Lined PTFE
3. Agitator: anchor , frame , paddle , multifunction etc.
4. Optional: heating or cooling
5. Type: single layer, jacketed type, external coil-pipe type
6. Heating method: electric heating, steam heating, circulation oil heating, infrared heating etc.
7. Warranty: 1 year
8. We support customization.
|
Model
|
50L
|
100L
|
300L
|
500L
|
1000L
|
2000L
|
3000L
|
5000L
|
|||||||
|
Mixing Motor Power
|
0.75KW
|
1.1KW
|
2.2KW
|
2.2KW
|
4KW
|
5.5KW
|
7.5KW
|
15-18.5KW
|
|||||||
|
Heating Motor Power
|
8KW
|
12KW
|
24KW
|
36KW
|
48KW
|
60KW
|
75KW
|
90KW
|
|||||||
|
Inner Plate Thickness
|
5mm
|
5mm
|
5mm
|
5mm
|
6mm
|
6mm
|
8mm
|
8mm
|
|||||||
|
Jacket Plate Thickness
|
5mm
|
5mm
|
5mm
|
5mm
|
6mm
|
6mm
|
8mm
|
8mm
|
|||||||
|
Material
|
SS304, SS316L, Carbon Steel; It also can lined PTFE. It can be customized to meet your requirement.
|
|
|
|
|
|
|
|
|||||||
|
Heating Type
|
electric heating, steam heating, oil circulation heating etc.
|
|
|
|
|
|
|
|
|||||||
|
Agitator
|
anchor, paddle, frame etc.
|
|
|
|
|
|
|
|
|||||||
|
Sealing Method
|
packing seal or mechanical seal (vacuum)
|
|
|
|
|
|
|
|
|||||||
|
Model
|
We still have more models. (6000l, 8000l, 10000l, 15000l, 20000l, 30000l etc.)
|
|
|
|
|
|
|
|
|||||||
|
Remarks
|
We support OEM
|
|
|
|
|
|
|
|
|||||||
More Type
Project Show Case
Details Images
Mirror polished
curved head
The upper cover of reactor (
customizable
)
Anchor agitator
Paddle agitator
Cooling coil-pipe in inner cylinder
Cooling coil-pipe in inner cylinder
