Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
TDF pinned roller
-
Showroom Location:
-
Thai
-
Product name:
-
TDFbrush Cold needle perforation roller
-
Usage:
-
Plastic film/foil /any material
-
Types:
-
Cold Perforation/Hot Perforation
-
Shipping Ways:
-
Wooden package
-
Cold perforation:
-
taking a sharpened pin and piercing a substrate with the pin point.
-
Size:
-
25mm wide up to 4000mm wide as standard
-
Pins dia:
-
0.6 to7mm
-
More inforamtion:
-
Pls contact
-
Material:
-
Stainless Steel/Brass /Aluminium
-
Quality:
-
Very good
Quick Details
-
Use:
-
Textile Finishing Machinery
-
Type:
-
Spindle
-
Weight (KG):
-
2
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
TDF pinned roller
-
Showroom Location:
-
Thai
-
Product name:
-
TDFbrush Cold needle perforation roller
-
Usage:
-
Plastic film/foil /any material
-
Types:
-
Cold Perforation/Hot Perforation
-
Shipping Ways:
-
Wooden package
-
Cold perforation:
-
taking a sharpened pin and piercing a substrate with the pin point.
-
Size:
-
25mm wide up to 4000mm wide as standard
-
Pins dia:
-
0.6 to7mm
-
More inforamtion:
-
Pls contact
-
Material:
-
Stainless Steel/Brass /Aluminium
-
Quality:
-
Very good

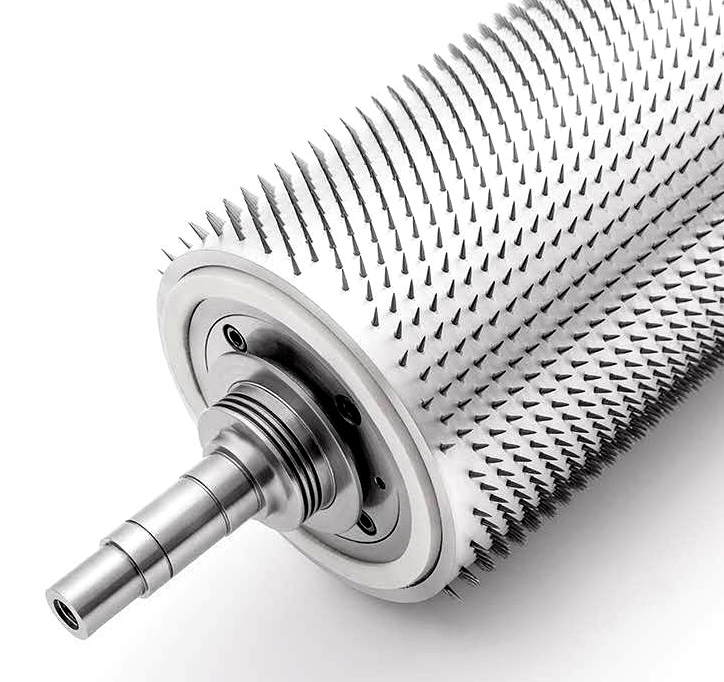

TDFbrush Cold needle perforation roller for PP PE film Hole Punching
Cold rotary pin perforating
Cold rotary pin perforating can be applied continuously, or can be made to work in register or intermittently.
Benefits:
Least expensive method of perforating
Fastest method of perforating
Simple to install and operate
Simple to maintain
Can be used on just about any material
Disadvantage:
Some benefits from a volcanic style apertureDusting can occur in some materials
|
Needle Diameter
|
According to customers' requirements,the minimum diameter is 0.25mm
|
|
Angle of Inclination
|
90°,85°,80°,75°,70°
|
|
Needle Density
|
Up to 100 needles/cm²
|
|
Drill Depth
|
Max 8mm
|
|
Hole Pattern
|
Almost any pattern is possible,linear,spiral-patterns according to the demand
|
|
Diameter of Roller
|
10~350 mm
|
|
Height of Roller
|
Max 300mm
|
|
Roller Material
|
Bronze,brass,aluminium
|
|
Concentricity
|
High concentricity (0.07mm)
|
Hot rotary pin perforating
Hot pin perforating is the process of taking a heated, sharpened pin and piercing a substrate with the pin point. This results in a melted hole, where the center of the hole is melted into a re-enforced ring around the punctured hole.
Benefits:
Less expensive method of perforating than laser with often similar results
Great for perforating all the way across a web
Straightforward to install and operate
Simple to maintain
Heat helps prevent dusting seen in cold perforating applications
Can be used on just about any material
Some benefits from the molten ring style aperture
Stronger resulting holes are helpful, especially in brittle material applications
Melted hole will not close back up, and allows for excellent flow control of air, moisture or water
Disadvantage:
The center of the hole is pierced and melted, debris can sometimes be an issue, depending on the substrate
The welted style hole is not always suitable for the application
