Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
kunlunhaisu
-
Voltage:
-
380-440v
-
Dimension(L*W*H):
-
12*1.5*3.1m
-
Power (kW):
-
55
-
Weight:
-
2000 KG
-
product name:
-
PU Plastic soft Pipe extrusion line
-
Usage:
-
Air Tube
-
Output:
-
25 - 40 kg/h
-
Product range:
-
8-12mm
-
Inverter:
-
ABB Brand
-
Contactor:
-
Schneider Brand
-
Marketing Type:
-
Hot Product
Quick Details
-
Screw Design:
-
Single-screw
-
Screw L/D Ratio:
-
28:1
-
Screw Speed (rpm):
-
150 rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
kunlunhaisu
-
Voltage:
-
380-440v
-
Dimension(L*W*H):
-
12*1.5*3.1m
-
Power (kW):
-
55
-
Weight:
-
2000 KG
-
product name:
-
PU Plastic soft Pipe extrusion line
-
Usage:
-
Air Tube
-
Output:
-
25 - 40 kg/h
-
Product range:
-
8-12mm
-
Inverter:
-
ABB Brand
-
Contactor:
-
Schneider Brand
-
Marketing Type:
-
Hot Product
Production profile
The production technology adopts vacuum negative pressure and positive pressure moulding method, which greatly improves the accuracy of PU Pneumatics Pipe and uniform wall thickness, making the product more pressure resistant. So far, it is still continuously researching, improving technology and putting it into actual production.
Product Advantage

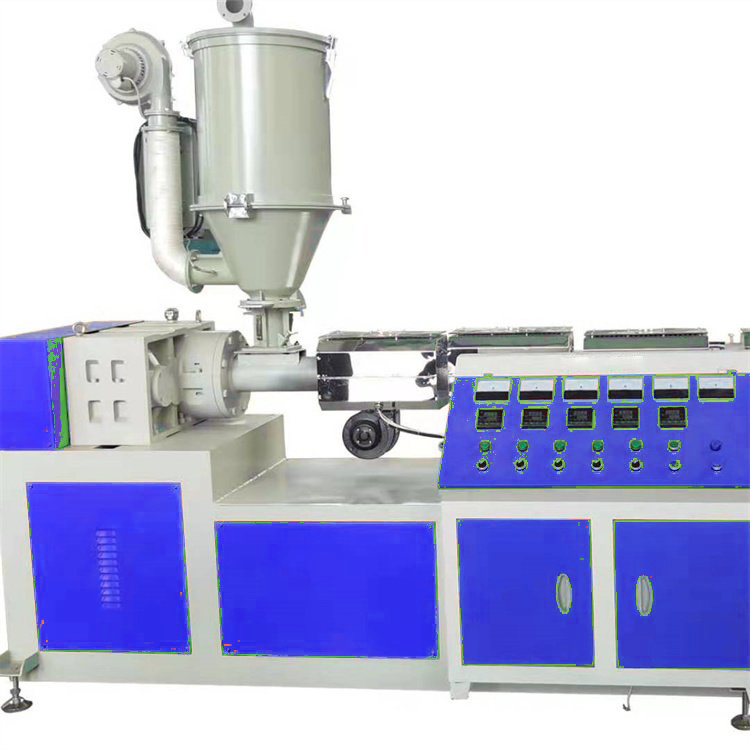

PU Pneumatic Plastic soft Pipe Air Compressor Hose extrusion line
2, New high-tech configuration: strict material selection. It select reliable quality accessories to ensure the stability of
equipment, equipment temperature control precision, extrusion stability, precision cutting. Product surface gloss, small aperture error, good texture.
3, Good product quality: It adopt special technology. The produced PU pipe wall is smooth and uniform with high surface gloss,stable size, long working life; Good resilience, small bending radius, easy installation and cutting; Wear resistance, excellent mechanical properties.
Product Description
1,The technical parameters of PU Plastic Soft pipe extrusion line:
|
Machine model
|
Screw diameter
|
Screw L/D
|
Installed power
|
extrusion output
|
|
SJ-55
|
55
|
30:1
|
35
|
30-60
|
|
SJ-65
|
65
|
30:1
|
50
|
40-80
|
2,Composition of PU Plastic Soft pipe extrusion line:
|
NO.
|
Device name
|
Quantity:set
|
||
|
1
|
Main extruder
|
1
|
||
|
2
|
Extrusion mould
|
1
|
||
|
3
|
shaping cooling tank
|
1
|
||
|
4
|
Servo tractor
|
1
|
||
|
5
|
Winder machine
|
1
|
||
|
auxiliary equipment (cooling-water machine, automatic feeding machine, blender mixer,Caliper ) is negotiable.
|
|
|
||
Packing & Delivery
packing by wooden or carton,which depend on your requirement.
Product application
PU material is widely used for liquid transportation under general working pressure in industry, agriculture, food, medicine,civil engineering, fisheries, aquaculture, garden irrigation and other fields. Such as: pneumatic hose, hydraulic pipe, garden hose, oil, water pipe and so on.
Production pipe diameter range of 4-18mm.
