Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
Ezcad
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NCSK
-
Marking Head Brand:
-
HINA
-
Weight (KG):
-
14.2 KG
-
Core Components:
-
laser source
-
Extend I/O:
-
Support
-
Certification:
-
ce
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support
-
Keywords:
-
portable laser marking machine
-
Marking Depth:
-
0.01-1mm
-
Maximum speed:
-
0.3mm²
-
Laser wavelength:
-
7000mm/s
-
Frequency Range:
-
1064nm
-
Minimum character:
-
20-80 kHz
Quick Details
-
Working Accuracy:
-
0.02mm
-
Graphic Format Supported:
-
AI, PLT, DXF, Dwg
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
Ezcad
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
NCSK
-
Marking Head Brand:
-
HINA
-
Weight (KG):
-
14.2 KG
-
Core Components:
-
laser source
-
Extend I/O:
-
Support
-
Certification:
-
ce
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support
-
Keywords:
-
portable laser marking machine
-
Marking Depth:
-
0.01-1mm
-
Maximum speed:
-
0.3mm²
-
Laser wavelength:
-
7000mm/s
-
Frequency Range:
-
1064nm
-
Minimum character:
-
20-80 kHz
Product Information
Welcome to contact Bo Lin for product inquiries and technical support.
Welcome to contact Bo Lin for discount and free test
Laser marking is a marking method that uses a high energy density laser to irradiate the workpiece, vaporize the surface material or react with color changes, thus leaving a permanent mark.
Principle of laser marking color development:
1. Formation of colored oxides
2. A colorless transparent oxide film is formed, resulting in interference and color
3. At the same time, colored oxide and colorless oxide film are formed
Ordinary fiber laser vaporizes or oxidizes the material surface through high temperature thermal effect, which can only form burning marks on the general metal surface, so it is difficult to form pure black and color marking effect.
The pulse width and frequency of MOPA laser can be adjusted in a wide range. By adjusting the laser pulse width and frequency,transparent oxide film and colored oxide film can be obtained on different metals.
The pulse width and frequency of MOPA laser can be adjusted in a wide range. By adjusting the laser pulse width and frequency,transparent oxide film and colored oxide film can be obtained on different metals.
|
Type
|
P3-MOPA-20W
|
P3-MOPA-30W
|
|
|
Input voltage
|
220V/50-60Hz/5A (110V/50-60Hz/8A to be customized)
|
|
|
|
Power consumed
|
≤500W
|
≤550W
|
|
|
Laser power
|
20W
|
30W
|
|
|
Adjustable power range
|
5-100%
|
|
|
|
Laser wave length
|
Adjustable
|
|
|
|
Max. speed
|
≤7000mm/s
|
|
|
|
Min. line width
|
0.02mm (On metal)
|
|
|
|
Min. character size
|
0.2mm*0.2mm
|
|
|
|
Repeat accuracy
|
±0.01mm
|
|
|
|
Marking depth
|
0.01mm-0.3mm
|
|
|
|
Marking area
|
100mm*100mm ("150mm*150mm"and "200mm*200mm" Optical)
|
|
|
|
Cooling system
|
Air cooling
|
|
|
|
Life of laser module
|
100000 hours
|
|
|

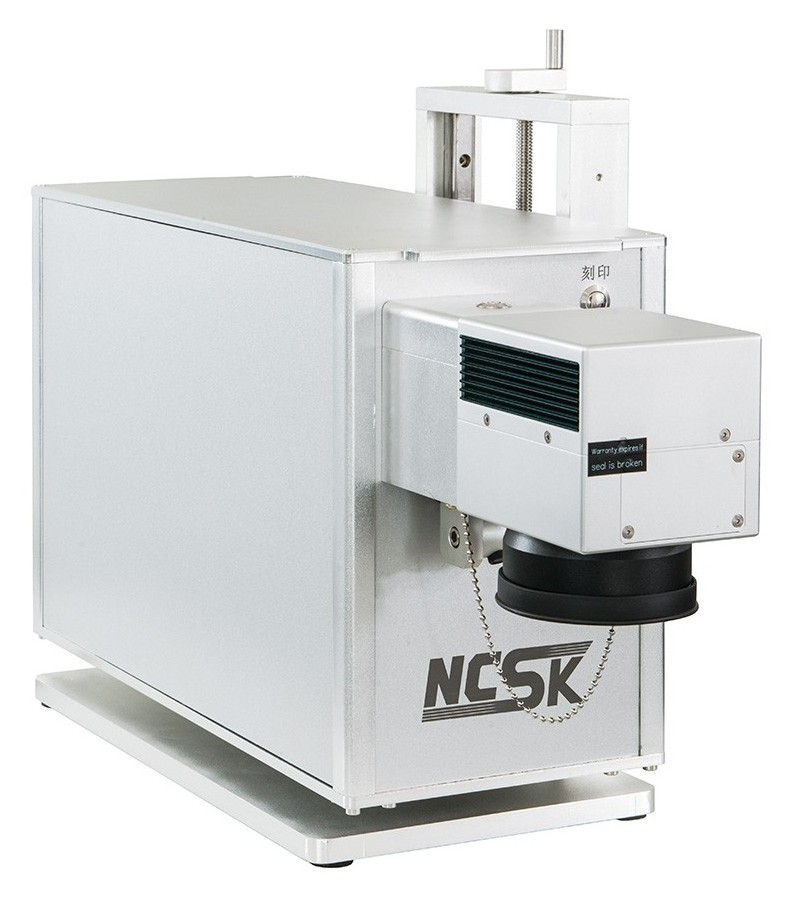

Ncsk portable laser marking machine, based on the miniaturized and compact design, optimizes the internal structure and heat dissipation system of the body, and greatly reduces the weight and size of the whole machine.
The weight of the whole machine is only 14.65kg, which can be easily carried with one hand.
In addition, in view of the risk that the frequent movement of portable models may cause the bending of optical fiber lines, we have integrated the optical fiber lines inside the fuselage without any exposed optical fibers.
