Quick Details
-
Brand Name:
-
NANIWA IRON WORKS
-
Model Number:
-
P9-10
-
Bolts length:
-
Please refer to the table in the description for detail.
Quick Details
-
Finish:
-
Please contact us
-
Material:
-
SCM435
-
Place of Origin:
-
Japan
-
Brand Name:
-
NANIWA IRON WORKS
-
Model Number:
-
P9-10
-
Bolts length:
-
Please refer to the table in the description for detail.
Products Description

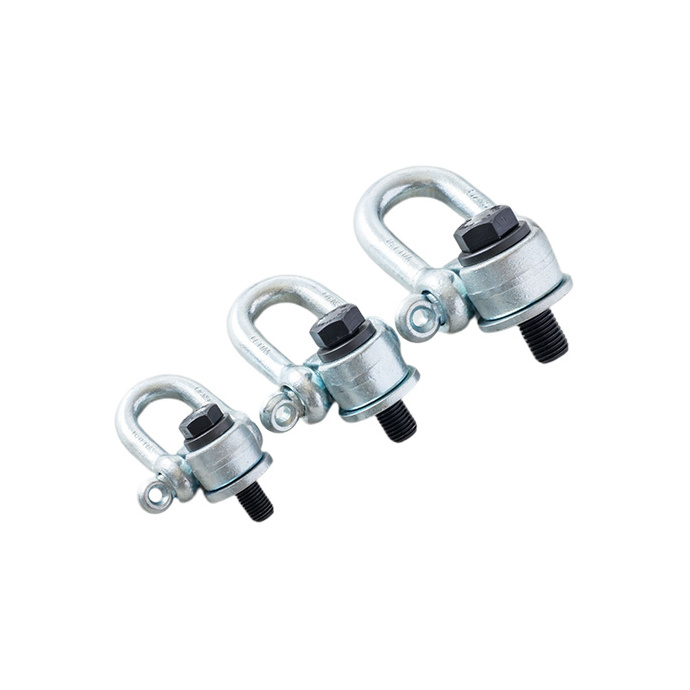

YOKOBEE
This product can only be
mounted to the side of the object
.
You can directly mount wire ropes as well as hooks.
We reduced the cost of this product by adapting it specifically for
horizontal mounting for lifting operations
.
With its
small
body and
lightweight
nature, this product has been designed with higher work efficiency in mind.
This product can be used to safely perform lifting operations from horizontally mounted bolts, which are normally dangerous with normal eye bolts.
It can be
rotated 180 degrees
in the direction in which the heavy load or object is lifted.
Longer bolt lengths are also available (on a made-to-order basis).
Specifications
|
Product Name
|
YOKOBEE
|
|
Brand Name
|
NANIWA IRON WORKS
|
|
Place of Origin
|
Japan
|
YOKOBEE Q&A
Q. Is there a hanging bolt that can attach a wire rope?
A. There is a "YOKOBEE" that can attach a wire rope or sling belt with a ring tip.
Q. I'm looking for an inexpensive hanging bolt that can be hung horizontally.
A. There is "YOKOBEE".
Q. Can I exchange it for a commercially available shackle?
A. Replaceable for commercially available threaded shackles.
Q. Please tell me the size of YOKOBEE".
A. Shackle W5/8 Hexagon head bolt M16 Working load 0.8ton
Shackle W3/4 Hexagon head bolt M20 Working load 1.0ton
Shackle W7/8 Hexagon head bolt M24 Working load 1.5ton
Here are the above three points.
Q. Can the hexagon head bolt be replaced?
A. Yes, use the SCM435 high strength hexagon bolt.
Q. Is it possible to hang it vertically?
A. As it is for horizontal suspension only, vertical suspension is not possible.
If you need vertical suspension, I recommend Multi Eyebolt･Multi Eyebolt Hybrid.
Q. Is there anything I should be careful about when lifting things using "YOKOBEE"?
A. Please set it up correctly and take your time lifting off.
Product Usage
This product can be used for
lifting secondary concrete products, molding dies, and heavy objects in sectors such as civil engineering, construction, shipbuilding, precision and machine tools, and transportation
.
This lifting attachment has been adapted for lifting operations from horizontally mounted bolts, allowing you to work
safely
even with JIS eye bolts that are normally dangerous to use for such operations.
With its small body and lightweight nature, this product has been designed with user-friendliness and higher work efficiency in mind.
