Quick Details
-
Model Number:
-
700
-
Pressure range:
-
0-2500 bar, 0-36250 psi
-
Connector:
-
M20X1.5 Male or NPT
-
Dimension:
-
120x45mm
-
Weight:
-
0.8kg
-
Accuracy:
-
0.05%F.S, 0.025%F.S optional
-
Certificate:
-
ISO/CE/exlosive proof
-
Feature:
-
high precision digital pressure gauge
-
Serial port:
-
RS232 modbus
-
Pressure units:
-
10 pressure units optional
-
Usage:
-
high precision for calibration
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
SPMK
-
Model Number:
-
700
-
Pressure range:
-
0-2500 bar, 0-36250 psi
-
Connector:
-
M20X1.5 Male or NPT
-
Dimension:
-
120x45mm
-
Weight:
-
0.8kg
-
Accuracy:
-
0.05%F.S, 0.025%F.S optional
-
Certificate:
-
ISO/CE/exlosive proof
-
Feature:
-
high precision digital pressure gauge
-
Serial port:
-
RS232 modbus
-
Pressure units:
-
10 pressure units optional
-
Usage:
-
high precision for calibration

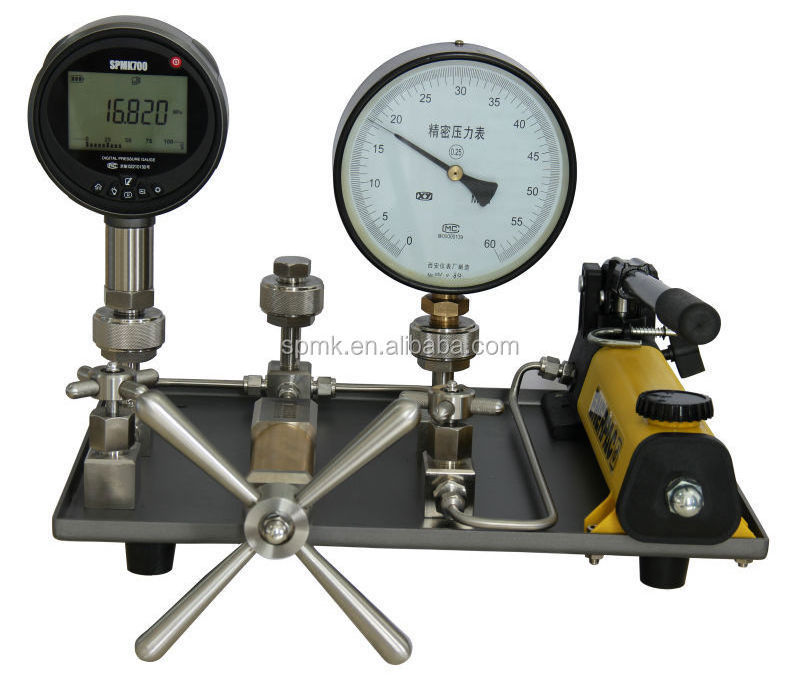

SPMK700 High Precision Digital Pressure Gauge Standard gauge for calibration.
Overview:
With advanced microprocessor technology and high-tech silicon pressure sensors, SPMK700 high precision digital pressure gauge provides an accurate, reliable and economic solution for wide range of pressure applications. Each silicon pressure sensor in gauges has been specially tested and screened before assembly.
Features:
MIN/MAX data recall
Pressure ranges to 36,250 psi (2500 bar)
Accuracy: ±0.05%FS, ± 0.1%FS , ±0.2%FS optional
Large, easy to read display with backlit, 5-digit resolution
Rechargeable li-ion or adapter
Optional 10 pressure units: Pa,Kpa,Mpa,mmHg,KFG/cm 2 ,cmH2O,mmH2O,PSI,mbar,bar
National explosion-proof certification approved. (Certificate#.: Exia II CT4Ga)
Technical Specifications:
|
Pressure Range |
0-36250 psi 0-2500 bar |
|
Accuracy |
0.2%F.S, 0.1% F.S, 0.05%F.S, 0.025%F.S |
|
10 Optional Units |
Pa,Kpa,Mpa,mmHg,KFG/cm 2 ,cmH2O,mmH2O,PSI,mbar,bar |
|
Connection |
M20x1.5 male or 1/4″NPT(or customized) |
|
Communication |
RS232 Modbus |
|
Power Supply |
li-ion battery or adapter |
|
Environmental Temperature |
0~122°F (0~ 50°C) |
|
Environmental Relative humidity |
≤ 95%R.H |
|
Atmospheric Pressure |
0.86~1.01 bar (86~101kpa) |
|
Overall Dimensions |
120x45 mm |
|
Net Weight |
0.7kg |
|
CE/ISO Approved, Explosion-proof Certificate |
|
|
Company website: www.bestcalibrator.com |
|
About our company:Beijing SPAKE Technology Co.,Ltd:
We are a perfessional manufacturer of pressure/temperature calibration instrument with 18 years experience in China and registered capital of 33.8 million yuan.Our main products are pressure calibrator,precision pressure gauge,pressure testing pump,multifunction process calibrator.temperature calibrator dry block. We got more than 10 utility model patents in 2009, and all products supporting test system software have got the software copyright certificate. In 2006, Our company passed the ISO9001: 2000 quality inspection.in 2010, most products have obtained CE certificate and Explosion-Proof Certificate.
So far, the SPMK series products have been widely used in military, electric power, petroleum, chemical, metallurgy, railway, metering, pharmaceutical, food and other industries in China. Some of the products have been exported to USA and Middle-East Countries. With the increasing of users, we should insist on customer value, abide by the corporate philosophy of Accurate calibration,Perfect Service. With a grateful heart , we are making SPMK a famous brand worldwide!
