Quick Details
-
Span:
-
8m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Zlin
-
Weight (KG):
-
2338 kg
-
Product Name:
-
5 Ton Ld Electric Single Girder Overhead Crane
-
Lifting mechanism:
-
Electric Wire Rope Hoist, Overhead Travelling Crane
-
Crane type:
-
Single Girder Box, Overhead Travelling Crane
-
Control method:
-
Ground Control+Remote Control
-
Power Source:
-
3 Phase 380V 50hz/Custmized, Overhead Travelling Crane
-
Working Temperature:
-
10 ~45, Overhead Travelling Crane
-
Color:
-
Clients' Requirments, Overhead Travelling Crane
-
Lifting speed:
-
0~20m/min, Overhead Travelling Crane
-
Motor:
-
Chinese Famous Brand, Overhead Travelling Crane
-
Cross speed:
-
2-20 M/min, Overhead Travelling Crane
Quick Details
-
Max. Lifting Height:
-
8 m
-
Marketing Type:
-
Hot Product 2022
-
Max. Lifting Load:
-
6.25 ton
-
Span:
-
8m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Zlin
-
Weight (KG):
-
2338 kg
-
Product Name:
-
5 Ton Ld Electric Single Girder Overhead Crane
-
Lifting mechanism:
-
Electric Wire Rope Hoist, Overhead Travelling Crane
-
Crane type:
-
Single Girder Box, Overhead Travelling Crane
-
Control method:
-
Ground Control+Remote Control
-
Power Source:
-
3 Phase 380V 50hz/Custmized, Overhead Travelling Crane
-
Working Temperature:
-
10 ~45, Overhead Travelling Crane
-
Color:
-
Clients' Requirments, Overhead Travelling Crane
-
Lifting speed:
-
0~20m/min, Overhead Travelling Crane
-
Motor:
-
Chinese Famous Brand, Overhead Travelling Crane
-
Cross speed:
-
2-20 M/min, Overhead Travelling Crane

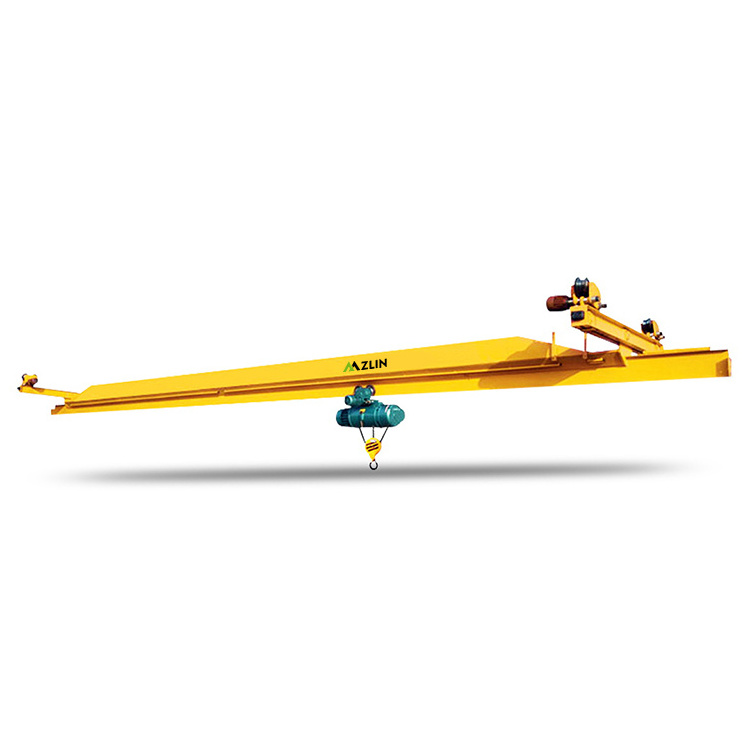

Control Remoto 5 Ton Ld Electric Single Girder Overhead Crane
LD remote crane single girder travelling bridge overhead crane
*
LD model single girder overhead crane
is characterized by more reasonable structure and higher strength steel as a whole.
* Used together with CD1 model electric hoist as a complete set, it is a light duty crane with a capacity 1 ton ~ 32 tons. The span is 7.5m~ 31.5m. Working grade is A3~A4.
* This product is widely used in plants, warehouse, material stocks to lift goods. It is prohibited to use the equipment in the combustible, explosive or corrosive environment.
* This product has two operational methods, ground or operational room which has open model closed model and can be installed on the left or right side according to the practical situation.
| crane travelling mechianism | moving speed (m/min) | 2--20 |
| power (KW) | 0.8kw*2 | |
| hoist travelling mechanism | moving speed (m/min) | 2--20 |
| power (KW) | 0.8kw*1 | |
| lifting mechanism | hoist | MD |
| capacity (t) | 5 | |
| lifting height | 6.5 | |
| overall data | rail width | 37--70 |
| wheel load | 5--29.2 | |
| total power | 9.9 |
If you need more products or information, please send an inquiry
1. New national standard Q235B and Q355B
2.Trolley rail is made of high strength hot rolled flat steel
3. Epoxy zinc-rich painting for one bottoms and two sides of 120μm thick, to achieve a long lifespan, beautiful appearance and good luster.
4. Forged hook, wide throat opening and slip resistant safety hook ensure the safety and efficiency.
5.The girder and end beam are connected together by high strength bolts to ensure the structure strength and precision of the whole machine.
6. The end beams are equipped with flat wheel or double rim wheels, anti-friction bearings, buffer blocks and derailment preventing end plate.
