12V/24V 160A Dual Battery Isolator, Automatic Charge Isolator Battery Separator for Car, Van, RV, Vehicle

12V/24V 160A Dual Battery Isolator, Automatic Charge Isolator Battery Separator for Car, Van, RV, Vehicle

FOB Reference Price: Get Latest Price

≥4 Pieces

US $59

≥100 Pieces

US $49

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Koersted

Model Number:: KBS-160

Package Weight:: 0.5kg

Voltage Application:: for both 12V/24V

Rated Current:: 160A (Continuous) 480A ( peak 250ms)

Waterproof:: Sealed

CERTIFICATE:: CE, RoHs, IATF 16949

MOQ:: 4PCS

Quick Details

OE NO.:: KBS-160

Warranty:: 1 Years

Place of Origin:: Zhejiang, China

Brand Name:: Koersted

Model Number:: KBS-160

Package Weight:: 0.5kg

Voltage Application:: for both 12V/24V

Rated Current:: 160A (Continuous) 480A ( peak 250ms)

Waterproof:: Sealed

CERTIFICATE:: CE, RoHs, IATF 16949

MOQ:: 4PCS

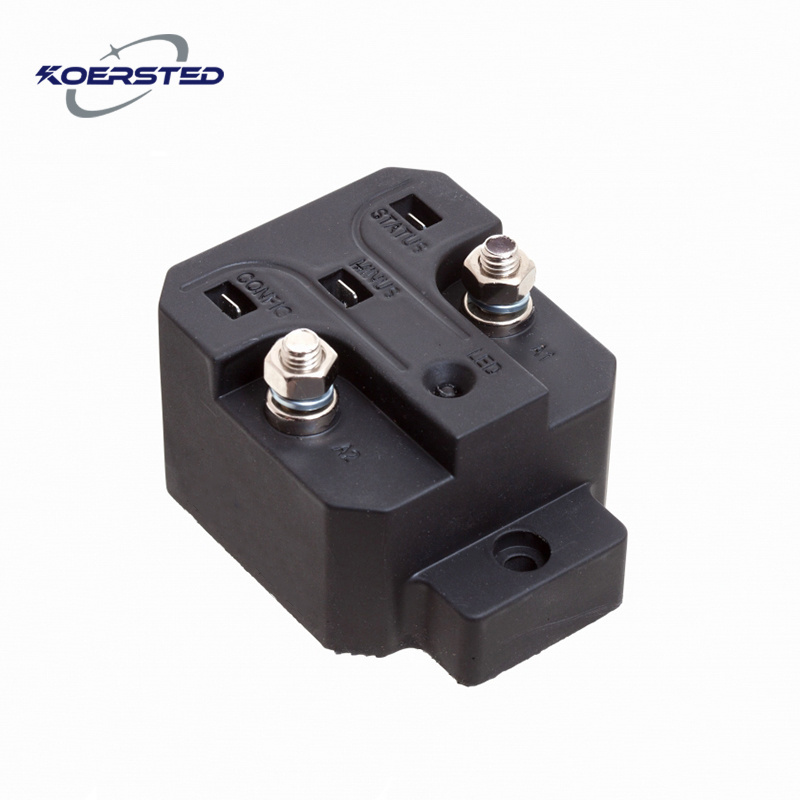

KBS-160 Dual Battery Isolator

- Microprocessor controlled, dual sensing

- Easy to install – does not require changing the existing circuit of the alternator

- Potted, waterproof, sealed unit

- Low standby current

- Automatic detection of 12 or 24 VDC systems

- 160 Amp continuous rated, 480 Amp peak (250 msec)

- Monitoring of relay activation by external LED

- Over voltage protection

- CE/RoHS/IATF 16949

Features

The ACR-160 combines battery banks for charging and isolates them when charging has stopped. It provides priority for charging only the starter battery first and protects from excessive discharging of the starter battery.

The Automatic Charge Isolator is also referred to as a battery separator, battery isolator or an automatic charging relay.

Specifications

Input: 12/24 VDC
Output: 12/24 VDC
Amps: 160
Item Dimensions: 4.2 x 2.9 x 2.3 (in)
Package Dimensions: 10.67 x 7.34 x 5.84
Item Weight: 0.5 (kg)
Package Weight: 0.6 (kg)

Specification
Purpose	for retrofit/upgrade
Condition	New
OE NO.	KBS-160
Warranty	1Years
Place of Origin	China
	Zhejiang
Model Number	KBS-160
Car Make
Package Weight	0.5kg
Voltage Application	for both 12V/24V
Rated Current	160A (Continuous) 480A ( peak 250ms)
Waterproof	Sealed
