convenient.Computer program control system supports English operation interface.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
610*500*1330mm
-
Weight:
-
70 KG
-
Product name:
-
cold glue system
-
Glue type:
-
Cold Glue
-
Function:
-
folder gluer
Quick Details
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
nantong
-
Dimension(L*W*H):
-
610*500*1330mm
-
Weight:
-
70 KG
-
Product name:
-
cold glue system
-
Glue type:
-
Cold Glue
-
Function:
-
folder gluer
Product description
It is a glue spray program control system equipped with a folder gluer. It can be flexibly installed on the folder gluer according to the individual requirements of the product, breaking through the structure and function of the original folder gluer, realizing precise dispensing and producing more types of boxes. The machine uses cold glue glue. The machine runs at high speed, sprays accurately, can be independently adjusted, operates cleanly, and saves glue. Simple and Convenient to Operate.
performance characteristics
* Precise spray glue. It has the function of precise glue spraying at high speed, and the accuracy is plus or minus 1mm.
* Independent regulation. Each nozzle can individually adjust the amount of glue through the knob, and switch the dot and line freely.
* Operation is clean. The nozzle is completely broken, no glue leaks, and no glue hanging.
* Save glue. On the premise of ensuring the production quality, the glue can be saved to the greatest extent.

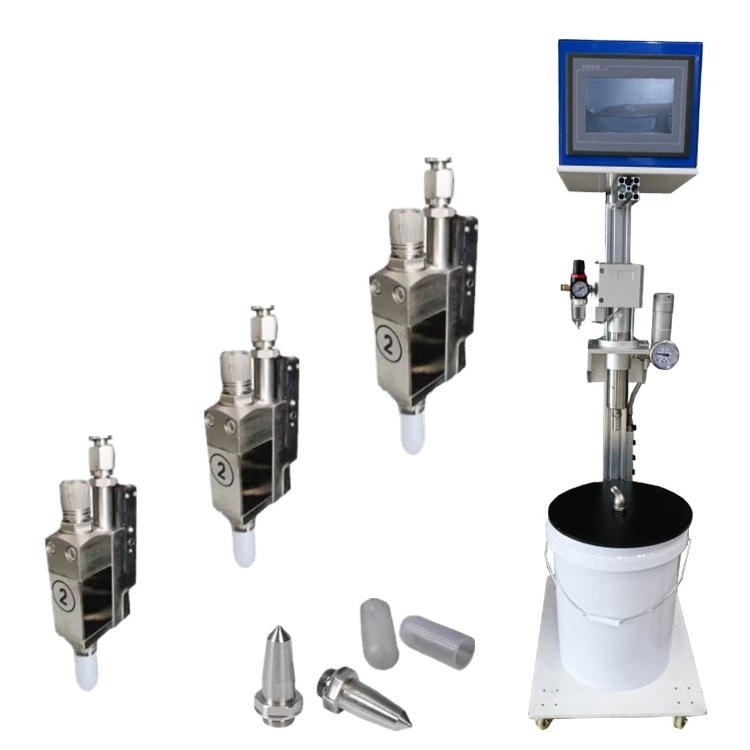

Product structure
Parts Introduction
convenient.Computer program control system supports English operation interface.
medium-viscosity water-based aghesive.
Glue pipe joints
Parameter
|
Maximum working frequency
|
500 points/sec
|
|
Maximum speed
|
300m/min
|
|
Spray precision
|
±1mm speed within 100m/min
|
|
Pressure input
|
2-8Bar
|
|
Number of gun
|
1-6 optional
|
|
Glue
|
Cold glue
|
|
Voltage
|
AC 220V 50-60HZ
|
