Quick Details
-
Filling Accuracy:
-
99.5%
-
Voltage:
-
220/380V/415V
-
Place of Origin:
-
Shanghai
-
Brand Name:
-
YIMU
-
Dimension(L*W*H):
-
2500(L)*1000(W)*2000(H) mm
-
Weight:
-
800 KG
-
Suitable for cap diameter:
-
28-130mm
-
Suitable for bottle diameter:
-
30-150mm
-
filling accuracy:
-
>99.5%
-
capping accuracy:
-
>99.9%
-
filling type:
-
servo piston pump
-
capping type:
-
torsion
-
machine capacity:
-
20-40 Bottles/min
-
After-sales Service Provided:
-
Online support
-
Product name:
-
Bottle Filling Capping Labeling Machine
Quick Details
-
Machinery Capacity:
-
2000BPH
-
Packaging Material:
-
Wood
-
Filling Material:
-
Other, Oil, Juice
-
Filling Accuracy:
-
99.5%
-
Voltage:
-
220/380V/415V
-
Place of Origin:
-
Shanghai
-
Brand Name:
-
YIMU
-
Dimension(L*W*H):
-
2500(L)*1000(W)*2000(H) mm
-
Weight:
-
800 KG
-
Suitable for cap diameter:
-
28-130mm
-
Suitable for bottle diameter:
-
30-150mm
-
filling accuracy:
-
>99.5%
-
capping accuracy:
-
>99.9%
-
filling type:
-
servo piston pump
-
capping type:
-
torsion
-
machine capacity:
-
20-40 Bottles/min
-
After-sales Service Provided:
-
Online support
-
Product name:
-
Bottle Filling Capping Labeling Machine

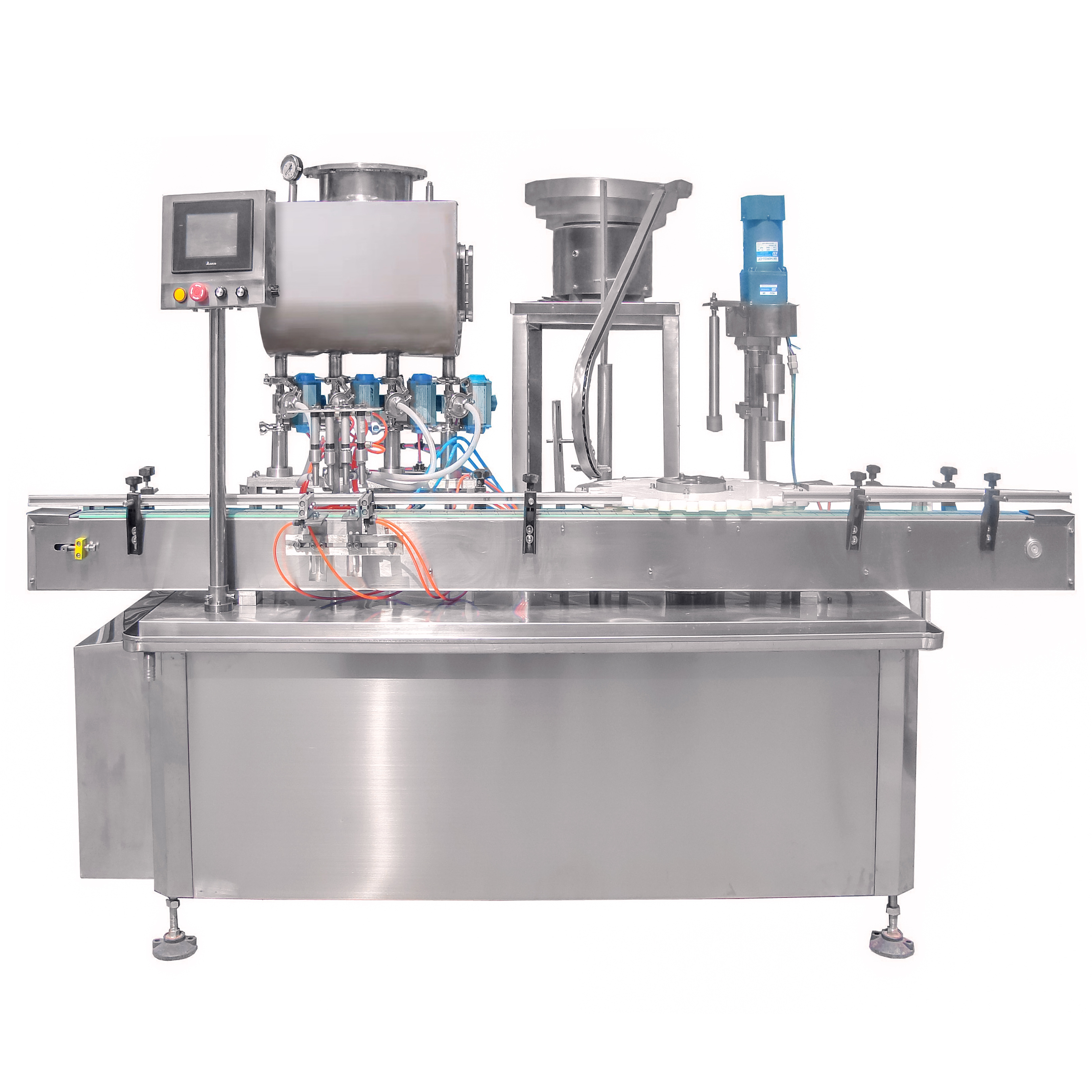

YIMU YMF4C1 Automatic Jam Sauce Canister Bottle Oil Honey Mineral Water Syrup Oral Liquid Jar Piston Filling Capping Machine
1. Adopt stainless steel pump in common use in special use to fill high precision, large range of adjusting dosage
2. Low level liquid receiver ,be convenient to clean
3. Not fill without bottle, automatic stop as no drop leak
4.F illing system has the function of shrinking ,no drop leak
5.Apply to fill various kinds of viscosity.
6.Filling nozzles is diving into bottle to fill and moving up slowly, avoid bubbling.
7.Filling and capping are in one body of bottle to the machine, economical
and low space possessing
8.The whole machine is designed according to requirements of GMP.
technical parameter:
|
Applied bottle height |
50-500mm |
|
Appled bottle diameter |
30-200mm |
|
Tolerance of filling quantity |
≤±1% standard filled quantity |
|
Yield of cap-rotating |
≥99.9% |
| Power supply |
380V/220V 50Hz |
|
Power
|
1.5KW |
|
Single machine noise |
≤70dB |
|
Weight |
approx.8 00kg |
|
Overall dimension |
(L*W*H)2500*1000*2000mm |
|
Production capacity(500ml) |
1200-1800bottles/hour |
