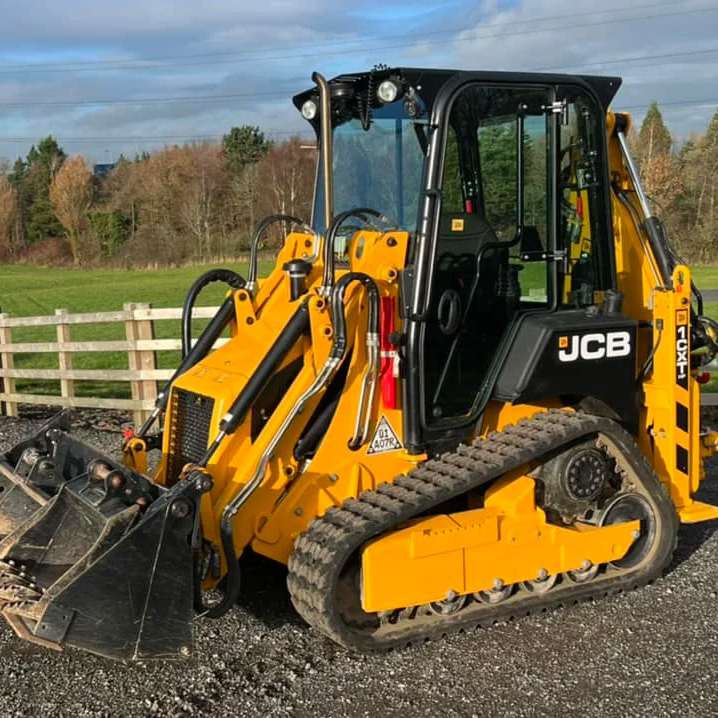

TECHNICAL DETAILS OF J.C.B 1CXT BACKHOE LOADER
Backhoe
|
Dig Depth
|
8.4 ft (2 m)
|
|
Load Height
|
7.8 ft (2 m)
|
|
Max dig depth
|
8.4 ft (2 m)
|
|
Reach From Swivel
|
11.1 ft (3 m)
|
Capacities
|
Cooling system
|
2.2 gal (8 l)
|
|
Engine oil with filter
|
2.6 gal (8 l)
|
|
Fuel Tank
|
11.9 gal (42 l)
|
Dimensions
|
Ground Clearance
|
0.6 ft (0 m)
|
|
Height to Top of Suspended Cab
|
7.4 ft (2 m)
|
|
Transport Length
|
10.9 ft (3 m)
|
|
Transport Width
|
4.7 ft (1 m)
|
|
Wheelbase
|
3.6 ft (1 m)
|
Electrical System
|
Alternator
|
50
|
|
Battery
|
72A/hour
|
|
Front working lights
|
2 adjustable
|
|
Gauges
|
Fuel Level, Hour meter
|
|
Pre-wire
|
Beacon
|
|
Rear working lights
|
2 adjustable
|
Engine
|
Aspiration
|
Natural
|
|
Displacement
|
134.3 cu in (0 m)
|
|
Emissions Certification
|
Stage EC Stage IIIA
|
|
Engine Model
|
104-22
|
|
Fuel Type
|
Replaceable cartridge plus water/sediment separator prefilter
|
|
Gross Power
|
50 hp (37 kw)
|
|
Net Max Torque
|
99.6 lbs/ft
|
|
Net Power
|
47 hp (35 kw)
|
|
Number of Cylinders
|
4
|
|
Power Measured @
|
2800 rpm
|
|
Rated engine speed
|
2800 rpm
|
|
Torque Measured @
|
2000 rpm
|
Hydraulic System
|
Pump Flow Capacity
|
11.9 gal/min (42 l/min)
|
|
Relief Valve Pressure
|
3000 psi
|
Loader
|
Bucket Breakout Force
|
5179 lbs (2,349 kg)
|
|
Bucket Width
|
56.3 in (142 cm)
|
|
Clearance at Max Dump Height
|
6.9 ft (2 m)
|
|
Dig Depth
|
2 in (5 cm)
|
|
Dump height
|
6.9 ft (2 m)
|
|
Lift Capacity
|
1345 lbs (610 kg)
|
|
Load over height
|
8.3 ft (2 m)
|
|
Reach at Max Dump Height
|
1 ft (0 m)
|
Operating Specifications
|
Cooling System Fluid Capacity
|
2.2 gal (8 l)
|
|
Fuel Capacity
|
11.9 gal (42 l)
|
|
Hydraulic System Fluid Capacity
|
11.9 gal (42 l)
|
|
Oil System Fluid Capacity
|
1.4 gal (4 l)
|
|
Operating Voltage
|
12 V V
|
|
Operating Weight 4wd
|
6150 lbs (2,790 kg)
|
|
Tire Size Front - 2wd / 4wd
|
7x15
|
Tires
Transmission
|
Max Speed
|
6.9 mph (10 kph)
|
|
Max Speed - Reverse
|
6.9 mph (10 kph)
|
|
Number of Forward Gears
|
1
|
|
Number of Reverse Gears
|
1
|
|
Transmission Type
|
Hydrostatic
|
