Quick Details
-
Product Name:
-
Water Flow Sensor YF-G21
-
External threads:
-
1/2"
-
Flow speed:
-
1-30L/min
-
Insulation resistance:
-
≥ 100MΩ
-
Starting pressure:
-
1Mpa
-
Hydrostatic pressure testing:
-
≤ 1.75Mpa
-
Min rated working voltage:
-
DC5V-24V
-
Max operating current:
-
15mA (DC 5V)
-
Working voltage range:
-
DC 5~24V
-
Temperature:
-
25 ~ +80 °C
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Ni-0102
-
Model Number:
-
YF-G21
-
Product Name:
-
Water Flow Sensor YF-G21
-
External threads:
-
1/2"
-
Flow speed:
-
1-30L/min
-
Insulation resistance:
-
≥ 100MΩ
-
Starting pressure:
-
1Mpa
-
Hydrostatic pressure testing:
-
≤ 1.75Mpa
-
Min rated working voltage:
-
DC5V-24V
-
Max operating current:
-
15mA (DC 5V)
-
Working voltage range:
-
DC 5~24V
-
Temperature:
-
25 ~ +80 °C

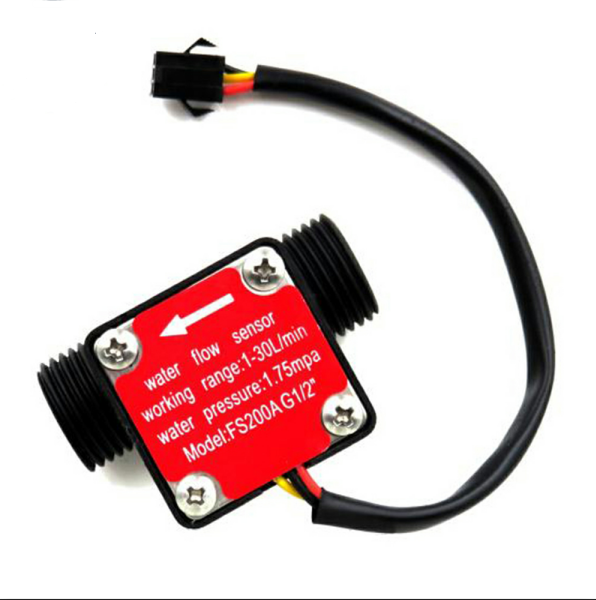

SEA YF-G21Flowmeter G1/2 1-30L/min Water Flow Sensor
Product Features:
Mainly used for water testing, water cooling system
Application: Water heaters, credit card machines, water vending machine, flow measurement device
Flow speed: 1-30L/min
Insulation resistance: ≥ 100MΩ
Starting pressure: 1Mpa
Hydrostatic pressure testing: ≤ 1.75Mpa
The lowest rated working voltage: DC5V-24V
Maximum operating current: 15mA (DC 5V)
Working voltage range: DC 5~24V
Load capacity: ≤ 10mA (DC 5V)
Use temperature: ≤ 80°C
Operating humidity range: 35%~90%RH (no frost)
Allowing pressure: 1.75Mpa
Temperature: -25 ~ +80 °C
External threads: 1/2"
Size: 54x22mm
Packing list: 1pc x Water Flow Sensor
