Quick Details
-
Filling Accuracy:
-
99.5%
-
Voltage:
-
110/220V;50/60HZ
-
Place of Origin:
-
Foshan, China
-
Brand Name:
-
Top Y Machinery
-
Dimension(L*W*H):
-
2000*1100*2200
-
Weight:
-
1500 KG
-
Product name:
-

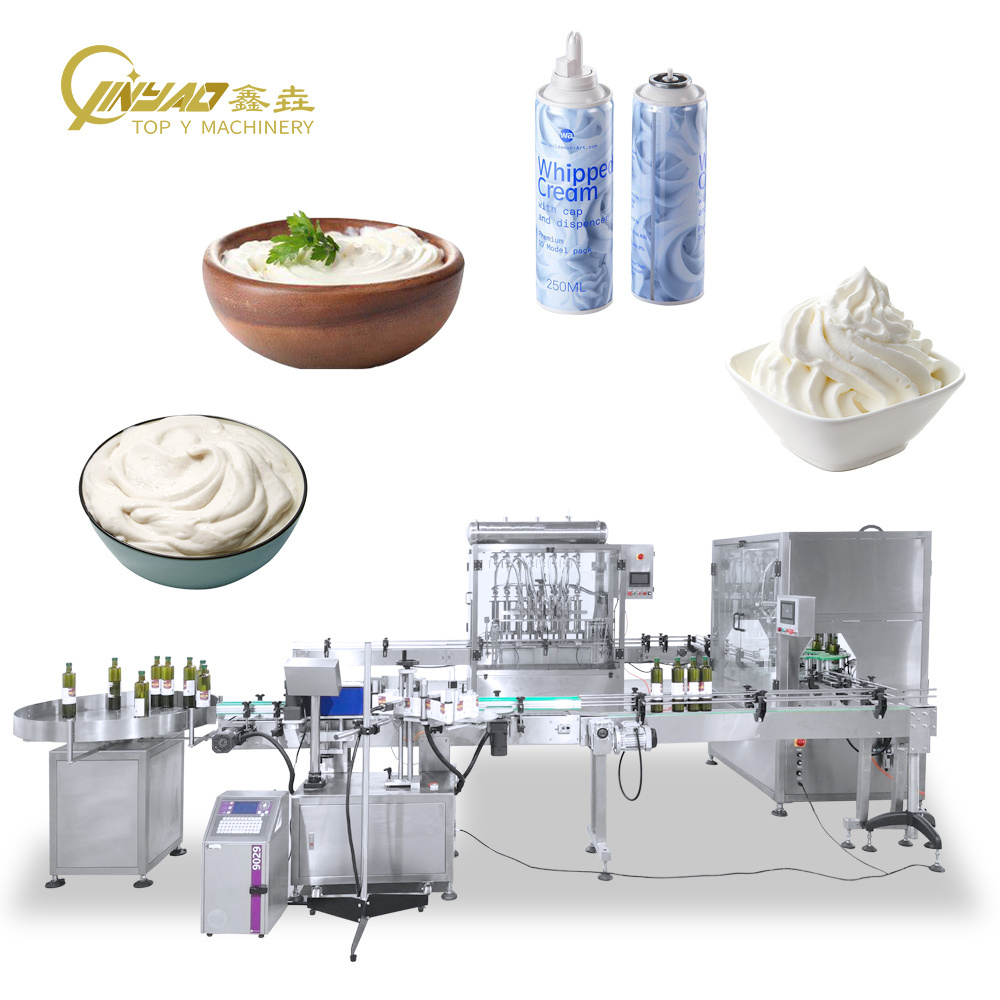

Liquid Filling System
-
Function:
-
Filling, capping, labeling
-
Bottle type:
-
PET Plastic Bottle Glass Bottle and so on.
-
Filling speed:
-
2000BPH
-
Certification:
-
CE,TUV and ISO
-
Control:
-
PLC+ Touch Screen
-
Filling products:
-
beverages, wine, cosmetic, oil etc
-
Filling range:
-
100-1000ml
-
Accept Customized:
-
Yes
-
After-sales Service Provided:
-
Video Technical Support 24 hour Online Support
Quick Details
-
Machinery Capacity:
-
20000BPH
-
Packaging Material:
-
Plastic, Metal, Glass, Wood
-
Filling Material:
-
Beer, Milk, Water, Oil, Juice
-
Filling Accuracy:
-
99.5%
-
Voltage:
-
110/220V;50/60HZ
-
Place of Origin:
-
Foshan, China
-
Brand Name:
-
Top Y Machinery
-
Dimension(L*W*H):
-
2000*1100*2200
-
Weight:
-
1500 KG
-
Product name:
-
Liquid Filling System
-
Function:
-
Filling, capping, labeling
-
Bottle type:
-
PET Plastic Bottle Glass Bottle and so on.
-
Filling speed:
-
2000BPH
-
Certification:
-
CE,TUV and ISO
-
Control:
-
PLC+ Touch Screen
-
Filling products:
-
beverages, wine, cosmetic, oil etc
-
Filling range:
-
100-1000ml
-
Accept Customized:
-
Yes
-
After-sales Service Provided:
-
Video Technical Support 24 hour Online Support
Products Description
|
Eight Heads Piston Filler
|
|
|
|
|
||||
|
Model
|
TOPY-8H
|
|
|
|
||||
|
Dimension
|
2000(L)x1100(W)x2200(H)mm
|
|
|
|
||||
|
Filling head
|
8
|
|
|
|
||||
|
Capacity
|
2000B/H
|
|
|
|
||||
|
Filling error
|
±0.5%
|
|
|
|
||||
|
Power
|
1.1KW
|
|
|
|
||||
|
Filling range
|
100-1000ml
|
|
|
|
||||
|
Air source
|
0.6-0.8Mpa clean and stable air source
|
|
|
|
||||
|
Power supply
|
110/220V;50/60HZ
|
|
|
|
||||
|
Automatic Capping Machine
|
|
|
|
|
||||
|
Model
|
TOPY-CP
|
|
|
|
||||
|
Sealing Type
|
Screw-Tight Plastic
|
|
|
|
||||
|
Speed(n/mm)
|
2000BPH
|
|
|
|
||||
|
Power Source
|
220V/380V,50HZ/60HZ
|
|
|
|
||||
|
Power Consumption(kw)
|
1.2
|
|
|
|
||||
|
Air consumption(min)
|
4.6kg×30Liter
|
|
|
|
||||
|
Machine Weight(kg)
|
600KG
|
|
|
|
||||
|
Labeling Machine
|
|
|
|
|
||||
|
Model
|
TOPY-LM130/130D
|
|
|
|
||||
|
Label Width (Max)
|
130mm
|
|
|
|
||||
|
Label Length
|
10-300mm
|
|
|
|
||||
|
Conveyor belt width
|
102mm
|
|
|
|
||||
|
Diameter of bottle (Max)
|
￠ 110mm
|
|
|
|
||||
|
Outside diameter of label roll
|
350mm
|
|
|
|
||||
|
Inside diameter of label roll
|
￠ 76mm
|
|
|
|
||||
|
Labeling speed (Max)
|
21m/min
|
|
|
|
||||
|
Accuracy of labeling
|
± 1mm
|
|
|
|
||||
|
Packed dimension
|
2200*1200*1200mm
|
|
|
|
||||
|
Packed weight
|
300kg
|
|
|
|
||||
