- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V
-
Power:
-
5.5KW/9HP/10HP/13HP/14HP
-
Dimension(L*W*H):
-
910*470*880MM
-
Weight:
-
178 KGS(392IBS)kg
-
Features:
-
10mm Adjustable depth
-
Engine:
-
Honda/Kohler/Siemens/Diesel
-
Driving:
-
manual push
-
Efficiency:
-
25-50㎡/h
-
Scarifying Mode:
-
up-down scarifying mode
-
Depth Control:
-
adjustable (0-10mm)
-
Drum Set:
-
1drum+90pcs blades+6pcs blade shafts
-
Color:
-
orange or yellow or OEM
-
Scarifying Drum:
-
replaceable blade
-
Application:
-
concrete or asphalt road
-
Certification:
-
CE
Quick Details
-
Working Depth:
-
0-10mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JIEHE
-
Voltage:
-
380V
-
Power:
-
5.5KW/9HP/10HP/13HP/14HP
-
Dimension(L*W*H):
-
910*470*880MM
-
Weight:
-
178 KGS(392IBS)kg
-
Features:
-
10mm Adjustable depth
-
Engine:
-
Honda/Kohler/Siemens/Diesel
-
Driving:
-
manual push
-
Efficiency:
-
25-50㎡/h
-
Scarifying Mode:
-
up-down scarifying mode
-
Depth Control:
-
adjustable (0-10mm)
-
Drum Set:
-
1drum+90pcs blades+6pcs blade shafts
-
Color:
-
orange or yellow or OEM
-
Scarifying Drum:
-
replaceable blade
-
Application:
-
concrete or asphalt road
-
Certification:
-
CE

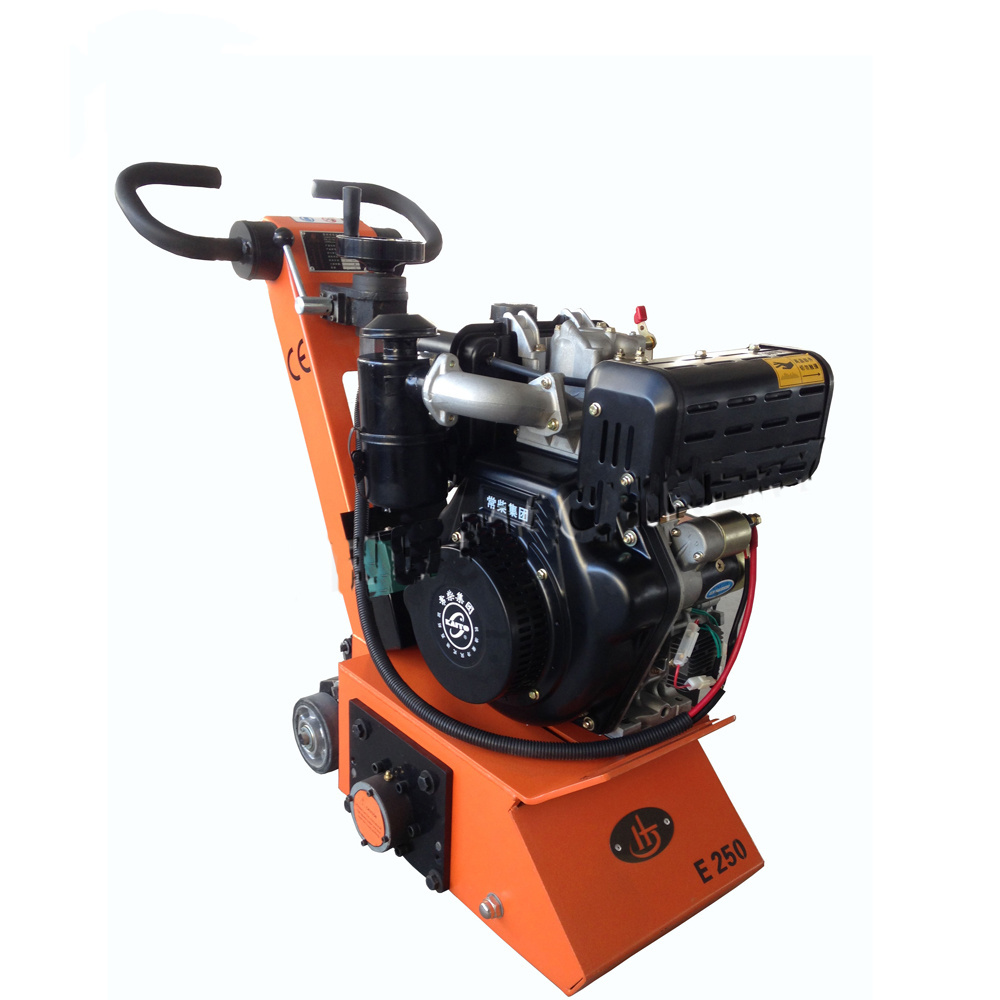

Construction Equipment Asphalt Remover Concrete Scraper Machine Concrete Scarifier Road Scarifying Machine
Jiehe concrete and milling m achine are used for small and meduim sized areas.The low centre of gravity affords a big silent running and ensure quick and even milling results.A tripled drum bearing and hardened cutter shafts make it particularly reliable.
Product detail
What's the Specifications ?
13HP Honda GX390 engine and super four or six bearings ;
Drum is heat treated specially;
Exclusive supply good quality cutter;
Drum can be replaced easily;
With a dust-proof device
Parameter
Model |
JHE-250 |
JHE-250E |
JHE-250K |
JHE-250D |
Power Source |
GX390 Honda/ GX270 |
Siemens Electrical motor |
Kohler CH440/ CH395 |
186F Diesel Gasoline engine |
Horse Power |
13HP/9HP |
7.5KW |
14HP/9.5HP |
10 HP |
Working width |
250mm |
250mm |
250mm |
250mm |
Working depth |
0-10mm |
0-10mm |
0-10mm |
0-10mm |
No. of shaft |
6pieces |
6pieces |
6pieces |
6pieces |
No. of cutter |
90pieces |
90pieces |
90pieces |
90pieces |
Power Drive |
Manual |
Manual |
Manual |
Manual |
Working area |
25-50 m2 / H |
25-50 m2 / H |
25-50 m2 / H |
25-50 m2 / H |
Net Weight |
178KG |
201KG |
132KG |
199KG |
L× W× H |
910×470×880mm |
910×470×880mm |
910×470×880mm |
910×470×880mm |
Drum Rotation |
Down cut (clock wise) |
|||
Milling mode |
downward cut |
|||
Depth Control |
Adjustable |
Other engines you can choose
JHE-250E
JHE-250K
JHE-250D
We have different styles
970mm(38") and 850mm(33.5")Height are Built for Your Choice
About our Drum and cuttrers
Why choose US ?
1.We are factory,direct factory price.
2.Picture and videos can be provide to you to show how to use the machine.
3.7*24 hours Serve :we treat our clients as friends.
4.High quality:we have strict quality control system and enjoy a good reputation in the world.
5. With more than 19 years manufacturing experiences.
What's our road scarifier machine used for ?
Our products are widely used in
- municipal conservation,
- road construction,
- building construction,
- flooring treatment(epoxy floor, wear-resistant floor)
- other fields.(remove traffic line, rutty of road and airport)
Our packaging is iron frame and carton generally.If customer have other requests, we will try to accommodate.
JHE-250 packaging dimensions(mm) is: 990*550*980.
30 sets 1 container normally.
