Quick Details
-
Place of Origin:
-
Henan, China
-
Control distance:
-
up to 100m
-
Speed:
-
single speed
-
Voltage:
-
AC 12/24/36/48/110/220/380V,DC 12/24/48V
-
Protection grade:
-
IP65 waterproof and dustproof grade
-
Shell material:
-
nylon and glass fiber
-
Service temperature:
-
- 30 ℃ ~ + 75 ℃
-
Warranty:
-
12months
-
Working frequency:
-
315 MHZ/433 MHZ
-
Weight:
-
2.5kg
-
Dimension:
-
34*23*12cm
Quick Details
-
Function:
-
Waterproof, LED indicator light, Anti shock
-
Brand Name:
-
Kcrane
-
Model Number:
-
SAGA1-L8B
-
Place of Origin:
-
Henan, China
-
Control distance:
-
up to 100m
-
Speed:
-
single speed
-
Voltage:
-
AC 12/24/36/48/110/220/380V,DC 12/24/48V
-
Protection grade:
-
IP65 waterproof and dustproof grade
-
Shell material:
-
nylon and glass fiber
-
Service temperature:
-
- 30 ℃ ~ + 75 ℃
-
Warranty:
-
12months
-
Working frequency:
-
315 MHZ/433 MHZ
-
Weight:
-
2.5kg
-
Dimension:
-
34*23*12cm
Product Description

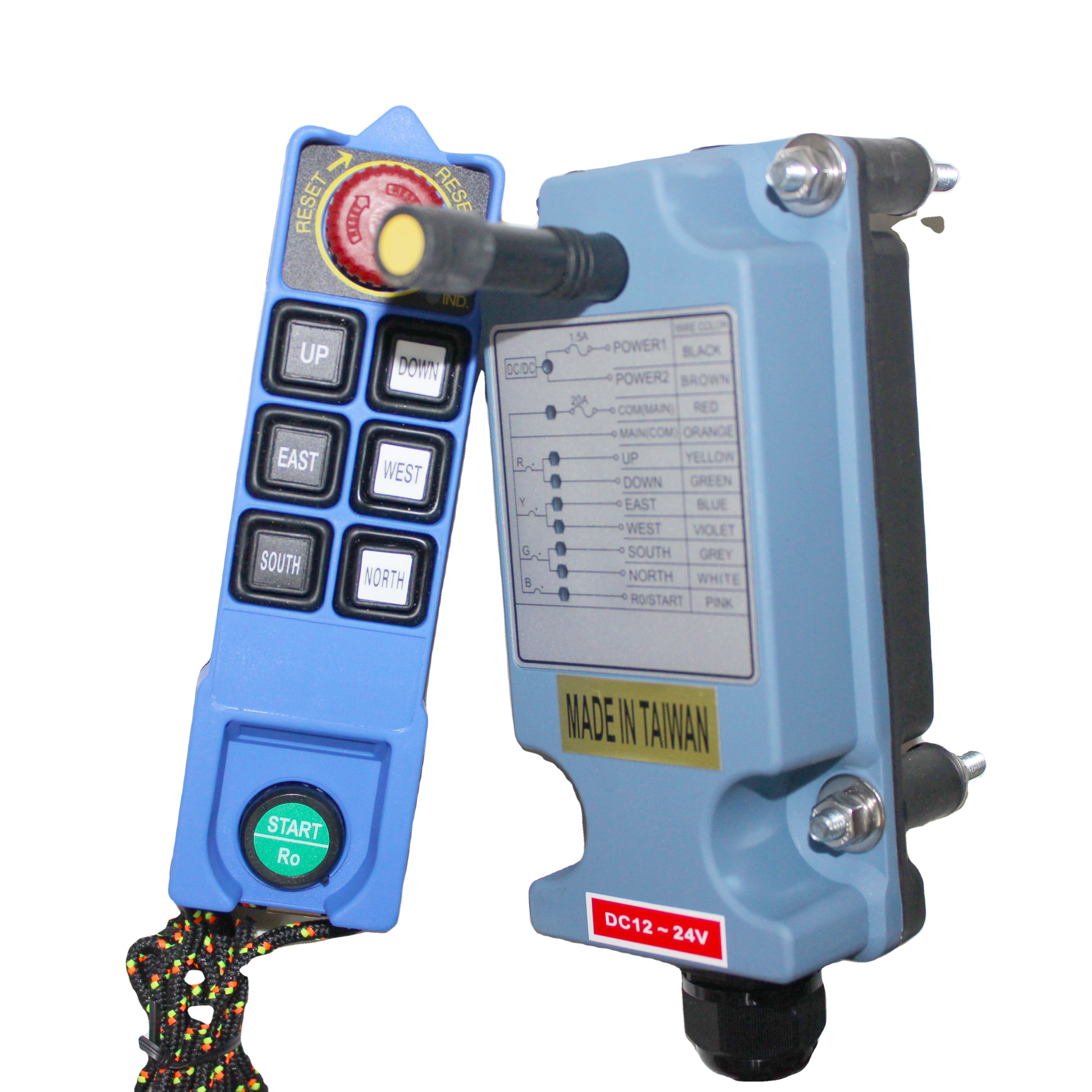

SAGA L8B crane industrial remote control universal radio remote transmitter & receiver
Widely applied for lifting equipment, construction machinery, cargo loading/unloading machines, water supply system, data transmission, the iron-smelting and steel-making, the automobile manufacturing, paper-making and chemical industry, steel structure processing, galvanization, shipbuilding, railroad, bridge, tunnel construction and other equipment and sites which can be worked by radio controls.
SAGA Series Remote Control
Detailed Images
|
Transmitter Specification
|
|
1. Dimensions: 163*49*45mm
|
|
2. Weight: 250g (with batteries)
|
|
3. Use two (AA size) alkaline batteries
|
|
4. The LED will flash red when the battery is low
|
|
5. Key stuck detection
|
|
6. Transmitting power ≤ 4mW
|
|
7. Power consumption: less than 10mA
|
|
Receiver Specification
|
|
1. Diemnsions: 161*74*52mm
|
|
2. Weight: 1100g (excluding cable)
|
|
3. Power: 24/48, 48/110, 48/220, 110/220, 220/380V AC. 12 ~ 24V DC.
|
|
4. Sensitivity: about - 105dbm
|
|
5. Shockproof design
|
|
6. Independent collinear: there are 4 independent collinear lines, including Up / Down, East / West, South / North, R0, etc
|
Standard Configuration
One transmitter
One receiver
One user manual
Packing&Shipping
The SAGA remote control SAGA1-L8B will be packed by carton box.
Our Advantages
why choose us?
1.Material is Glass-Fiber PA not plastic.
2.Buttons is ultra comfortable.
3. High quality relay prolong the service life of the remote control.
4.The cable is more safe and strong.
5.Label with laser marking Avoid the loss of important information.
