Quick Details
-
Return Force (kN):
-
200 kN
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KLT
-
Voltage:
-
220V/380V(Customized)
-
Dimension(L*W*H):
-
2980mm*1770mm*3350mm
-
Weight (T):
-
12 T
-
Model Number:
-
YH71-160T
-
Motor Power (kw):
-
18 kw
-
CNC or Not:
-
CNC
-
Power Source:
-
Hydraulic
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Customized
-
Power:
-
15 KW
-
Weight:
-
10300 KG
-
Keyword:
-
Hydryalic Press
-
Product name:
-

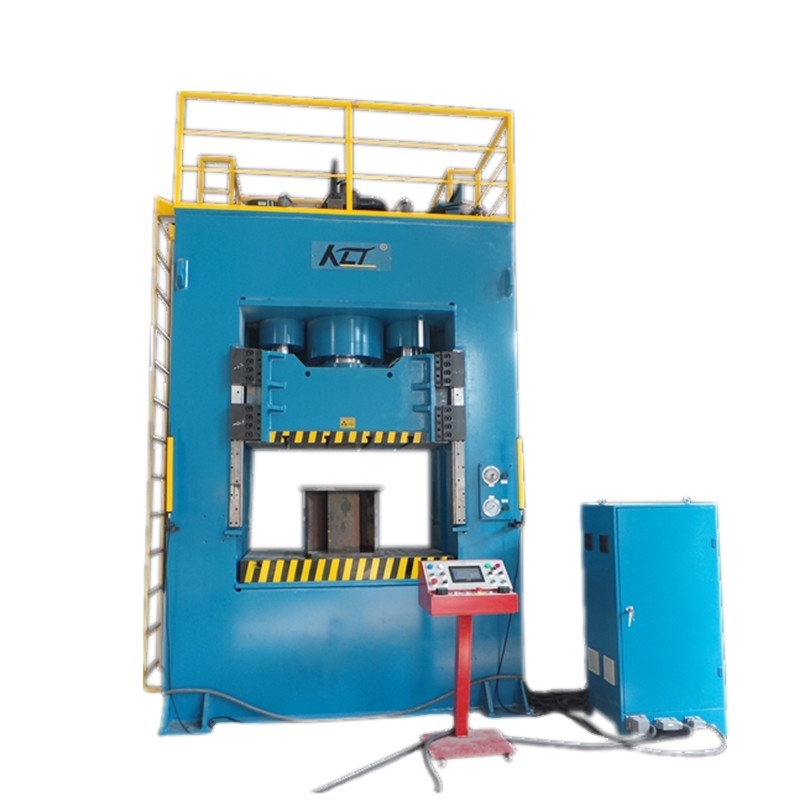

H frame hydraulic press
-
Function:
-
deep drawing
-
Type:
-
H-frame
Quick Details
-
Machine Type:
-
H Frame Hydraulic Press
-
Slide Stroke (mm):
-
700
-
Ejector Force (kN):
-
200
-
Return Force (kN):
-
200 kN
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KLT
-
Voltage:
-
220V/380V(Customized)
-
Dimension(L*W*H):
-
2980mm*1770mm*3350mm
-
Weight (T):
-
12 T
-
Model Number:
-
YH71-160T
-
Motor Power (kw):
-
18 kw
-
CNC or Not:
-
CNC
-
Power Source:
-
Hydraulic
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Color:
-
Customized
-
Power:
-
15 KW
-
Weight:
-
10300 KG
-
Keyword:
-
Hydryalic Press
-
Product name:
-
H frame hydraulic press
-
Function:
-
deep drawing
-
Type:
-
H-frame
Design&Development
Wuxi KLT attaches great importance to product development and design, has continuous technological innovation capabilities and rapid market response awareness, continuously improves process technology, optimizes design results, and strives to ensure customers' current needs and insights into their future hopes as much as possible, and do their best Meet or exceed customer expectations.
Products Description
1、the new generation of numerical control hydraulic press, the frame eight face guiding structure. Suitable technology, hot pressing for automotive interior parts.
2、Suitable for automobile roof, trunk, seat back-to-back, clothes rack, wheel shield, sunshade, hood heat insulation cushion and other parts.
3、servo motor with high precision oil pump drive segment control pressure, speed, exhaust.
4、PLC programming, touch screen display, control.
5、displacement, speed, pressure sensor precision control, arbitrary adjustment on the industrial touchscreen.
6、provide remote network services, machine automatic alarm, prompt failure and maintenance.
7、It is suitable for trimming and compound forming of automotive interior parts.
2、Suitable for automobile roof, trunk, seat back-to-back, clothes rack, wheel shield, sunshade, hood heat insulation cushion and other parts.
3、servo motor with high precision oil pump drive segment control pressure, speed, exhaust.
4、PLC programming, touch screen display, control.
5、displacement, speed, pressure sensor precision control, arbitrary adjustment on the industrial touchscreen.
6、provide remote network services, machine automatic alarm, prompt failure and maintenance.
7、It is suitable for trimming and compound forming of automotive interior parts.
Size Information
|
Interior part name
|
|
Car front wall
|
|
Luggage assembly
|
|
Spare cover
|
|
Wheel housing
|
|
|||||
|
Model Name
|
Unit
|
250T
|
300T
|
200T
|
300T
|
200T
|
300T
|
150T
|
200T
|
|||||
|
Nominal force
|
KN
|
2500
|
3000
|
2000
|
3000
|
2000
|
3000
|
1500
|
2000
|
|||||
|
Max.opening distance
|
mm
|
1400
|
1800
|
1800
|
1800
|
1200
|
1400
|
1600
|
1600
|
|||||
|
Hydraulic cylinder stroke
|
mm
|
1200
|
1600
|
1600
|
1600
|
1100
|
1200
|
1400
|
1400
|
|||||
|
Working desk size(L.R)
|
mm
|
1900
|
2000
|
1900
|
2600
|
1900
|
2400
|
2400
|
2600
|
|||||
|
Working desk size(F.B)
|
mm
|
1300
|
1400
|
1300
|
2200
|
1300
|
1800
|
1500
|
1500
|
|||||
|
Fsst down speed
|
mm/s
|
300
|
300
|
300
|
300
|
300
|
300
|
300
|
300
|
|||||
|
Speed of work
|
mm/s
|
10-30
|
10-30
|
10-30
|
10-30
|
10-30
|
10-30
|
10-30
|
10-30
|
|||||
|
Fast return speed
|
mm/s
|
150
|
150
|
150
|
150
|
150
|
150
|
150
|
150
|
|||||
|
Interior part name
|
|
Ceiling
|
|
Carpet
|
|
Seat back
|
|
Coat rack
|
|
|||||
|
Model Name
|
Unit
|
300T
|
500T
|
300T
|
400T
|
200T
|
300T
|
250T
|
300T
|
|||||
|
Nominal force
|
KN
|
3000
|
5000
|
3000
|
4000
|
2000
|
3000
|
2500
|
3000
|
|||||
|
Max.opening distance
|
mm
|
1600
|
1700
|
1600
|
1800
|
1500
|
2200
|
1400
|
1800
|
|||||
|
Hydraulic cylinder stroke
|
mm
|
1400
|
1500
|
1400
|
1500
|
1300
|
1500
|
1000
|
1600
|
|||||
|
Working desk size(L.R)
|
mm
|
3000
|
3400
|
2400
|
2400
|
2400
|
2400
|
2000
|
2400
|
|||||
|
Working desk size(F.B)
|
mm
|
2000
|
2000
|
1800
|
1800
|
1800
|
1800
|
1400
|
1800
|
|||||
|
Fsst down speed
|
mm/s
|
300
|
300
|
300
|
300
|
300
|
300
|
300
|
300
|
|||||
|
Speed of work
|
mm/s
|
10-30
|
10-30
|
10-30
|
10-30
|
10-30
|
10-30
|
10-30
|
10-30
|
|||||
|
Fast return speed
|
mm/s
|
150
|
150
|
150
|
150
|
150
|
150
|
150
|
150
|
|||||
Machine Diagram
Product Features
1. High efficiency and energy saving. The power consumption is 30%-50% more than that of ordinary motors.
2. low noise, noise can be controlled at around 60 decibels.
3. the working position, speed and pressure can be adjusted by infinitely.
4.Quick response, pressure and high repeatability.
5.high efficiency, multiple protection inside, low failure rate.
6.and 12 hours of continuous work do not require cooling oil temperature.
7.pipes and joints adopt SEA international standard to prevent oil leakage.
8.Adopt the button centralized control, (fixed range / fixed pressure) two control modes, (adjustment / automatic) two operation modes.
9.European CE standard hydraulic system and electrical safety IP54 grade.
2. low noise, noise can be controlled at around 60 decibels.
3. the working position, speed and pressure can be adjusted by infinitely.
4.Quick response, pressure and high repeatability.
5.high efficiency, multiple protection inside, low failure rate.
6.and 12 hours of continuous work do not require cooling oil temperature.
7.pipes and joints adopt SEA international standard to prevent oil leakage.
8.Adopt the button centralized control, (fixed range / fixed pressure) two control modes, (adjustment / automatic) two operation modes.
9.European CE standard hydraulic system and electrical safety IP54 grade.
