Quick Details
-
Product name:
-
RG6 Coaxial Cable
-
Conductor:
-
18AWG 1.02MM CCS/CU
-
Color:
-
Black White or other customized
-
Insulation:
-
Foam PE 4.6mm
-
Length:
-
100M/200M/305M
-
Jacket:
-
PVC 6.8mm
-
Shield Type:
-
Al Foil/Bonded+40-95% Braiding
-
Tri Shield:
-
Al Bonded+40-95% Braiding+AL Foil
-
Quad Shield:
-
Al Bonded+40-95% Braiding+AL Foil+40-95% Braiding
-
Application:
-
CATV CCTV
Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
RG6 Coaxial Cable
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
RG6 Coaxial Cable
-
Conductor:
-
18AWG 1.02MM CCS/CU
-
Color:
-
Black White or other customized
-
Insulation:
-
Foam PE 4.6mm
-
Length:
-
100M/200M/305M
-
Jacket:
-
PVC 6.8mm
-
Shield Type:
-
Al Foil/Bonded+40-95% Braiding
-
Tri Shield:
-
Al Bonded+40-95% Braiding+AL Foil
-
Quad Shield:
-
Al Bonded+40-95% Braiding+AL Foil+40-95% Braiding
-
Application:
-
CATV CCTV
Product Paramenters
RG SERIES RG59 RG58 RG6 RG11 COAXIAL CABLE
> Insulation material: high density polyethylene, raw material imported from Korea.
> Insulation: Main Color - White/Black/Yellow.
> Insulation requirements: meets the requirements of GB/T 13849.1-93.
> Sheath Material:Special Sheath Material for Medium Density Polyethylene Cable, Sheath Color - Black.
> Minimum thickness of sheath: 1.0mm.
> Insulation Outer Diameter: 2.2±0.02 mm.
> Mechanical and physical properties of cable sheath: in accordance with YD/T 1019-2001 standard.
> Electrical performance: in accordance with YD/T 1019-2001 standard.
> The quantity and material of braided net: 96 braided pure copper (96-128 braided with copper net, aluminium-magnesium wire, copper-clad aluminium).
> Service life: In the case of non-man-made or geological disasters, the service life can reach 50 years.
> Insulation: Main Color - White/Black/Yellow.
> Insulation requirements: meets the requirements of GB/T 13849.1-93.
> Sheath Material:Special Sheath Material for Medium Density Polyethylene Cable, Sheath Color - Black.
> Minimum thickness of sheath: 1.0mm.
> Insulation Outer Diameter: 2.2±0.02 mm.
> Mechanical and physical properties of cable sheath: in accordance with YD/T 1019-2001 standard.
> Electrical performance: in accordance with YD/T 1019-2001 standard.
> The quantity and material of braided net: 96 braided pure copper (96-128 braided with copper net, aluminium-magnesium wire, copper-clad aluminium).
> Service life: In the case of non-man-made or geological disasters, the service life can reach 50 years.
|
Model
|
RG59
|
RG58
|
RG6
|
RG11
|
|
Conductor
|
CCS/CU
|
CCS/CU
|
CCS/CU
|
CCS/CU
|
|
Conductor Dia
|
(0.81±0.02)mm
|
19*(0.2±0.01)mm
|
(1.02±0.02)mm
|
(1.63±0.02)mm
|
|
Dielectric
|
Foam PE
|
Foam PE
|
Foam PE
|
Foam PE
|
|
Dielectric Dia
|
3.66mm
|
2.95mm
|
4.57mm
|
7.11mm
|
|
Shielding
|
ALfoil+AI brading
|
BC/TC brading
|
ALfoil+AI brading
|
ALfoil+AI brading
|
|
1st Shielding Dia
|
3.90mm
|
\
|
4.90mm
|
7.52mm
|
|
2nd Shielding Dia
|
4.12mm
|
\
|
5.12mm
|
7.80mm
|
|
Jacket
|
PVC/PE
|
PVC/PE
|
PVC/PE
|
PVC/PE
|
|
Jacket Dia
|
6.30mm
|
4.95mm
|
6.90mm
|
10.16mm
|
Product Details
Packing&Shipping
Production Flow

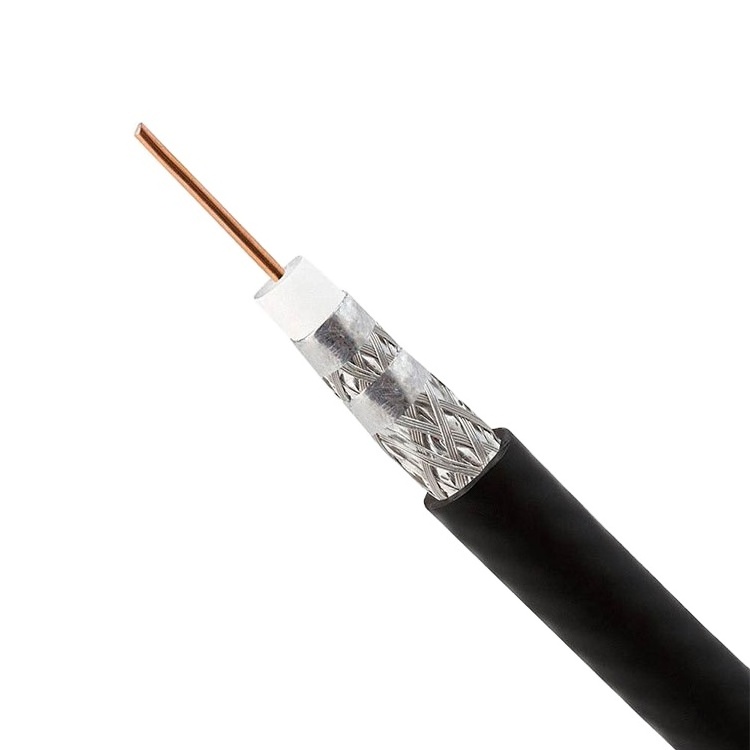

![[Softel]High quality 75ohm communication cable rg6 coaxial cable quad shield rg6](https://cdn.bestsuppliers.com/seo_products_img/softel/9b33cf967c8d36ea9f20316f70c3b7ae.jpg!/rotate/180/sq/300)
