Quick Details
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
lock making machine
-
Product name:
-
0.5mm 1.2mm pittsburgh lock making machine
-
Application:
-
air duct making
-
Type:
-
Semi Automatic
-
Color:
-
Customizable
-
Usage:
-
duct making
-
Voltage:
-
220V/380V
-
Material:
-
steel
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
AOXUANZG
-
Weight (KG):
-
450
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
lock making machine
-
Product name:
-
0.5mm 1.2mm pittsburgh lock making machine
-
Application:
-
air duct making
-
Type:
-
Semi Automatic
-
Color:
-
Customizable
-
Usage:
-
duct making
-
Voltage:
-
220V/380V
-
Material:
-
steel

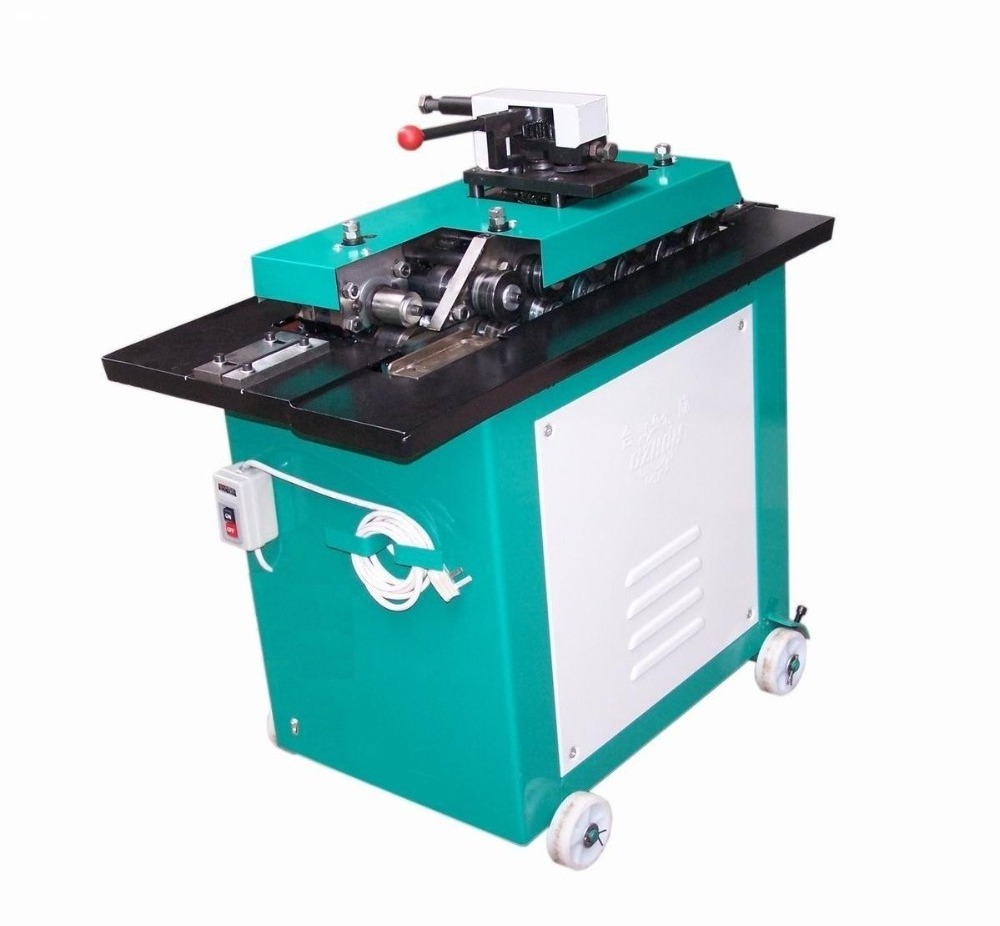

low price sheet metal Pittsburgh lock forming machine,hvac locking former machine
AOXUANZG Nip machine/Lock forming machine is the necessary machine for making air duct.It is widely used for seam air duct and joint the plate sheet.
This Nip machine/Lock forming machine have simple structure and light weight,anybody can operate it easily.
Nip machine/Locking forming machine combine with our TDF flange forming machine,Bending grooving machine,TDF hand folding machine and Shearing machine can be an simple air duct production line.
Our machine advantage:we use the Ball Bearing instead of Needle bearing,it can ensure that use throughout the day.And the Ball bearing also have longer life.
1.Nip the mouth machine (namely windlass bone machine) is the most general traditional wind tube manufacture machinery.
2.the customer may according to needs to change must roll over the windlass, achieved one machine many energy.
3.the many kinds of coordinations, the compatibility is extremely broad. This machine weight light,the migration is convenient, most suits the scene construction.
|
Elbow joint angle lock forming machine
|
||||
|
Model
|
Power
|
Plate thickness
|
Weight
|
Dimension
|
|
(kw)
|
(mm)
|
(kg)
|
(mm)
|
|
|
SA-12B
|
1.5
|
0.5-1.2
|
210
|
1040*580*820
|
|
SA-15B
|
2.2
|
0.8-1.5
|
230
|
1200*700*1000
|
|
Multifunction lock forming machine
|
||||
|
Model
|
Power
|
Plate thickness
|
Weight
|
Dimension
|
|
(kw)
|
(mm)
|
(kg)
|
(mm)
|
|
|
SA-12HB
|
1.5
|
0.5-1.2
|
230
|
1040*580*820
|
|
SA-15HB
|
2.2
|
0.8-1.5
|
250
|
1200*700*1000
|
|
Joint angle lock forming machine
|
||||
|
Model
|
Power
|
Plate thickness
|
Weight
|
Dimension
|
|
(kw)
|
(mm)
|
(kg)
|
(mm)
|
|
|
SA-12
|
1.5
|
0.5-1.2
|
195
|
1040*580*820
|
|
SA-15
|
2.2
|
0.8-1.5
|
230
|
1200*700*1000
|
|
Joint angle insert lock forming machine
|
||||
|
Model
|
Power
|
Plate thickness
|
Weight
|
Dimension
|
|
(kw)
|
(mm)
|
(kg)
|
(mm)
|
|
|
SA-12H
|
1.5
|
0.5-1.2
|
215
|
1040*580*820
|
|
SA-15H
|
2.2
|
0.8-1.5
|
230
|
1200*700*1000
|
|
Single lock forming machine
|
||||
|
Model
|
Power
|
Plate thickness
|
Weight
|
Dimension
|
|
(kw)
|
(mm)
|
(kg)
|
(mm)
|
|
|
SB-12
|
1.5
|
0.5-1.2
|
195
|
1040*580*820
|
|
SB-15
|
2.2
|
0.8-1.5
|
220
|
1100*580*1000
|
