Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ONPOW
-
Model Number:
-
GQ16F-10E/R/12V/S
-
Material:
-
stainless steel
-
Terminal type:
-
Pin Terminal
-
Function:
-
Momentary 1NO
-
Lamp color:
-
Red Green Yellow Blue White double color
-
Head shape:
-
Flat head
-
Illumination:
-
Ring illuminated
-
Certificate:
-
CE RoHS
-
Brand:
-
ONPOW
-
Type:
-
metal push button
Quick Details
-
Protection Level:
-
IP65(IP67)
-
Max. Current:
-
2A
-
Max. Voltage:
-
36VDC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ONPOW
-
Model Number:
-
GQ16F-10E/R/12V/S
-
Material:
-
stainless steel
-
Terminal type:
-
Pin Terminal
-
Function:
-
Momentary 1NO
-
Lamp color:
-
Red Green Yellow Blue White double color
-
Head shape:
-
Flat head
-
Illumination:
-
Ring illuminated
-
Certificate:
-
CE RoHS
-
Brand:
-
ONPOW
-
Type:
-
metal push button

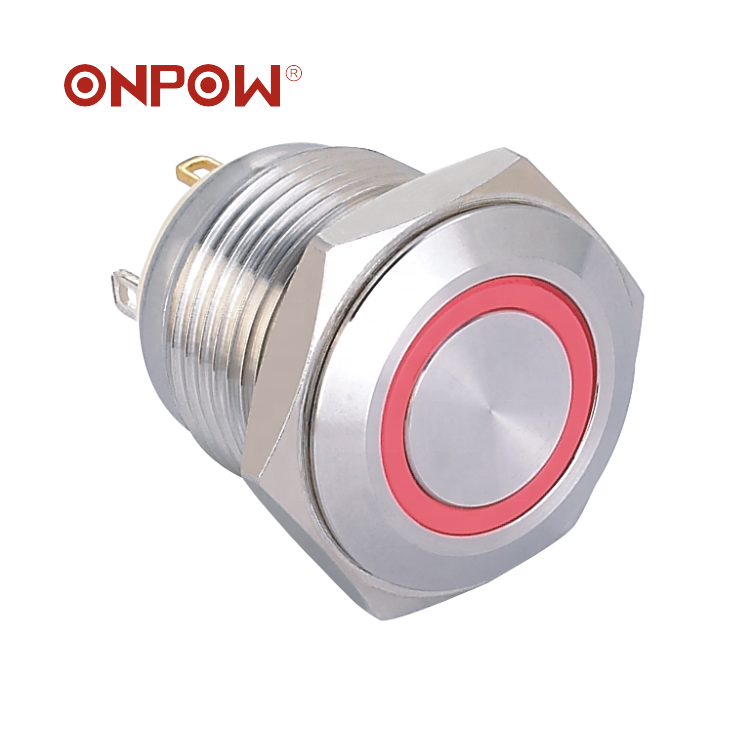

Since 1988 ONPOW CE,ROHS vandal- proof 16mm momentary illuminated metal push button switch
Part number: GQ16F-10E/R/12V/S
Install diameter:16mm
Switch rating: 2A/36VDC
Shape:Flat head
Function: Momentary (1NO)
Terminal: Pin terminal
LED color: Red (Green Yellow Blue White double color can be choose)
Voltage:1.8V~36V
Crust material: Stainless steel
IP rating: IP65
Temperature: - 40 to 75 Degree Si
|
Drawing |
|
Model Description |
|
|
Part number: |
GQ22-11E/G/12V/S |
|
Mounting Cut-out |
22mm +0.2/+0.0 mm |
|
Head shape |
Flat Head (High flat head need customized) |
|
Switch Combination |
1NO1NC |
|
Operation type |
Momentary (Latching can be choose) |
|
Illuminated type |
ring illuminated (Power symbol and dot illuminated can be choose) |
|
Illuminated color |
Green (Red,blue,yellow,orange,white can be choose) |
|
Lamp voltage |
12V (Other voltage 1.8V/2.8V/5-6V/12V/24V/36V/110V/230V can be choose) |
|
Body and Actuator material |
Stainless steel(Aluminum anodized different color can be choose and customized) |
|
Approval |
VDE, UL,CE,CCC,Rohs,Reach,IP65/IP67 |
