Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Leiteng
-
Model Number:
-
LT-1000GF
-
Speed:
-
1500/1800rpm
-
Product Name:
-
1 megawatt genset generator set 380 volt
-
Engine:
-
with Baudouin
-
Alternator:
-
Faraday, Marathon, Stamford,Simens,Leroysomer etc
-
Rated voltage:
-
220/380V
-
Certificate:
-
ISO9001/ISO14001/CE
-
Rated current:
-
1800A
-
Options:
-
ATS, Silent Canopy, Mobile Trailer,Rainproof canopy
-
Control panel:
-
Deepsea / Harsen / Smartgen
-
Delivery Time:
-
Shipped in 15 days after payment
Quick Details
-
Rated Voltage:
-
220/380V
-
Rated Current:
-
1800A
-
Frequency:
-
50/60HZ, 50/60Hz
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Leiteng
-
Model Number:
-
LT-1000GF
-
Speed:
-
1500/1800rpm
-
Product Name:
-
1 megawatt genset generator set 380 volt
-
Engine:
-
with Baudouin
-
Alternator:
-
Faraday, Marathon, Stamford,Simens,Leroysomer etc
-
Rated voltage:
-
220/380V
-
Certificate:
-
ISO9001/ISO14001/CE
-
Rated current:
-
1800A
-
Options:
-
ATS, Silent Canopy, Mobile Trailer,Rainproof canopy
-
Control panel:
-
Deepsea / Harsen / Smartgen
-
Delivery Time:
-
Shipped in 15 days after payment
-

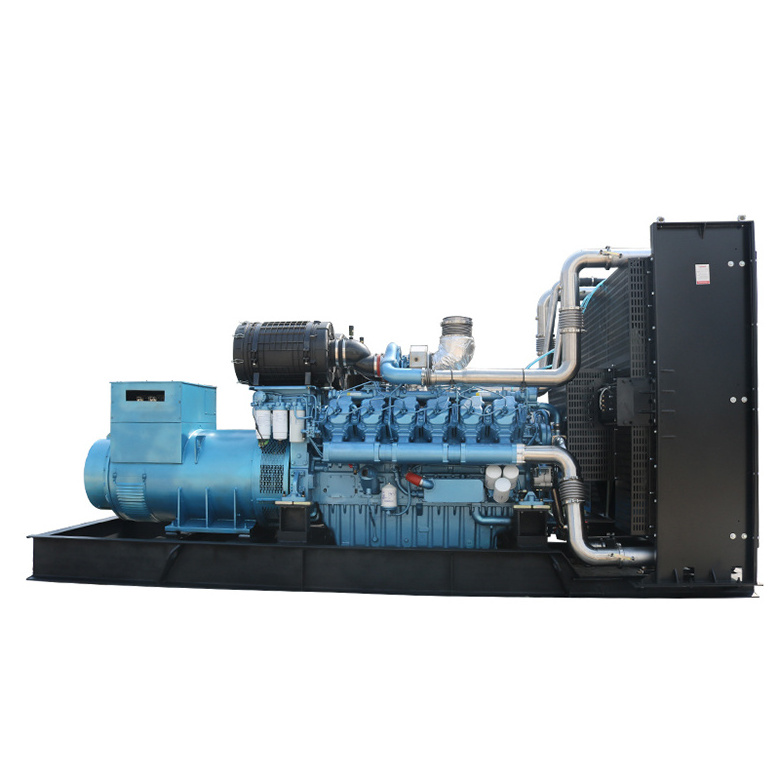

1 megawatt genset generator set 380 volt
Leiteng Power provide wide power range of diesel generator in various type. Even small farm or big mine project could find suit model perfectly match needed. Generator range cover 30kw-2000kw in Open type, Silent type, Movable type, Container type, Automatic type etc.
Parameters Description
Leiteng generator make your work more efficiently, more easily, more quickly but also more fuel saving.
Technical specification parameters of 1 00 0KW series diesel generator set
Unit model
LT-1000GF
Rated power
1000KW
Rated output
voltage
230V/400V
Rated power factor
0.8
Rated current
1800A
Insulation grade
H
Rated speed
1500/1800rpm
Protection grade
IP22
Rated frequency
50/60HZ
Overall dimension (mm)
5600*2407*3102
Voltage Control Methods
AVR
Overall weight
11200KG
Technical specification parameters of diesel engine
Brand
Baudouin
Model
12M33D1108E200
Cylinders
12
Speed
1500/1800rpm
Bore * stroke( mm)
150*185
Power
1108KW
Displacement
39.2L
Fuel consumption rate
209g/kwh
Type
V-type, four stroke
Lubrication mode
Pressure and splash type
Intake mode
Turbo charged
Start-up mode
24V DC electric start
speed regulation
Electronic speed regulation
Cooling mode
Closed water cooling
Generator DetailsDiesel Engine Opentions
Quality & Testing
Production & management follow ISO9001:2015 requirement, each generator must be passed strict inspection in each progressing.
1. All the raw materials/parts by IQC (Incoming Quality Control) before launch into process.
2. Each generator/part under control of IPQC (Input Process Quality Control).
3. Each generator/part must be pass 100% inspection between process.
4. All-sided ex-factory testing in various condition (Outgoing Quality Control), test items as following.
>Loading test in 0%, 25%, 50%, 75%, 100%
>Heat run test
>Insulation resistance test
>Frequently starting test
>Alarm and timing relays test
Certification
Advantages
1. Ten years dedicated in diesel generator with rich experience.
2. 7-15 days quick delivery, annual output 50,000 sets.
3. Competitive price, huge material/parts sourcing, large scale production.
4. Lower noise 70-73db at 7m, super silent as 60-65db at 7m.
5. Spare parts and consumable service available.
6. One-year warranty.
7. Customized & OEM available.
8. One stop and 7x24 service.
9. Excellent technical support and service.
Authorizations
Packaging & Delivery
About Us
Weifang Leiteng Power Machinery Co., Ltd. founded in 1995, which is specialized in products/project/service of diesel generator sets.
Range cover 30kw-2000kw in Open type, Silent type, Movable type, Container type, Automatic type.
Engine options include Cummins, Deutz, Perkins, Weichai, Volvo, MTU, Yuchai, Shangchai, Leiteng power etc.
2 professional plant cover 300,000sq.ft with 300 employees, 4 sets of generator sets line, 6 sets of diesel engine line, annual output 50,000 sets, engineer mechanical technicist regularly attend training in Cummins, Deutz, Weichai etc. famous engine brand. Most of skilled worker stick in generator industry more than 10 years.
Stable cooperate with retailers and distributor in long time, relying on the strong support of customers, our generator sets and service reach to 40 countries and regions. Scientific management, great team and best service make us continually raise to new stage, at present we are TOP10 manufacturer in China.
Product quality and customer benefits always as the greatest importance to us, supply customers with first-class products and services to achieve mutual benefit and win-win result.
Leiteng Power, Intelligently Made, Stronger Your Power!
Application Case
FAQ
Q1: Are you a manufactory or trade company?
A1: We are the Manufactory specialized in diesel generator set industry for many years already, which passed IS09001:2015, AAA grade credit enterprise. Annual output 50,000sets, products/service reach 40 countries and regions.
Q2: How to control quality?
A2: 1) All the raw materials/parts by IQC (Incoming Quality Control) before launch into the process.
2) Each process under control of IPQC (Input Process Quality Control).
3) Each generator set/part must be pass 100% inspection between process.
4) All-sided ex-factory testing in various condition (Outgoing Quality Control).
Q3. How about your price level?
A3: Our price is reasonable which is based on quality and cost.
And it’s negotiable which based on quality or exact demands. It’ll be much helpful if more details could be provide when you make an inquiry.
Q4: Delivery time?
A4: 7-15 days after deposit received.
Most of diesel generator sets/parts with stock, we can make delivery immediately or make out in short time.
Q5. How about MOQ?
A5: MOQ as 1 set.
Q6. OEM/Customized available?
A6: Welcome, generator set could be customized made according to client demands.
Own design/LOGO on generator set available as well.
Q7. Payment term?
A7: 30% T/T as deposit, balance should be release 10days before shipment.
Or 100% L/C at sight.
