Quick Details
-
Voltage:
-
50Hz,380V
-
Dimension(L*W*H):
-
1400*1200*2050
-
Weight (KG):
-
1650
-
Power (kW):
-
3
-
Workbench size(mm):
-
700*400
-
Working slot size(mm):
-
1120*620*420
-
X-Y-Z travel(mm):
-
400*300*200
-
Spindle head stroke(mm):
-
200
-
Electrode lifting weight(kg):
-
70
-
Max. workpiece weight(kg):
-
750
-
Electrode plate to table distance(mm):
-
200-600
-
Working fluid capacity(L):
-
300
-
Color:
-
White and orange
-
Certification:
-
ISO CE
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Year:
-
2021
-
Brand Name:
-
Terui
-
Voltage:
-
50Hz,380V
-
Dimension(L*W*H):
-
1400*1200*2050
-
Weight (KG):
-
1650
-
Power (kW):
-
3
-
Workbench size(mm):
-
700*400
-
Working slot size(mm):
-
1120*620*420
-
X-Y-Z travel(mm):
-
400*300*200
-
Spindle head stroke(mm):
-
200
-
Electrode lifting weight(kg):
-
70
-
Max. workpiece weight(kg):
-
750
-
Electrode plate to table distance(mm):
-
200-600
-
Working fluid capacity(L):
-
300
-
Color:
-
White and orange
-
Certification:
-
ISO CE
Products Description
|
Model number
|
ZNC 350
|

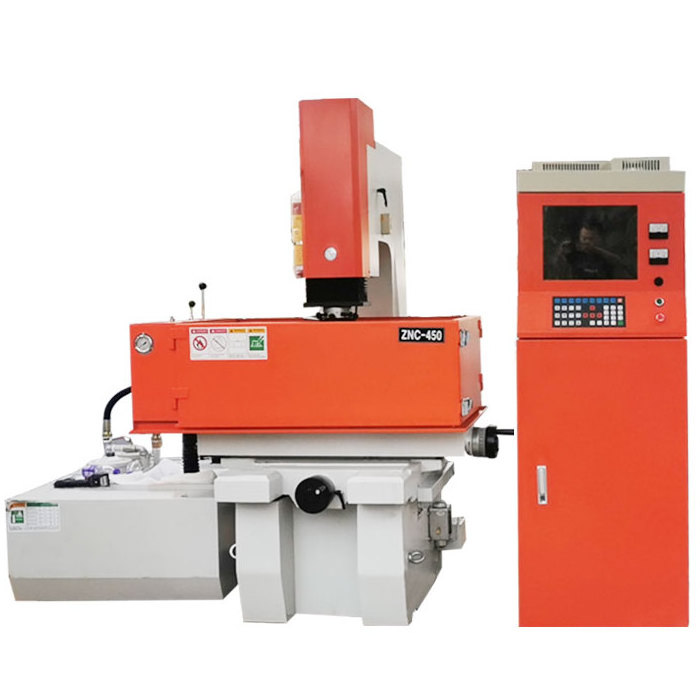

ZNC 450
|
ZNC 550
|
ZNC 650
|
|
Workbench size(mm)
|
600*300
|
700*400
|
800*480
|
1000*600
|
|
Working slot size(mm)
|
820*500*300
|
1120*620*420
|
1290*770*500
|
1700*1000*620
|
|
X-Y-Z travel(mm)
|
300*200*200
|
400*300*200
|
500*400*250
|
600*500*250
|
|
Spindle head stroke(mm)
|
200
|
200
|
300
|
300
|
|
Electrode lifting weight(kg)
|
60
|
70
|
200
|
200
|
|
Max. workpiece weight(kg)
|
500
|
750
|
1500
|
2250
|
|
Electrode plate to table distance(mm)
|
150-550
|
200-600
|
160-710
|
260-860
|
|
Working fluid capacity(L)
|
280
|
300
|
470
|
940
|
|
Dimension(mm)
|
1320*1220*2240
|
1400*1200*2050
|
1530*1850*2250
|
2150*1800*2400
|
|
Electrical cabinet
|
P30A/P30B
|
P60A/P60B
|
P90A/P90B
|
|
Max. working current(A)
|
30
|
60
|
90
|
|
Max. power consumption(KVA)
|
2
|
4
|
6
|
|
Processing speed(mm³/min)
|
200
|
400
|
600
|
|
Min. electrode consumption
|
0.3%
|
0.3%
|
0.3%
|
|
Optimal surface roughness(μm)
|
Ra≤0.3
|
Ra≤0.3
|
Ra≤0.3
|
|
Dimension(mm)
|
760*620*1840
|
760*620*1840
|
760*620*1840
|
|
Weight(kg)
|
190
|
210
|
230
|
Certificate&Package
FAQ
Q:Could you print the logo or company name on the products or package?
A:Yes. Customer's logo or company name can be printed on products or package,we will do what you want.
Q:What payment terms do you accept?
A:We are flexible on payment terms,please contact us for details!
Q: Could I visit your factory ?
A:Yes.Welcome to our factory.
Q: How to solve the failure problems after-sales?
A: Please send us photos or video of the problems.After we confirm the problems,we will provide corresponding solution.
A:Yes. Customer's logo or company name can be printed on products or package,we will do what you want.
Q:What payment terms do you accept?
A:We are flexible on payment terms,please contact us for details!
Q: Could I visit your factory ?
A:Yes.Welcome to our factory.
Q: How to solve the failure problems after-sales?
A: Please send us photos or video of the problems.After we confirm the problems,we will provide corresponding solution.
