Quick Details
-
Model Number:
-
GEN-6212A03
-
Dimension:
-
204x204x167mm
-
Power Supply Mode:
-
DC24V/1A / PoE
-
SNR:
-
≥100dB
-
Output Power:
-
10W
-
Interface:
-
RJ45 Ethernet Port, Power Input
-
Weight:
-
1.85KG
-
S/N (Signal-to-Noise) Ratio:
-
≥85dB
-
Frequency Response:
-
100Hz-18kHz
-
Power Supply:
-
DC 24V/1A or PoE (IEEE802.3af)
-
Network Protocol:
-
SIP 2.0 (RFC 3261), FTP, HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
-
Audio Codec:
-
MP3/PCM/ADPCM/G711.a/G711.u/G729
-
Maximum SPL:
-
100dB±3dB
-
Optional Accessories:
-
Power Adapter, IEC C13 Power Cord (US/EU/UK/AU)
-
Key Words:
-
Ceilling Speaker
Quick Details
-
Warranty:
-
2 year
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Spon
-
Model Number:
-
GEN-6212A03
-
Dimension:
-
204x204x167mm
-
Power Supply Mode:
-
DC24V/1A / PoE
-
SNR:
-
≥100dB
-
Output Power:
-
10W
-
Interface:
-
RJ45 Ethernet Port, Power Input
-
Weight:
-
1.85KG
-
S/N (Signal-to-Noise) Ratio:
-
≥85dB
-
Frequency Response:
-
100Hz-18kHz
-
Power Supply:
-
DC 24V/1A or PoE (IEEE802.3af)
-
Network Protocol:
-
SIP 2.0 (RFC 3261), FTP, HTTP, TCP/IP, UDP, ARP, ICMP, IGMP
-
Audio Codec:
-
MP3/PCM/ADPCM/G711.a/G711.u/G729
-
Maximum SPL:
-
100dB±3dB
-
Optional Accessories:
-
Power Adapter, IEC C13 Power Cord (US/EU/UK/AU)
-
Key Words:
-
Ceilling Speaker
Product Parameters

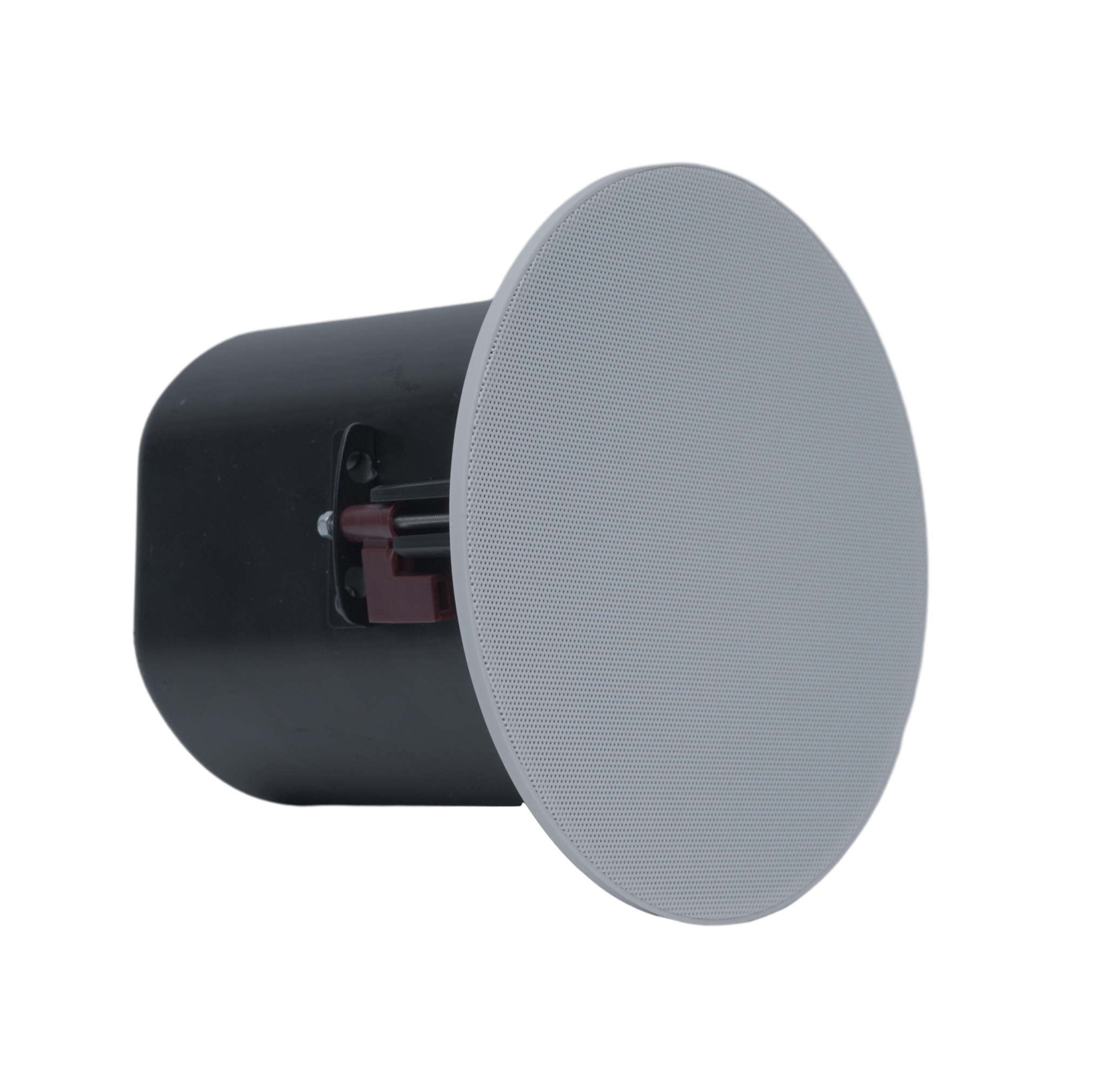

GEN-6212A01 IP PoE Ceilling Speaker
The speaker features wideband G.722 HD audio, PoE support, and loop detector. It has dynamic volume control and can play specific ringtones for emergency alerts. Compliant with 3rd party SIP endpoints and seamlessly integrates with VoIP systems and SPON® XC-9000 software.
|
Power Consumption
|
DC24V/1A or PoE (802.3at/af protocol), Standby Power Consumption ≤3W
|
|
|
|
|||
|
Power Output
|
10W
|
|
|
|
|||
|
Network Communication Protocols
|
HTTP, UDP, ARP, ICMP, IGMP, SIP, ONVIF
|
|
|
|
|||
|
Maximum Sound Pressure Level
|
100dB±3dB
|
|
|
|
|||
|
Sensitivity
|
89dB±3dB (1M/1W)
|
|
|
|
|||
|
Signal-to-Noise Ratio
|
≥85dB
|
|
|
|
|||
|
Frequency Response
|
100Hz-18kHz
|
|
|
|
|||
|
Microphone
|
Built-in
|
|
|
|
|||
|
Intercom Function
|
Supported
|
|
|
|
|||
|
Mounting Hole Size
|
φ180mm
|
|
|
|
|||
|
Operating Temperature
|
-30℃～60℃
|
|
|
|
|||
|
Humidity
|
10%～90%RH (non-condensing)
|
|
|
|
|||
|
Product Dimensions
|
φ204x167mm
|
|
|
|
|||
|
Net Weight
|
1.85 kg
|
|
|
|
|||
Application
Connection Topology
Dimensional Drawing
