Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HUNGSO
-
Model Number:
-
JQ19/NA19-11ED
-
Contact material:
-
Silver
-
Operation type:
-
momentary
-
Certificate:
-
CQC,CCC
-
Function:
-
Push On
-
Connection:
-
50cm motherboard wire
-
Terminal type:
-
PIN terminal
-
Contact resistance:
-
Less than 50m ohm
-
Protection degree:
-
IP67, IK08
-
Operating stroke:
-
About 2.5mm
-
Certification:
-
CE
Quick Details
-
Protection Level:
-
IP65/IP67/IP68
-
Max. Current:
-
3A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HUNGSO
-
Model Number:
-
JQ19/NA19-11ED
-
Contact material:
-
Silver
-
Operation type:
-
momentary
-
Certificate:
-
CQC,CCC
-
Function:
-
Push On
-
Connection:
-
50cm motherboard wire
-
Terminal type:
-
PIN terminal
-
Contact resistance:
-
Less than 50m ohm
-
Protection degree:
-
IP67, IK08
-
Operating stroke:
-
About 2.5mm
-
Certification:
-
CE

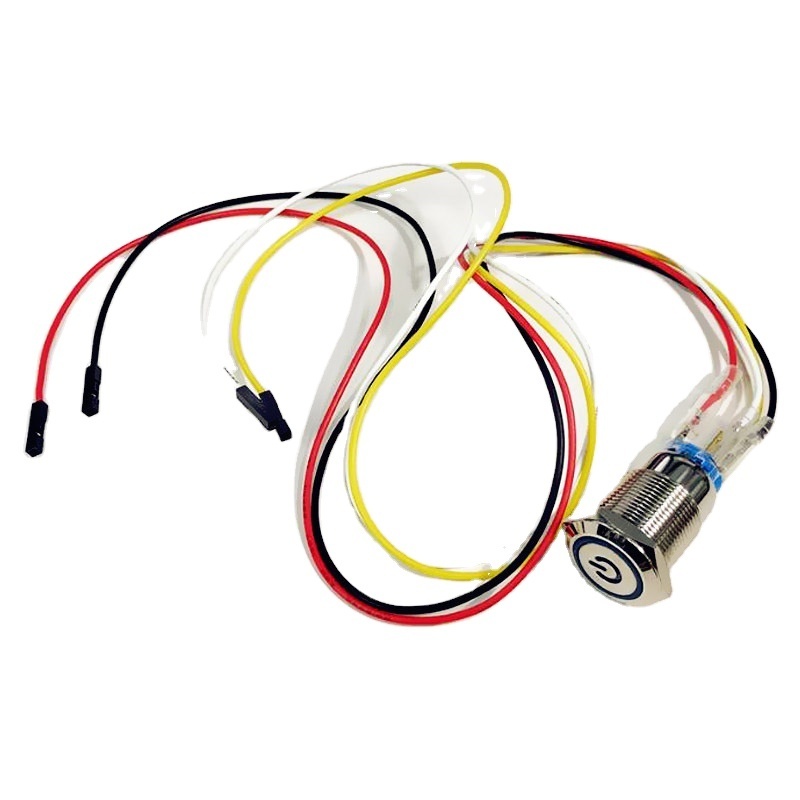

Product Description
Specification
|
Model
|
|
JQ19
|
|
|
Terminal type
|
|
PIN terminal
|
|
|
Switch type
|
|
X(two terminal breakpoints slow moving contact
|
|
|
Switch specification
|
|
3A/250vac
|
|
|
Contact resistance
|
|
Less than 50m ohm
|
|
|
Insulation resistance
|
|
More than 1000M ohm
|
|
|
Dielectric strength
|
|
2000vac
|
|
|
Operating temperature
|
|
-20 ~ +55 degree
|
|
|
Mechanical life
|
|
More than 500000 times
|
|
|
Electrical life
|
|
More than 50000 times
|
|
|
Panel thickness
|
|
1~10mm
|
|
|
torque
|
|
5~14Nm
|
|
|
Operating pressure
|
|
About 3~5N
|
|
|
Operating stroke
|
|
About 2.5mm
|
|
|
Protection degree
|
|
IP67, IK08
|
|
|
material
|
contact
|
Silver alloy
|
|
|
|
button
|
Nickel-plated brass/ stainless steel
|
|
|
|
case
|
Nickel-plated brass/ stainless steel
|
|
|
|
base
|
PA66
|
|
|
LED parameters
|
LED type
|
Ring-illuminated LED
|
|
|
|
Rated voltage
|
12v
|
|
|
|
Other voltage available
|
2v/6v/24v/36v
|
|
|
|
(if need, pls tell)
|
|
|
|
|
LED color
|
blue
|
|
|
|
Other voltage available
|
Red, green, yellow, white
|
|
|
|
(if need, pls tell)
|
|
|
|
|
LED life
|
40000 hours
|
|
Overall Dimension
