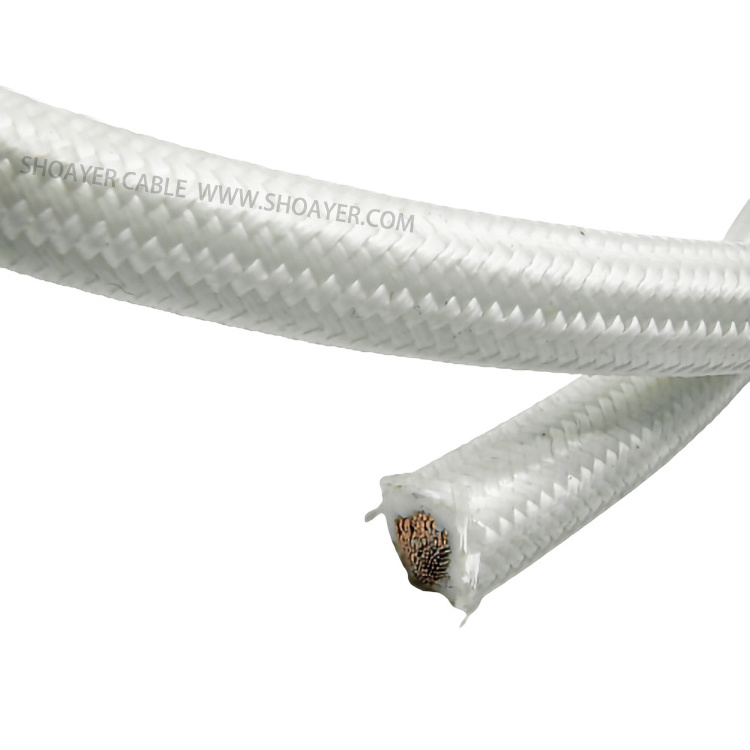

SY 20mm2 167/0.39mm Tinned Copper High Temperature Electric Silicone Fiberglass Braided Wire
SY 20mm2 167/0.39mm Tinned Copper High Temperature Electric Silicone Fiberglass Braided Wire
SY 20mm2 167/0.39mm Tinned Copper High Temperature Electric Silicone Fiberglass Braided Wire
SY 20mm2 167/0.39mm Tinned Copper High Temperature Electric Silicone Fiberglass Braided Wire
SY 20mm2 167/0.39mm Tinned Copper High Temperature Electric Silicone Fiberglass Braided Wire
SY 20mm2 167/0.39mm Tinned Copper High Temperature Electric Silicone Fiberglass Braided Wire
SY 20mm2 167/0.39mm Tinned Copper High Temperature Electric Silicone Fiberglass Braided Wire
SY 20mm2 167/0.39mm Tinned Copper High Temperature Electric Silicone Fiberglass Braided Wire

SY 20mm2 167/0.39mm Tinned Copper High Temperature Electric Silicone Fiberglass Braided Wire

FOB Reference Price: Get Latest Price
≥100 Meters
US $4.15
≥1000 Meters
US $3.75
≥5000 Meters
US $3.3
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Insulation Material:
Silicone + Fiber Glass
Place of Origin:
Shanghai, China
Brand Name:
Shoayer
Model Number:
SYAGRP-1-20/167-8.9
Rated voltage:
300/500V
Product name:
High Temperature Electric Silicone Fiberglass Braided Wire
Size:
20mm²
Conductor:
167/0.39mm TPC
Insulation:
1.1mm Silicone Rubber
Braided:
0.15mm Fiber Glass + Silicon
Out diameter:
8.9±0.3mm
Color:
Optional
Rated Temperature:
-60℃ ~ +180℃
Package:
Coil or Spool
Lead Time:
3- 5 Days

Quick Details

Application:
Heating
Conductor Material:
Tinned Plated Copper
Conductor Type:
Stranded
Insulation Material:
Silicone + Fiber Glass
Place of Origin:
Shanghai, China
Brand Name:
Shoayer
Model Number:
SYAGRP-1-20/167-8.9
Rated voltage:
300/500V
Product name:
High Temperature Electric Silicone Fiberglass Braided Wire
Size:
20mm²
Conductor:
167/0.39mm TPC
Insulation:
1.1mm Silicone Rubber
Braided:
0.15mm Fiber Glass + Silicon
Out diameter:
8.9±0.3mm
Color:
Optional
Rated Temperature:
-60℃ ~ +180℃
Package:
Coil or Spool
Lead Time:
3- 5 Days
Product Description
Product Name
20mm² High Temperature Electric Silicone Fiberglass Braided Wire
Shoayer Part Number
SYAGRP-1-20/167-8.9


Conductor
Material
Tinned Copper


Insulation

Material
1.1mm SiR (Silicon Rubber)
Size
167/0.39mm
0.15mm Fiber Glass
O.D.(Ref)
6.4±0.2mm
O.D.(Ref)
8.9±0.3mm
Silicone Rubber Braided Wire
can be used in various thermal places ranging from household appliances,
lighting devices, industrial machines,
to high-temperature furnace

Voltage Rating : 300/500V
Test Voltage :spark test: 3kV
Temperature Rating
Operating temperature: -60ºC to +180ºC
Short term ageing: +205 °C
Minimum Bending Radius
Fixed: 4 x overall diameter


料号
Shoayer
Part NO.
导体
Conductor
绝缘
Insulation
尺寸
Size
结构
Composition
No.*mm
绞合直径
Diameter
mm
绝缘壁厚
Thickness
mm
编织壁厚
Braided Thickness
完成外径
Outer Diameter
mm
SYAGRP-1-0.5
0.5mm²
19/0.8
1.0±0.05
0.5
0.1
2.2±0.1
SYAGRP-1-0.75
0.75mm²
24/0.2
1.3±0.05
0.5
0.1
2.5±0.1
SYAGRP-1-1.0
1.0mm²
32/0.2
1.4±0.05
0.55
0.1
2.7±0.1

SYAGRP-1-1.5

1.5mm²
48/0.2

1.7±0.1

0.6

0.1

3.1±0.1
30/0.25
SYAGRP-1-2.0
2.0mm²
40/0.25
2.0±0.1
0.6
0.1
3.4±0.15
SYAGRP-1-2.5
2.5mm²
49/0.25
2.3±0.1
0.6
0.1
3.7±0.15
SYAGRP-1-3.0
3.0mm²
49/0.28
2.4±0.1
0.7
0.1
4.0±0.15
SYAGRP-1-3.5
3.5mm²
49/0.3
2.7±0.1
0.7
0.1
4.3±0.15
SYAGRP-1-4.0
4.0mm²
56/0.3
2.8±0.1
0.7
0.15
4.5±0.15
SYAGRP-1-5.0
5.0mm²
70/0.3
3.1±0.1
0.75
0.15
4.9±0.15
SYAGRP-1-5.5
5.5mm²
78/0.3
3.3±0.1
0.75
0.15
5.1±0.2
SYAGRP-1-6.0
6.0mm²
84/0.3
3.4±0.15
0.75
0.15
5.2±0.2
SYAGRP-1-8.0
8.0mm²
113/0.3
4.1±0.15
0.9
0.15
6.2±0.2
SYAGRP-1-10
10mm²
84/0.39
4.5±0.15
1
0.15
6.8±0.3
SYAGRP-1-12
12mm²
100/0.39
4.7±0.15
1
0.15
7±0.3
SYAGRP-1-14
14mm²
117/0.39
5±0.2
1
0.15
7.3±0.3
SYAGRP-1-16
16mm²
134/0.39
5.7±0.2
1.1
0.15
8.2±0.3
SYAGRP-1-20
20mm²
167/0.39
6.4±0.2
1.1
0.15
8.9±0.3
SYAGRP-1-22
22mm²
184/0.39
6.8±0.3
1.2
0.15
9.5±0.3
SYAGRP-1-25
25mm²
203/0.39
6.8±0.3
1.3
0.2
9.8±0.3
SYAGRP-1-30
30mm²
251/0.39
7.8±0.3
1.3
0.2
10.8±0.4
SYAGRP-1-35
35mm²
293/0.39
8.6±0.3
1.55
0.2
12.1±0.4
SYAGRP-1-38
38mm²
318/0.39
9±0.3
1.7
0.2
12.8±0.5
SYAGRP-1-50
50mm²
418/0.39
10.1±0.4
1.9
0.2
14.3±0.5
SYAGRP-1-70
70mm²
357/0.50
12.1±0.4
2.15
0.2
16.8±0.5
SYAGRP-1-80
80mm²
408/0.50
12.8±0.5
2.15
0.2
17.5±0.5
SYAGRP-1-95
95mm²
484/0.50
14.8±0.5
2.2
0.2
19.6±0.5
