Quick Details
-
Brand Name:
-
Honghai
-
Product Name:
-

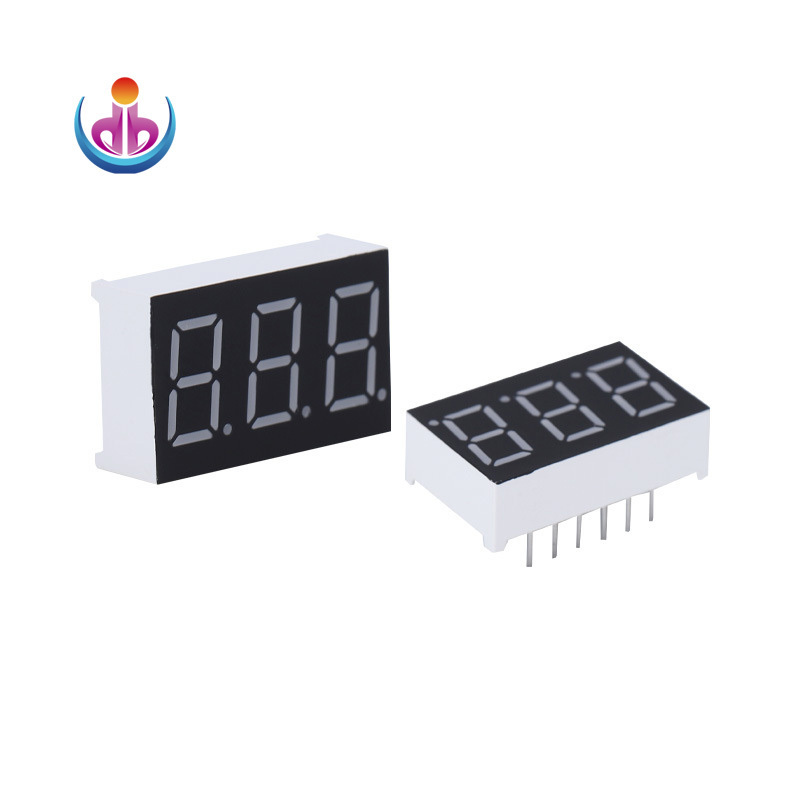

HHS-08071A-A/B-EG
-
Color:
-
Green
-
Reverse Voltage Per Segment:
-
5.0V
-
Forward Current Per Segment:
-
20 mA
-
Segment:
-
7
-
Operating Temperature Range:
-
-40℃ to +80℃
-
Storage Temperature Range:
-
-40℃ to +85℃
-
Soldering Temperature:
-
260℃ for 5 Seconds
-
Power Dissipation Per Segment:
-
64 mW
-
Peak Forward Current Per Segment:
-
40 mA
Quick Details
-
Type:
-
VA
-
Display Size:
-
Customized
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
Honghai
-
Product Name:
-
HHS-08071A-A/B-EG
-
Color:
-
Green
-
Reverse Voltage Per Segment:
-
5.0V
-
Forward Current Per Segment:
-
20 mA
-
Segment:
-
7
-
Operating Temperature Range:
-
-40℃ to +80℃
-
Storage Temperature Range:
-
-40℃ to +85℃
-
Soldering Temperature:
-
260℃ for 5 Seconds
-
Power Dissipation Per Segment:
-
64 mW
-
Peak Forward Current Per Segment:
-
40 mA
Technical Data Sheet
Absolute Maximum Ratings at Ta=25 ℃
| Parameters | Symbol | Max | Unit |
| Power Dissipation (Per Chip) | P d | 64 | mW |
| Peak Forward Current (Per Segment) (1/10 Duty Cycle, 0.1ms pulse width) | I FP | 40 | mA |
| Forward Current (Per Segment) | I F | 20 | mA |
| Reverse Voltage (Per Chip) | V R | 5 | V |
| Operating Temperature Range | T opr | -40 ℃ to +80 ℃ | |
| Storage Temperature Range | T stg | -40 ℃ to +85 ℃ | |
| Soldering Temperature | T sld | 260 ℃ for 5 Seconds | |
Electrical Optical Characteristics at Ta=25 ℃
| Parameters | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Average Luminous Intensity | Iv | 24.0 | 48.0 | --- | mcd | IF=5mA (Note a) |
| 48.0 | 96.0 | --- | mcd | IF=10mA (Note a) | ||
| Luminous Intensity Matching Ratio | I v-m | --- | --- | 2:1 | IF=20mA | |
| Peak Emission Wavelength | λp | --- | 520 | --- | nm | IF=20mA |
| Dominant Wavelength | λd | --- | 525 | --- | nm | IF=20mA (Note b) |
| Spectral Line Half-Width | λ | --- | 20 | --- | nm | IF=20mA |
| Forward Voltage (Per Segment) | V F | --- | 2.9 | 3.2 | v | IF=20mA (Note c) |
| Reverse Current (Per Segment) | I R | --- | --- | 50 | µA | VR=5V |
LED displays are widely used in stations, docks, airports, mines, securities, squares, advertising, transportation, Urban culture halls, Video conference, smart cities and other fields and places.
Semi outdoor LED display screen
LED display devices are widely used in terminal products such as household appliances, instruments, LED displays, and lighting.
LED display devices mainly include: LED Nixie tube, LED dot matrix module, LED plane tube, LED digital screen, etc.
LED dot matrix unit board
LED dot matrix unit board
LED surface mount module
