Quick Details
-
Model Number:
-
SZ-2T
-
Welding range:
-
Copper: 0.30mm-1.30mm, Aluminum: 0.30mm-1.50mm
-
Advantage:
-
no power, no heat, welding fast, simple
-
Net weight:
-
10.5KG
-
gross weight:
-
12KG
-
package:
-
standard carton case
Quick Details
-
Use:
-
welding cable, wire without using power, heat
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
shengzao
-
Model Number:
-
SZ-2T
-
Welding range:
-
Copper: 0.30mm-1.30mm, Aluminum: 0.30mm-1.50mm
-
Advantage:
-
no power, no heat, welding fast, simple
-
Net weight:
-
10.5KG
-
gross weight:
-
12KG
-
package:
-
standard carton case
SZ-2T Desktop cold pressure welder, bench mounted cold pressure welding machine
1. Application : Used for welding the wire of copper, aluminum, brass, and other non-ferrous metals. Round wire or flat wire, square wires are all available.
Main parameters
Welding range:
Copper: 0.30mm-1.30mm
Aluminum: 0.30mm-1.50mm
Advantage: No power, no heat, no electricity,light, easy to operate, welding just one minute.
Net Weight: 11KG packed weight: 12.5KG
Package dimension: 24cm*15cm*36cm (L*W*H) with carton case
2. Cold welder Introduction:
1. Weld copper wire or aluminum wire; or weld copper wire with aluminum wire
2. No need any power, heat, only match corresponding dies.
3. Our machine can weld copper wire from 0.06mm-10.0mm; weld aluminum wire: from 0.06mm-15.0mm.
4. You can choose suitable machine according the wire diameter you need to weld and our machine's welding range.
5. For example, if you want to weld 0.90mm, 1.0mm, 1.20mm, 1.40mm copper wire, you can choose model SZ-3T, SZ-3TR. And also should match four single cavity dies or two double cavity dies.
6. Our machine is compatibility with other supplier’s welders. You can use others’ welding machine with our dies; or use our dies on other supplier’s machine.
7. The tolerance of dies to wire : -1%mm+ 3%mm wire to dies tolerance.
For example: 2.0mm dies can weld the wire diameter from: 1.98mm to 2.06mm wires.
8. Can different metals be welded using cold pressure? Cold welding can be used to join dissimilar materials, such as aluminum to copper.
9.
The wire can be welded:
Naked copper wire & aluminum wire, brass wire; enameled copper wire,
copper clad aluminum conductor; or weld copper wire & brass wire together with aluminum wire.
Plastic wires and other wires should remove surface insulation part, then welding.
Steel wire or stranded wires can’t be welded.
3. You can choose the suitable machine according to follow Welding Range
Customers all over the world:
We had exported many countries with good result, like South Korea, India, Pakistan, Sri Lanka, Indonesia, Malaysia, Singapore, Philippines, Vietnam, Thailand, Australia, Iran, UAE, Saudi Arabia, Turkey, Kazakhstan, Uzbekistan, USA, Canada, Russia, Finland, Germany, Serbia, Slovakia, Romania, Egypt, South Africa, Morocco, Tanzania, Angola, Brazil, Mexico, Argentina, Chile, Colombia, etc.
Welding brief demonstration:

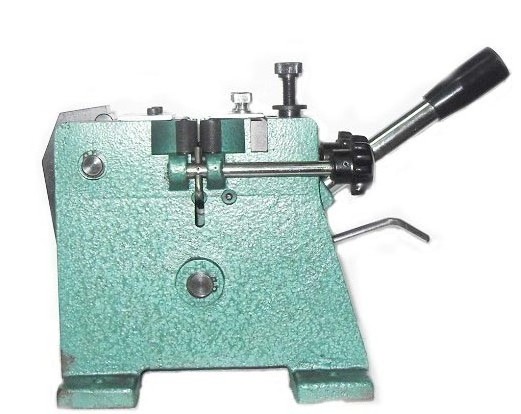

SZ-2T welding machine pictrues and dies:
Welding dies used in model SZ-2T
We have total four dimension dies for all our welding machines as follow:
Welding process:
1. Install dies into the machine
Thread the wires into the welder:
Welding the wires by squeeze the welder's handle
Take out the welded wires
After Clean the welded flash:
Wire Exhibition pictures:
Main benefits of using cold welding:
The weld cycle takes only seconds to complete and creates a permanent bond stronger than the parent material, without using heat, fillers or fluxes.
The welding part is stronger than original part, which can do drawing again.
After welding effect and test(8.0mm wires as follow):
