Quick Details
-
Model Number:
-
GRL8-01-AC/DC24V~240V without sensor
-
Product name:
-
Level Control Relay
-
Voltage Range:
-
AC/DC24-240V
-
Frequency:
-
50/60HZ
-
Function:
-
2 level control mode
-
Supply Terminals:
-
1SPDT
-
Rated Current:
-
10A
-
Weight/pcs:
-
1KG/PCS
-
Certifications:
-
CE CB
-
Warranty/guarantee:
-
18months
-
MOQ:
-
20PCS
Quick Details
-
Contact Load:
-
Low Power
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GEYA OEM ODM
-
Model Number:
-
GRL8-01-AC/DC24V~240V without sensor
-
Product name:
-
Level Control Relay
-
Voltage Range:
-
AC/DC24-240V
-
Frequency:
-
50/60HZ
-
Function:
-
2 level control mode
-
Supply Terminals:
-
1SPDT
-
Rated Current:
-
10A
-
Weight/pcs:
-
1KG/PCS
-
Certifications:
-
CE CB
-
Warranty/guarantee:
-
18months
-
MOQ:
-
20PCS
This link price is only for
GRL8-01-AC/DC24V~240V
without sensor
Products Description
GRL8-01- AC/DC24V~240V Designed for monitoring level in wells, basins, reservoirs, thanks...

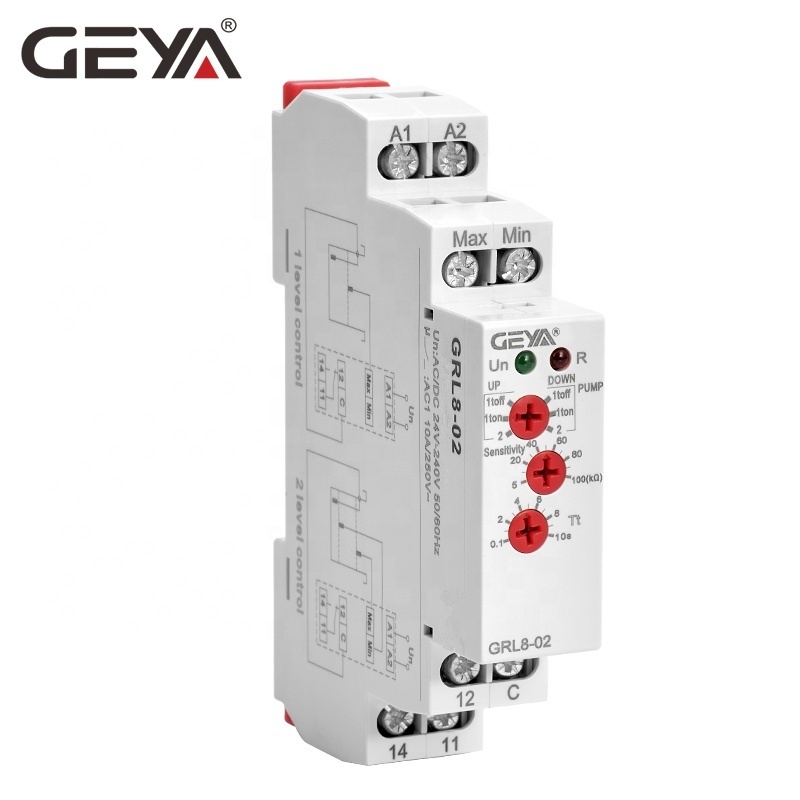

- GRL8 Level Control Relay
-GRL8-01 = 2 level control mode
- GRL8-02 =2 or 1 level control mode
-Choice of function PUMP UP, PUMP DOWN.
-Adjustable time delay on the output (0.1 - 10s).
-Sensitivity adjustable by a potentiometer (5-100K).
-Galvanically separated supply voltage AC/DC 24-240V. - Output 1SPDT 10A/AC1
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.
|
|
Function
|
|
GRL8-01
|
2 level control mode
|
|
GRL8-01 with Sensor
|
|
|
GRL8-02
|
2 or 1 level control mode
|
|
GRL8-02 with Sensor
|
|
Packing List
|
Item
|
Specification
|
N.W. of product (g)
|
G.W. of product (g)
|
Medium box weight
(g) |
G.W. of 60pcs/CTN (kg)
|
G.W. of 100pcs/CTN(kg)±50g
|
G.W. of 200pcs/CTN(kg)
|
|
GRL8-01
|
AC/DC24V~240V
|
70.1
|
82.9
|
895
|
5.72
|
9.42
|
18.54
|
|
GRL8-02
|
|
72
|
84.8
|
914
|
5.83
|
9.61
|
18.92
|
