Qotom CPU Core i7 4500U Fanless Mini pc 6 COM 6 USB Robot Arm Embedded Industrial Computer pc

Qotom CPU Core i7 4500U Fanless Mini pc 6 COM 6 USB Robot Arm Embedded Industrial Computer pc

FOB Reference Price: Get Latest Price

≥1 Sets

US $200

≥30 Sets

US $199

≥100 Sets

US $196

≥1000 Sets

US $192

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product Name:: 6 COM Fanless Mini Pc

Color & Metiral:: Black, Aluminium alloy

CPU:: Intel Core i7 4500U Dual Core Processor, 1.8GHz-3.0GHz, 4M Cache

Graphics Card:: Intel HD Graphics 4400

COM:: 6 x RS232 COM

LAN:: 2*Intel I211-AT Gigabit LAN

Video Output:: 2 * HD, 1*VGA display

CPU TDP:: 15W

Operating System:: Win7/Win 8/ Win 10/ Linux

RAM:: DDR3 2G/4GB/8GB

Quick Details

Type:: Industrial Monitor

Brand Name:: Qotom

Place of Origin:: Guangdong, China

Product Name:: 6 COM Fanless Mini Pc

Color & Metiral:: Black, Aluminium alloy

CPU:: Intel Core i7 4500U Dual Core Processor, 1.8GHz-3.0GHz, 4M Cache

Graphics Card:: Intel HD Graphics 4400

COM:: 6 x RS232 COM

LAN:: 2*Intel I211-AT Gigabit LAN

Video Output:: 2 * HD, 1*VGA display

CPU TDP:: 15W

Operating System:: Win7/Win 8/ Win 10/ Linux

RAM:: DDR3 2G/4GB/8GB

Product Description

Q370P Mini PC Main Features

• I Intel Core i7 4500U Dual Core Processor
• Intel HD Graphics
• 2 x HD, 1 xVRA Video Output

• 6 x RS232 COM
• 4 x USB 3.0, 2 x USB 2.0, 1 x SATA 3
• 1 x Mini-PCIe, 1 x mSATA
• 2 x Intel I211-AT Gigabit LAN

Category			Descriptions
Model	No.	Q370P Mini PC
Processor System	CPU	Intel Core i7 4500U Dual Core Processor, 1.8GHz-3.0GHz, 4M Cache
		CPU TDP	15W
		Memory	1 x DDR3L SO-DIMM Socket (Up to 8G, 1333/1600MHz）
		Chipset	By CPU
		Graphics	Intel® HD Graphics 4400
		LAN Chipset	2 x Intel I211-AT Gigabit LAN
		Audio	Realtek ALC662 HD Audio
		Watch Dog	Yes
Front I/0	Power Button	1
		LED	1 x Power LED,1 x HDD LED
		Serial Port	2 x RS-232 (COM5, COM6)
		USB	2 x USB2.0, 2 x USB3.0
Rear I/O	Power	1 x DC Jack
		LAN	2 x RJ-45 Port for Gigabit LAN
		Video Output	2 x HD, 1 x VGA (Option)
		Audio	1 (Mic-in, Line-out)
		USB	2 x USB 3.0
		Serial Port	4 x RS-232 (COM1, COM2, COM3, COM4)
Storage	Type	1 x 2.5-inch HDD/SSD
Storage	Type			1 x Mini PCIe for mSATA SSD
Expansion	mSATA	1 x Full-length Mini PCIe for SSD
		Mini PCIe	1 x Mini PCIe Full-length for 4G, Half-length for Wi-Fi
		GPIO	1 x 2.0 Pitch Header (Option)
		SIM Card Slot	1
		Automatically Boot Jumper	1
		DC-in	Header (Option)
		VGA	COM3 can be set up as VGA (Factory Setting)
		RS-485	COM2 can be set up as RS-232/RS-485 (Factory Setting)
Power Requirement	Power Adapter	12V3A
Power Requirement		DC Jack	5.5mm, 2.5mm
Environmental	Operating Temp	0°C~50°C
		Non-Operating Temp	-20°C~80°C
		Humidity	10%~90%
Mechanical	Material	Aluminium Alloy
		Dimension	187 x 111 x 50mm
		Weight	1.1kg
		Mounting	VESA Mounting Bracket
		Packaging Dimension	261 x 218 x 75mm
		Kensington Lock	Support
		Cooling Mode	Fanless Design
OS Support	Windows 7, Windows 8, Windows 10, Linux

Detailed Images

Mini PC Router Front I/O

1 x Power Button

1 x Power LED

2 x USB 3.0

2 x USB 2.0

2 x RS-232 (COM5, COM6)

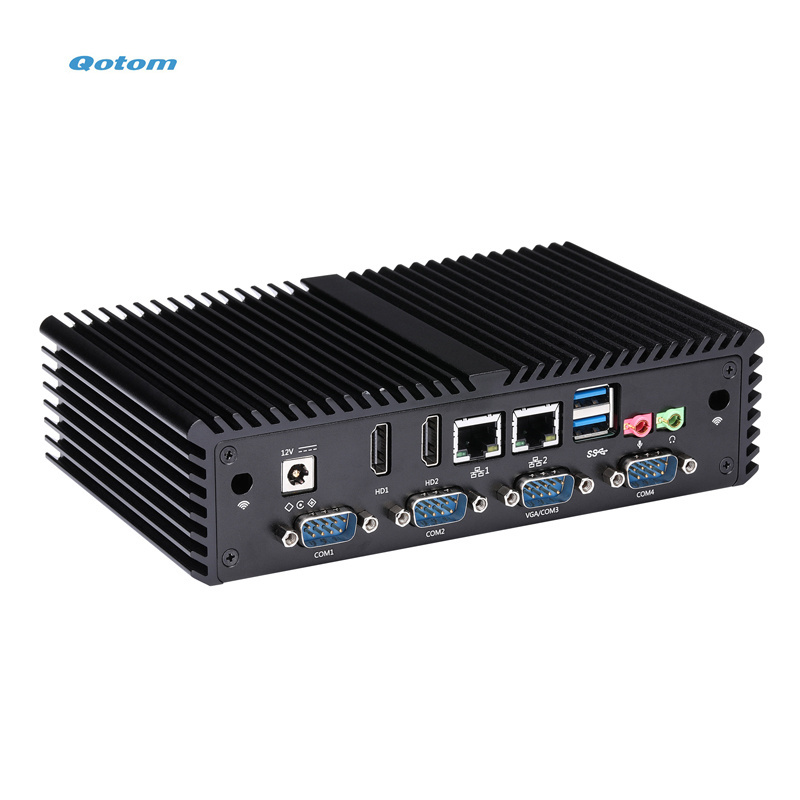

Mini PC Router Rear I/O

1 x DC Jack

2 x HD, 1 x VGA (Option)

2 x RJ-45 Port for Gigabit LAN

2 x USB 3.0 1 (Mic-in, Line-out)Audio

4 x RS-232 (COM1, COM2, COM3, COM4)

Expansion

1 x Full size Mini-PCIe for mSATA SSD
1 x Mini-PCIe for Option
1 x SIM Card Slot, 1 x DC-in Header
1 x Automatically Boot Jumper

1 x 2.0 Pitch Header (GPIO)
1 x 2.0 Pitch Header (VGA)
"COM2" can be set up as RS-232/RS-485 (Factory Setting)
"COM3 " can be set up as VGA (Factory Setting)
