Quick Details
-
Impendence:
-
50 ohm
-
Gain:
-
5dBic Based on 7x7cm ground plane
-
Polarization:
-
RHCP
-
Output V.S.W.R:
-
<2.0
-
Noise Figure:
-
<1.5dB
-
DC Voltage:
-
3~5V DC
-
DC Current:
-
10~20mA
Quick Details
-
Frequency Range:
-
1575.42±3MHz
-
V.S.W.R:
-
<1.5:1
-
Band Width:
-
>10MHz
-
Impendence:
-
50 ohm
-
Gain:
-
5dBic Based on 7x7cm ground plane
-
Polarization:
-
RHCP
-
Output V.S.W.R:
-
<2.0
-
Noise Figure:
-
<1.5dB
-
DC Voltage:
-
3~5V DC
-
DC Current:
-
10~20mA

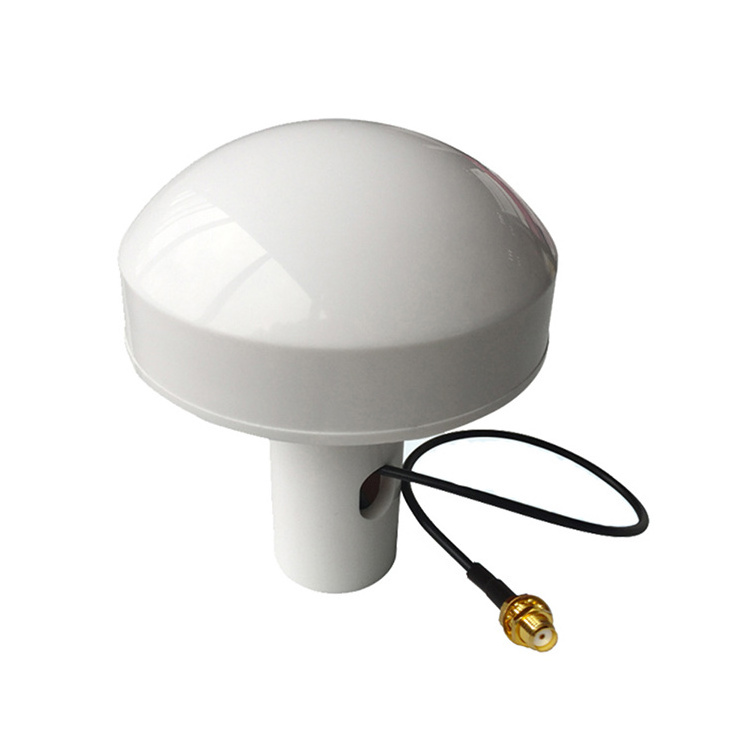

| GPS Marine Antenna FL-P001M | |
| 1) Antenna | |
| Frequency Range | 1575.42±3MHz |
| V.S.W.R | <1.5:1 |
| Band Width | >10MHz |
| Impendence | 50 ohm |
| Gain | 5dBic Based on 7x7cm ground plane |
| Polarization | RHCP |
| 2) LNA | |
| Frequency Range | 1575.42MHz |
| Gain | 28±2dB |
| Noise Figure | <1.5dB |
| DC Voltage | 3~5V DC |
| DC Current | 10~20mA |
| Output V.S.W.R | <2.0 |
| 2. Material | |
| RF Cable | RG58 |
| RF Connector | SMA or others |
| Radome Material | ABS |
| Shielding | Tinplate |
| Antenna | FR4 |
| 3. Testing Conditions (Environmental) | |
| Working Temperature | -40℃~+85℃ |
| Storage Temperature | -40℃~+85℃ |
| Relative Humidity | Up to 95% |
| Vibration | Sine sweep 1g(0-p) |
| 10~55~10Hz each axis | |
Problem 1
Q: Can I get one sample?
A: Yes, sample is for free.
Problem 2
Q:Payment term:
A:T/T(50% deposit as place order, 50% before shipment), Western Union, MoneyGram, Paypal
Problem 3
Q: What's the delivery time?
A: 1-2 working days for the sample, 7-10 working days for quantity below 5K, 15-30 working days for the quantity below 20K.
Problem 4
Q: Have antenna 100% assembles well in stock?
A: No, all antenna will be newly assembled according to your orders including the samples.
Problem 5
Q: Could I use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Problem 6
Q:How can you guarantee the product quality?
A: All of our items are manufactured unter RoHS directive and CE certified. Before shipment, we'll 100% inspect the commodity.
