Quick Details
-
Brand Name:
-
ET Pump
-
Model Number:
-
BL42
-
Place of Origin:
-
Guangdong, China
-
Power:
-
17-30W
-
Name:
-
Micro 12V/24V Brushless DC pump
-
Constructure:
-
Impeller on the rotor
-
Rotor Shaft:
-
Ceramic shaft
-
Protection Function:
-
Rotor anti-blocked protective
-
Character:
-
Wear Resistance
-
Feature:
-
Extra high flow rate 10-19L/min.
-
Max. Head Lift:
-
9.0 M
-
Usage:
-
Water circulation equipment, smart toilets, etc.
-
Certification:
-
Reach, RoHS, CE, CCC, ETL
Quick Details
-
Application:
-
Family Homes, Smart toilet, Water circulation equipment, CPU water cooling, Plumbing mattress
-
Pressure:
-
high pressure
-
Voltage:
-
12V/24V
-
Brand Name:
-
ET Pump
-
Model Number:
-
BL42
-
Place of Origin:
-
Guangdong, China
-
Power:
-
17-30W
-
Name:
-
Micro 12V/24V Brushless DC pump
-
Constructure:
-
Impeller on the rotor
-
Rotor Shaft:
-
Ceramic shaft
-
Protection Function:
-
Rotor anti-blocked protective
-
Character:
-
Wear Resistance
-
Feature:
-
Extra high flow rate 10-19L/min.
-
Max. Head Lift:
-
9.0 M
-
Usage:
-
Water circulation equipment, smart toilets, etc.
-
Certification:
-
Reach, RoHS, CE, CCC, ETL
Products Description

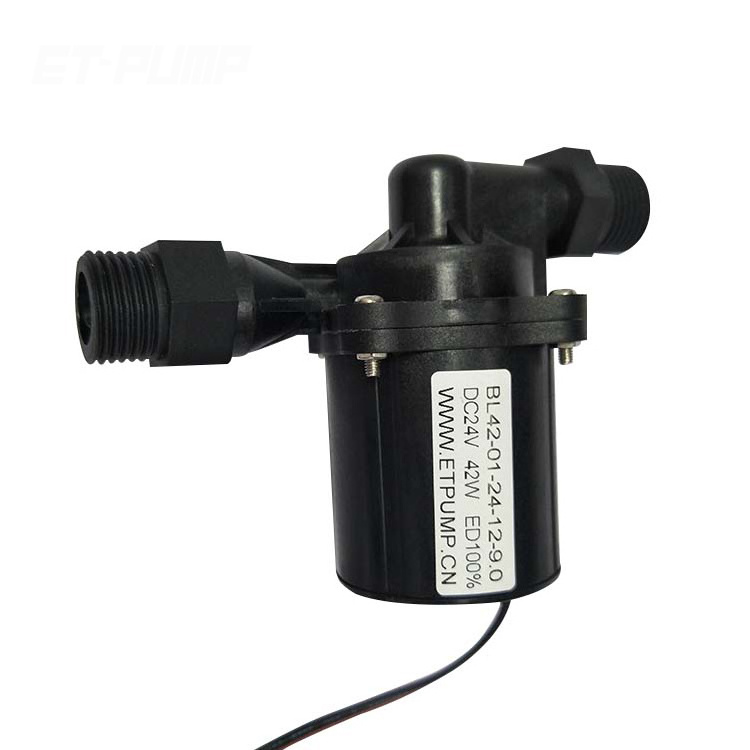

Brushless DC pump BL42 series
is the smallest brushless DC pump in China with low start up voltage, available for battery power supply. It's able to deliver 100 degree water and work for 1000 hours. The flow rate of it is rather stable. It could be high temperature resistance and Food Grade for material. BL23 use stable speed-controlled circuit technology, it's wear-resistant, strong in anti-interference. The parameters can be customized as per our client's demand, no matter the max head or flow rate etc. What's more, our quality & serve are guaranteed absolutely with our rich experience in this field. Feel free to contact us & we'll reply you efficiently.
APPLICATIONS
Water circulation equipment、iellient toile Plumbing mattress、CPU water cooling
|
RANGE OF CRITERIA
|
|
|
||
|
Model
|
BL42-01
|
BL42-02
|
||
|
Voltage
|
12V/24V
|
12V/24V
|
||
|
Power
|
17W/30W
|
17W/30W
|
||
|
Head
|
6/9M
|
5/6M
|
||
|
Flow Range
|
10-12L/min
|
19-20L/min
|
||
|
Current
|
1.5/1.2A
|
1.5/1.2A
|
||
|
Ideal Fluid
|
0°C-70°C
|
0°C-70°C
|
||
|
Ambient Temperature
|
-20°C-75°C
|
-20°C-60°C
|
||
|
Working Mode
|
Continuous duty/Interruptible duty
|
Continuous duty/Interruptible duty
|
||
|
Insulation Level
|
Class B
|
Class B
|
||
|
Noise（1M）
|
45DB
|
45DB
|
||
|
Life
|
> 10000H
|
> 10000H
|
||
|
Dry pumping function
|
Not Available
|
Not Available
|
||
|
Weight
|
265G
|
250G
|
||
|
Dimension
|
83.4*115.1*46MM
|
79.2*67.95*45MM
|
||
ET Pump Micro Brushless DC Pump BL42 series are micro water pump, which is based on the principle of permanent magnet brushless DC motor. When turn on the DC power, the electricity goes through the multiple-pole winding and generates a magnetic field, interacts with the permanent magnet in the rotor with an impeller, finally leads a centrifugal motion of the impleller and extrudes the water out.
|
STANDARD PARTS
|
|
|
|
|
||||
|
Model
|
Voltage（V）
|
Flow Rate（L/min）
|
Max Head(M)
|
Power（W）
|
||||
|
BL42-01
|
12
|
10
|
6
|
17
|
||||
|
|
24
|
12
|
9
|
30
|
||||
|
BL42-02
|
12
|
19
|
4.5
|
17
|
||||
|
|
24
|
19
|
5
|
30
|
||||
