Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Renhotec
-
Model Number:
-
M12 Connetor
-
Coding:
-
A / B / C / D / K / L / X / S / T Code
-
Number of Positions:
-
3 / 4 / 5 / 6 / 8 / 12 / 17 PIN
-
Orientation:
-
Straight / Right Angle
-
Protection Degree:
-
IP67
-
Shell Material:
-
Plastic / Metal
-
Rated voltage:
-
250V for 3 4 pin 60V for 5pin 30V for 8 12 17pin
-
Termination Style:
-
Screw-joint / Solder Type
-
Shield:
-
Shield / Unshielded
-
Certificate:
-
CE ROHS
Quick Details
-
Type:
-
Circular Connector
-
Application:
-
Automotive/Aviation/LED/Industrial
-
Gender:
-
Male
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Renhotec
-
Model Number:
-
M12 Connetor
-
Coding:
-
A / B / C / D / K / L / X / S / T Code
-
Number of Positions:
-
3 / 4 / 5 / 6 / 8 / 12 / 17 PIN
-
Orientation:
-
Straight / Right Angle
-
Protection Degree:
-
IP67
-
Shell Material:
-
Plastic / Metal
-
Rated voltage:
-
250V for 3 4 pin 60V for 5pin 30V for 8 12 17pin
-
Termination Style:
-
Screw-joint / Solder Type
-
Shield:
-
Shield / Unshielded
-
Certificate:
-
CE ROHS

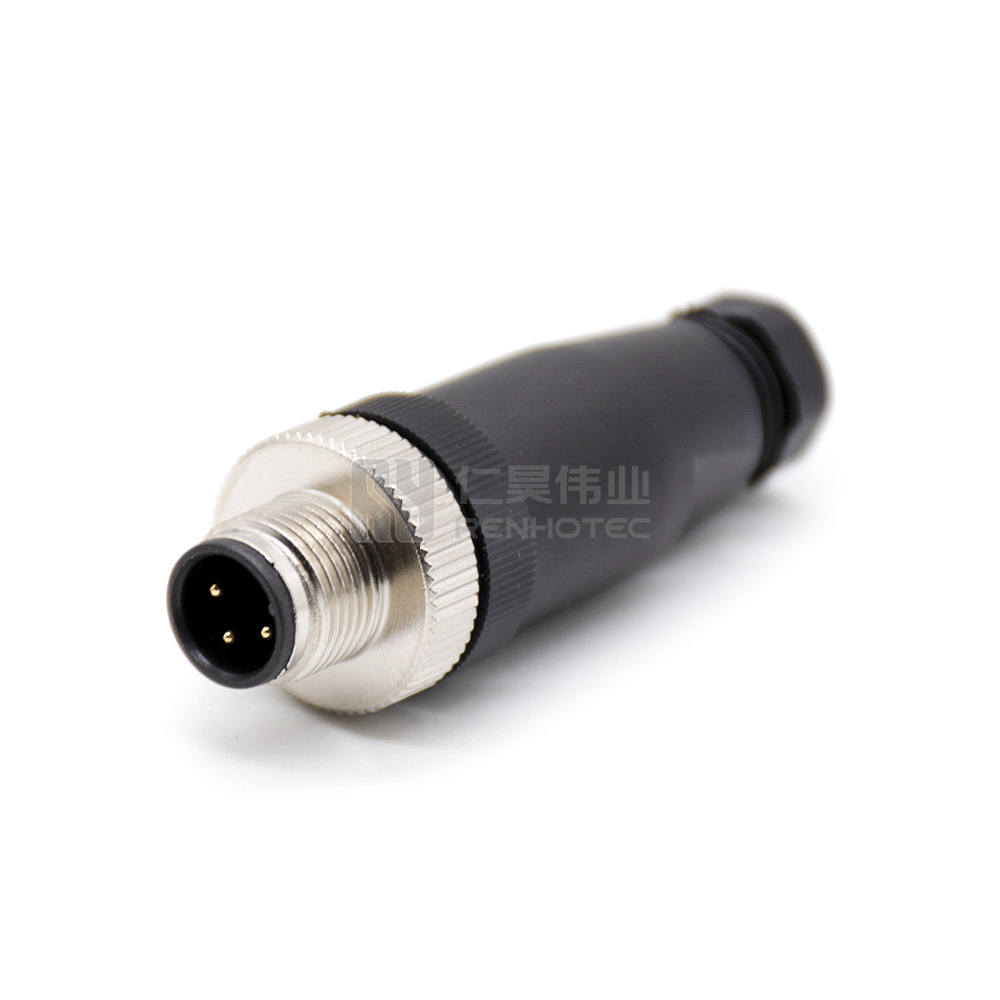

Sensor Waterproof M12 A Code 3 Pin Plastic Shell Male screw lock type
M12 Circular Connector is Designed for Washdown and Corrosive Environments, Primarily Used in Factory Automation Applications for Actuators, Sensors, Industrial Ethernet, and Fieldbus.
M12 Series with Ip67/68 Rating, Provides with 2 , 3 , 4 , 5 , 6 , 8 , 12 , 17 Contacts, Different Pin Match Specific Applications. E.g, Sensor and Power Applications Require 3 or 4 Pins; Profinet and Ethernet Require 4 or 8 Pin Counts; Fieldbus, Can Bus and Devicenet Typically Use 4 or 5 Pin Counts; and Signal Requirements Usually Employ 12 Pins.
We Supply Full Series of M12 with Field Wireable Connector, Molded Cable Connector, Panel Connector, Overmoled Cables, Wire Harness and Accessories. Pvc (general) or Pur (oil Resistant) Cables Available with Customized Length According to User Requirements .
Products Feature
M12*1 Thread Locking Mechanism, Anti-vibration Locking Design;
Easy Quick Connect and Disconnect Coupling;
Pin Configurations: 2, 3, 4, 5, 6, 8,12 and 17 Positions and Y Connectors;
A, B, C, D, K, L, X, S, T Coding Available;
X-coded Support Higher Bandwidth Needs of Up to 10 Gb/s;
Shield and Un-shield Version Available;
Meets Ip67/ip68 Waterproof Requirements;
Temperature Range: -25°c ~ + 85°c.
| Standard | IEC 61076-2-101 / 104 |
| Gender | Male / Female |
| Number of Contacts | 2 / 3 / 4 / 5 / 8 / 12 / 17 Pin |
| Coding | A / B / C / D / K / L / X / S / T Code |
| Termination | Soldering / PCB / Srew - Jo1nt |
| Cable length | Base on customer's request |
| Contacts plating | Gold plated, thickness 1 U" |
| Connection type | Single ended cable / Double ended cable |
| Orientation | Straight / Right Angle |
| Insert/ Housing | NYLON66 + GF |
| Overmold / Shell | Metal shell |
| Connector contacts | Brass with gold plated |
| Rated current | 4A: 3 / 4 / 5Pin 2A: 8 Pin 1.5A: 12 Pin |
| Rated Voltage | 250V: 3 / 4 / 5 Pin 60V: 8 Pin 30V: 12Pin |
| Ambient temperature | -40°C~ + 90°C |
| Coupling nut / screw | Brass with nickel plated screw |
| Insulation resistance | ≥100MΩ |
| Sealing | Epoxy resin |
| Contacts resistance | ≤5MΩ |
| Shielding | Non-Shielded |
| IP rating | IP67 IP68 |
If You Still Not Found a Suitable Product, Please Contact Us>>
M12 Circular Connector is mainly used in outdoor light boxes, construction machinery, steel production equipment, power equipment, mining machinery, ship machinery, automotive equipment, production automatic equipment, temperature transmitters, hydraulic machine tools, sensors, solenoid valves, instruments, Pressure transmitters and more.
• Miniature Sensors • Industrial Camera • Electrical Bike
• Packaging • Labeling & Logistic • Factory Automation and Fieldbus Module
