Model Number:
-
MINI SLIDE SWITCH MSK2210S
-
Max. Current:
-
0.5A
-
Mechanical Life:
-
50000 CYCLES
-
Product name:
-
Mini Slide Switch
-
Material:
-
PA66/Brass/Stainless steel
-
Travel:
-
2.0mm
-
Operating force:
-
160gf/250gf
-
Certification:
-
Reach, RoHs, CCC, TUV, ISO9001
Quick Details
-
Max. Voltage:
-
50VDC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WINTAI MINI SLIDE SWITCH
-
Model Number:
-
MINI SLIDE SWITCH MSK2210S
-
Max. Current:
-
0.5A
-
Mechanical Life:
-
50000 CYCLES
-
Product name:
-
Mini Slide Switch
-
Material:
-
PA66/Brass/Stainless steel
-
Travel:
-
2.0mm
-
Operating force:
-
160gf/250gf
-
Certification:
-
Reach, RoHs, CCC, TUV, ISO9001
Products Description

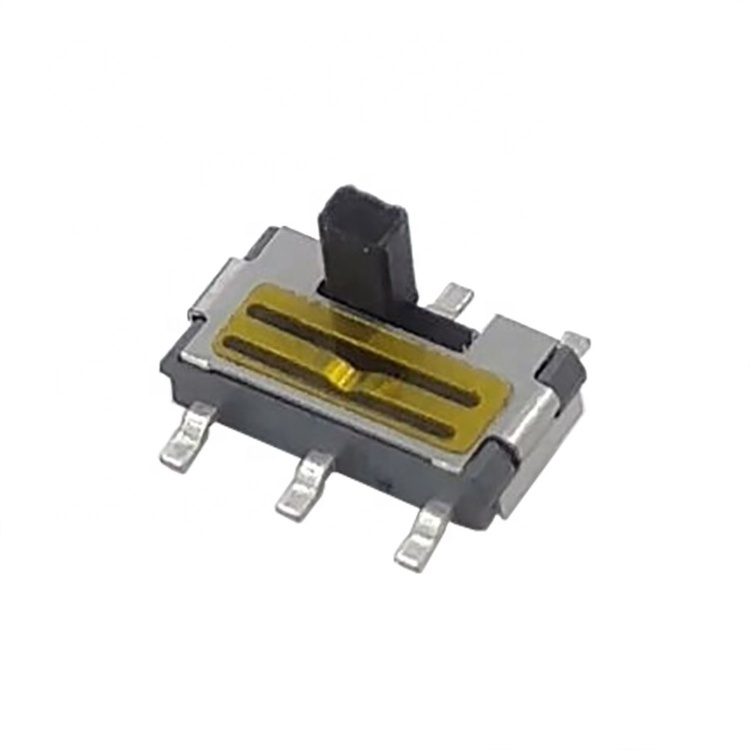

1P2T Mini Slide Switch
WINTAI Technology has ultra-miniature, standard, high-current slide switches suitable for surface mounting and panel mounting of printed circuit boards. Available with SPST, SPDT, SP3T, DPST, DPDT, 3PDT, 4PDT and 4P3T functions,
provides slide switches with positive detent, sealing, and shorting or non-shorting contacts options. Wintai Tech.
slide switches give engineers more design flexibility and options when it comes to size, mounting, actuation types, ratings and packages.
Details Images
The circuits characteristics
PCB installation method
|
Product Name
|
Mini Slide Switch
|
|
Current Rating
|
0.3A 20VDC
|
|
Circuit
|
2P2T
|
|
Travel
|
2.0mm
|
|
Timing
|
Non-shorting
|
|
Operating Force
|
160gf, 250gf
|
|
Operating Temperature
|
-25
o
C ～ +80
o
C
|
|
Life Time
|
50,000 Cycles
|
Product Paramenters
Product Structure Description
Generally speaking, the slide switch is composed of 5 parts,
such as actuator stem, frame, base, terminals and contact clip. as shown on the right.
(1) Actuator stem(knob) , is made of nylon. (2) Frame, is made of steel strip and NI plated. (3) The base, is made of natural phenolic resin. (4) Terminals, are made of brass strip Ag plated.Normally, there are 3-20 pins, or more. (5)contact clip，are made of PBS strip, Ag plated.
(1) Actuator stem(knob) , is made of nylon. (2) Frame, is made of steel strip and NI plated. (3) The base, is made of natural phenolic resin. (4) Terminals, are made of brass strip Ag plated.Normally, there are 3-20 pins, or more. (5)contact clip，are made of PBS strip, Ag plated.
