2 adopt 2P hydraulic pressure cylinder to press down, with high transfer pressure;
3. Adopt double straight elbow hydraulic cylinder lifting type, the speed is relatively fast;The machine runs more stably.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
110/ 220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LC
-
Model Number:
-
LC-TH-280SK
-
Usage:
-
Lipstick/Pencil/Bottle Printer
-
Dimensions(L*W*H):
-
900 * 750 *1900mm
-
Weight:
-
230 KG
-
Product name:
-
Automatic Heat Transfer Machine For Skateboard
-
Printing color:
-
single/ multicolor
-
Drive:
-
Hydraulic, frequency conversion motor
-
The maximum printing speed:
-
150-200pcs / hr
-
Hot stamping temperature:
-
0-300℃
-
Hot stamping pressure:
-
≤2000kgf
-
Rubber roller size:
-
250*280mm
-
Keywords 1:
-
heat press machine for skateboard
-
After Warranty Service:
-
Video technical support
Quick Details
-
Condition:
-
New
-
Plate Type:
-
heat transfer printer
-
Color & Page:
-
Multicolor
-
Voltage:
-
110/ 220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LC
-
Model Number:
-
LC-TH-280SK
-
Usage:
-
Lipstick/Pencil/Bottle Printer
-
Dimensions(L*W*H):
-
900 * 750 *1900mm
-
Weight:
-
230 KG
-
Product name:
-
Automatic Heat Transfer Machine For Skateboard
-
Printing color:
-
single/ multicolor
-
Drive:
-
Hydraulic, frequency conversion motor
-
The maximum printing speed:
-
150-200pcs / hr
-
Hot stamping temperature:
-
0-300℃
-
Hot stamping pressure:
-
≤2000kgf
-
Rubber roller size:
-
250*280mm
-
Keywords 1:
-
heat press machine for skateboard
-
After Warranty Service:
-
Video technical support
Product Information
Special Heat Transfer Printing
Machine For Skateboard
2 adopt 2P hydraulic pressure cylinder to press down, with high transfer pressure;
3. Adopt double straight elbow hydraulic cylinder lifting type, the speed is relatively fast;The machine runs more stably.
4. The oil cylinder drives up and down with an adjustable stroke of 75MM;
5. Temperature and transfer time can be adjusted;High precision, excellent stability of the whole machine;
5. Temperature and transfer time can be adjusted;High precision, excellent stability of the whole machine;
6. The height of hot stamping head can be adjusted;Heat pipe adopts single heat conduction in series, so that the hot stamping head temperature is uniform.
Specifications
|
Model Number
|
TH-280SK
|
Up and down stroke of hydraulic cylinder
|
75mm
|
|
Maximum workpiece height
|
50mm
|
Hot stamping temperature selection range
|
0 ~ 300℃
|
|
Heating power
|
4100W
|
Range of hot stamping pressure
|
≤ 2000kGF
|
|
printing speed
|
150-200 PCS/H
|
Printing color
|
single color/ multicolor
|
|
Weight
|
230KG
|
Size
|
900*750*1900mm
|

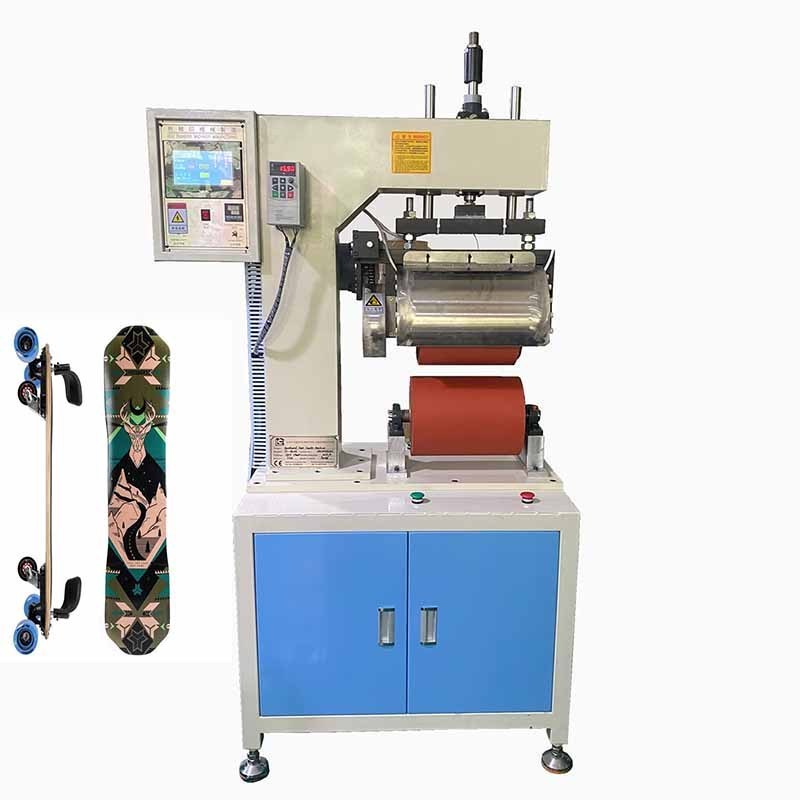

Machine Picture
Printing sample
More sample pictures and video of the machine , please contact with us.
Matters need attention
Machine operation safety performance:
2.The machine is equipped with an emergency switch: press the emergency switch when there is an emergency, the machine will immediately power off.
3.Return to the starting position, and when the matter is handled, twist the emergency switch, it can be safely started back to normal.
1. Skateboard single-head heat transfer printing machine, in line with the latest engineering style. After the setting program stops the main power supply, the perm motor will be cut off automatically after working for 50 minutes (to protect the rubber
roller from being burnt out in the high temperature state). It is absolutely reliable to use as required.
roller from being burnt out in the high temperature state). It is absolutely reliable to use as required.
2.The machine is equipped with an emergency switch: press the emergency switch when there is an emergency, the machine will immediately power off.
3.Return to the starting position, and when the matter is handled, twist the emergency switch, it can be safely started back to normal.
Notice:
(1) When the machine needs to be moved or repaired, the power supply and air source must be cut off.
(2) When adjusting or cleaning the oil scraping, please follow the steps.
(3) Enhance fire awareness and equip with fire fighting equipment.
