Quick Details
-
Mounting Type:
-
screw fixing
-
Description:
-
lamp switch, photocell
-
Model Number:
-
ST316
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Starlux
-
Theory:
-
light sensor
-
Output:
-
220V
-
Product name:
-
Light control sensor
-
Material:
-
PC (UV proof)
-
Color:
-
White/Black
-
Power Source:
-
220-240V/AC
-
Power Frequency:
-
50/60Hz
-
IP protection level:
-
IP65
-
Rated Current:
-
15A
-
Ambient Light:
-
<2-100LUX (adjustable)
-
Certification:
-
CE Rohs
-
Warranty:
-
3 Years
Quick Details
-
Usage:
-
lamp switch
-
Series:
-
phtotocell
-
Features:
-
light sensor
-
Mounting Type:
-
screw fixing
-
Description:
-
lamp switch, photocell
-
Model Number:
-
ST316
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Starlux
-
Theory:
-
light sensor
-
Output:
-
220V
-
Product name:
-
Light control sensor
-
Material:
-
PC (UV proof)
-
Color:
-
White/Black
-
Power Source:
-
220-240V/AC
-
Power Frequency:
-
50/60Hz
-
IP protection level:
-
IP65
-
Rated Current:
-
15A
-
Ambient Light:
-
<2-100LUX (adjustable)
-
Certification:
-
CE Rohs
-
Warranty:
-
3 Years

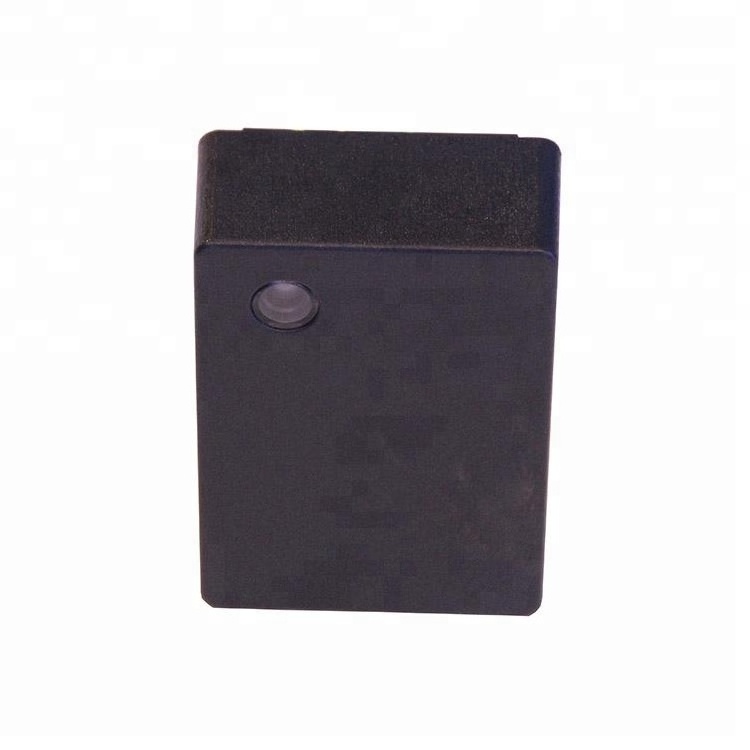

Welcome to use ST316 light-control sensor!
3 Years warranty IP44 Waterproof Mini Rectangle ST316 Light control sensor Photocell sensor automatic switch movement sensor
The product can turn on or turn off light automatically according to ambient-light. Ambient temperature and humidity can’t affect it. It is not only convenient but also practical; it can control the load working only at night. It is used for road light, garden light etc.
SPECIFICATION:
Power source: 220-240V/AC Power Frequency: 50/60Hz
Rated Current: 15A Ambient Light: <2-100LUX (adjustable)
Working Temperature: -20~+40 ℃ Working Humidity: <93%RH
Lifetime and Warranty:
| Lifetime(hr) | 26000-45000 at least |
| Warranty | 3 years |
INSTALLATION:
Ø Switch off the power.
Ø Loose one screw on the bottom and unload the cover.
Ø Connect the wire with the product as per the connection-wire diagram.
Ø According to the correct installation place, install the product with the enclosed inflated screws.
Ø Install back the cover. Switch on the power, and then test it.
CONNECTION-WIRE DIAGRAM:
TEST:
Ø Slide the LUX knob to position moon and switch on the power.
Ø When you test in daytime. You should cover a black opaque cloth on the product.
Ø When the cloth mantles the detection window of the photocell, the ambient light of the photocell is less than 2 LUX, the lamp will be on.
Ø When you take off this cloth, the lamp will be off automatically.
Ø When you slide the LUX knob to position sun, the lamp could be on in the ambient light less than 100LUX.
NOTE:
Ø In front of the photocell, it should be no obstruction affecting to accept natural light;
Ø In front of the photocell, it should be no swaying object.
Ø Don’t install the photocell under the light or in the place where the light will be irradiated to the photocell.
PRODUCT CAPACITY:
Our company adopts automatic machines,such as:SMD,auto component inserter,wave solder,auto injection machine and so on.And the daily output is up to 20000~30000pcs.
CERTIFICATE:
The concept of our company is"advocating new modern living environment",which focuses on researching and developing the contemporary household intelligent product.Our product can be truly satisfied for different customer's requirement,most of them are available with CE GS ROHS R&TTE REACH certification
