Quick Details
-
Brand Name:
-
LTMG
-
Fork Length:
-
1150mm
-
Fork Width:
-
155mm
-
Overall Dimensions:
-
1570*786*1597mm
-
Weight (KG):
-
350 kg
-
Product name:
-
self loading stacker
-
Rated Capacity:
-
500kg / 700kg / 1000kg
-
Load Center:
-
400mm
-
Lifting height:
-
0.8-1.6m
-
power unit:
-
battery
-
Tire type:
-
Nylon
-
color:
-
Customer Demanded
-
min.turning radius:
-
1100mm
-
Lifting speed:
-
55mm/s
-
Marketing Type:
-
New Product 2022
Quick Details
-
Min. Lifting Height:
-
0
-
Warranty:
-
1 Year
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
LTMG
-
Fork Length:
-
1150mm
-
Fork Width:
-
155mm
-
Overall Dimensions:
-
1570*786*1597mm
-
Weight (KG):
-
350 kg
-
Product name:
-
self loading stacker
-
Rated Capacity:
-
500kg / 700kg / 1000kg
-
Load Center:
-
400mm
-
Lifting height:
-
0.8-1.6m
-
power unit:
-
battery
-
Tire type:
-
Nylon
-
color:
-
Customer Demanded
-
min.turning radius:
-
1100mm
-
Lifting speed:
-
55mm/s
-
Marketing Type:
-
New Product 2022
Advantages
Swing guide wheels are installed under the movable gate to push the body into the cabin
smoothly.
smoothly.
Scalable support frame , making the stacker more stable and safe.
Sealed batteries free of maintenance safe operation and no pollution.
Leg adopts the seamless moment tube, chromium plating.
|

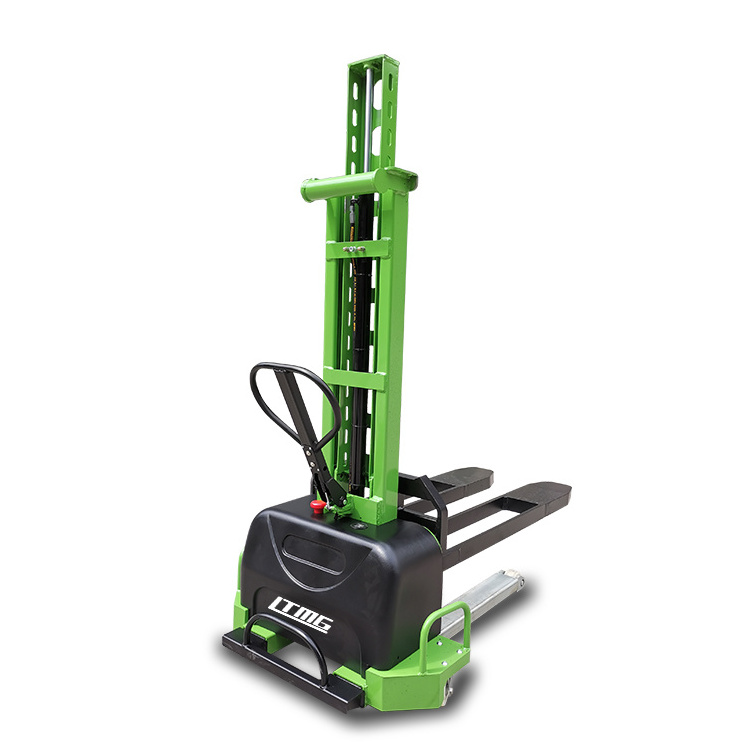

Semi/Full Electric Self Lifting Stacker
|
|
|
|
|
|
|||||
|
Model
|
|
|
ERB05/SERB05
|
ERB07/SERB07
|
ERB010/SERB10
|
|||||
|
Performance
|
Maximum load capacity
|
kg
|
500
|
700
|
1000
|
|||||
|
|
with load center at
|
mm
|
400
|
400
|
400
|
|||||
|
|
Weight （with battery）
|
kg
|
245
|
280
|
300
|
|||||
|
|
Maximum lifting height
|
MM
|
1300
|
1300
|
1300
|
|||||
|
|
Lifting speed (without load)
|
mm/s
|
55
|
140
|
140
|
|||||
|
|
Lowered speed (without load)
|
mm/s
|
70
|
140
|
140
|
|||||
|
Dimensions
|
Overall length of frame
|
mm
|
1570
|
1658
|
1658
|
|||||
|
|
Overall width of frame
|
mm
|
786
|
900
|
900
|
|||||
|
|
Mast lowered height
|
mm
|
1158
|
1158
|
1158
|
|||||
|
|
Max height(mast lifted with backrest
|
mm
|
2375
|
2375
|
2375
|
|||||
|
|
Wheelbase
|
mm
|
758
|
985
|
985
|
|||||
|
|
Fork length
|
mm
|
1150
|
1150
|
1150
|
|||||
|
|
Fork outside width
|
mm
|
535
|
565/680
|
565/680
|
|||||
|
|
Fork thickness
|
mm
|
60
|
80
|
80
|
|||||
|
|
Min ground height
|
mm
|
20
|
20
|
20
|
|||||
|
|
Fork lowered height
|
mm
|
900
|
900
|
900
|
|||||
|
|
Minimum turning radius
|
mm
|
1100
|
1300
|
1300
|
|||||
|
Tire
|
Front wheel
|
mm
|
70*60
|
80*50
|
80*50
|
|||||
|
Motor
|
Type or driving motor
|
DC
|
|
|
|
|||||
|
|
Rated output
|
kw
|
0.75
|
0.75
|
0.75
|
|||||
|
|
Lifting motor
|
DC
|
|
|
|
|||||
|
|
Rated output
|
kw
|
0.8
|
0.8
|
0.8
|
|||||
|
Battery
|
Voltage
|
V
|
12/48
|
12/48
|
12/48
|
|||||
|
|
Capacity
|
AH
|
45/15
|
45/15
|
45/15
|
|||||
OEM/ODM
Shipping Plan
Factory Introduction
Certificate
Hot Products
Customer feedback
RFQ
1. Why choose us?
As a manufacturer, LTMG industrial is committed to offer not only electric forklifts with high quality and
performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory ?
LTMG industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders,forklift trucks,excavator and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate.
5.How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can we provide OEM service?
LTMG industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory ?
LTMG industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders,forklift trucks,excavator and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate.
5.How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products, we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements of your order.
6. Can we provide OEM service?
LTMG industrial can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
