Quick Details
-
Material:
-
SS316,Brass
-
Maximum Inlet Pressure:
-
4000psig(276Bar)
-
Outlet pressure range:
-
0-450psig(31Bar)
-
Port size:
-
1/4FNPT
-
Diaphragm:
-
Hastelloy/Stainless steel 316
-
Media:
-
Pure gases, standard gases and corrosive gases
-
CV:
-
0.05
-
Panel mounted:
-
Available
-
Weight:
-
1 kg
-
Port:
-
3/4/6 ports
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
NAI-LOK
-
Model Number:
-
NR11
-
Material:
-
SS316,Brass
-
Maximum Inlet Pressure:
-
4000psig(276Bar)
-
Outlet pressure range:
-
0-450psig(31Bar)
-
Port size:
-
1/4FNPT
-
Diaphragm:
-
Hastelloy/Stainless steel 316
-
Media:
-
Pure gases, standard gases and corrosive gases
-
CV:
-
0.05
-
Panel mounted:
-
Available
-
Weight:
-
1 kg
-
Port:
-
3/4/6 ports
General Description
NAI-LOK NR11 Serie stainless steel pressure regulators, single stage diaphragm construction,stable output pressure, applied to pure gases, standard gases and corrosive gases and so on.
Features
- Single stage pressure-reducing structure
- Body thread: 1/4"NPT(F)
- Desigh Proof Pressure:150% maximum rated
- Flow Capacity:CV=0.06
- Standard Optional:CGA,Relief valve,Pressure gauges,tube fitting,etc.
Technical Data
- Maximum inlet pressure: 4000PSIG
- Output pressure: 0-25,0-50,0-100,0-150,0-250,0-450psig
- Design Proof Pressure:150% maximum rated
|
Loading Spring Spring loading is used with direct acting regulators with handknob adjustment.
Sensing-Diaphragm Diaphragms provide sensitive and accurate regulation for outlet pressure ranges up to 500 psig / 34.5 bar
Body material Chrome plated brass,316L stainless steel
Venting Non-venting is standard
Panel Panel mounting is available |
|
NR11 Series Regulator Drawing
Specifications
| Maximun Inlet Pressure | 3500 psig (241 bar) |
| Outlet pressure ranges | 0-25,0-50,0-100,0-250,0-450 psig |
| Operating Temperature | -40°C to 74 °C |
| Flow Capacity | Cv=0.06 |
| Body | SS316 / Chrome plated brass |
| Diaphragm | Hastelloy / SS316 |
| Seat | Teflon |
| Size | 1/4 Female NPT |
| Weight | 0.9 kg |
| Option | CGA connector / gauge / panel / fitting |

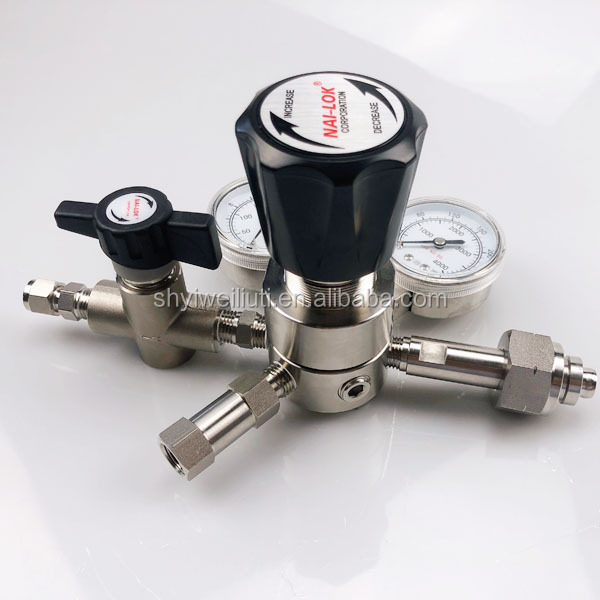

Pressure regulator with CGA cylinder connector,Purge valve,relief vavle
Pressure regulator with CGA cylinder connector
Application
NAI-LOK Cylinder manifolds,control 1 cylinder
NAI-LOK Semi-automatic changeover system,control 2 cylinder with purge valve.
Ordering information -NR11 Series
| BASIC SERIES | BODY MATERIAL | INLET AND OUTLET PORT TYPE | INLET AND OUTLET PORT SIZE | INLET PRESSURE | FLOW CAPACITY | PORT TYPE |
| NR11 | 1-Chrome plated brass | 0- 0-25 psig | 2- NPTF | 4- 1/4" |
1- 3500 psig C V =0.06 |
3 - 3 ports |
| 6-316L Stainless steel | 1- 0-50 psig |
2- 400 psig C V =0.15 |
4- 4 ports | |||
| 2- 0-100 psig | 6 - 6 ports (with relief valve) | |||||
| 3- 0-250 psig | ||||||
| 5- 0-450 psig | ||||||
| with 3500psi inlet only |
