Quick Details
-
Lamp Luminous Flux(lm):
-
R58/G162/B54
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-20 - 60
-
Color Rendering Index(Ra):
-
85
-
Item Type:
-
Light Strips
-
Emitting Color:
-
Changeable
-
Certification:
-
ce&RoHS
-
Other name:
-
led pixel 6803 waterproof digital bar
-
LED Type:
-
SMD5050 RGB
-
LED Quantity:
-
30/m
-
Beam angle:
-
140 degree
-
Dimension:
-
1000mm(L)*14mm(W)*10mm(H)
-
LED Light Source:
-
Epistar
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
SJ-A10030-6803
-
Input Voltage(V):
-
12V
-
Lamp Luminous Flux(lm):
-
R58/G162/B54
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-20 - 60
-
Color Rendering Index(Ra):
-
85
-
Item Type:
-
Light Strips
-
Emitting Color:
-
Changeable
-
Certification:
-
ce&RoHS
-
Other name:
-
led pixel 6803 waterproof digital bar
-
LED Type:
-
SMD5050 RGB
-
LED Quantity:
-
30/m
-
Beam angle:
-
140 degree
-
Dimension:
-
1000mm(L)*14mm(W)*10mm(H)
-
LED Light Source:
-
Epistar
LED edit software LED stripe IC LPD 6803 multi color led light programmable bar
Features:
1- Controllable 6803 IC included,1 IC control 3leds
2- Each LED bar is constructed of high grade Aluminum to provide an adequate heat sink to ensure an efficient, long and bright LED life
3- Each rigid LED bar light is supplied with an input and an output cable. The input cable can be connected
with a 12V power supply or another rigid bar, the output cable can connect with another LED light bar or
can be removed to end the circuit.
4- additional extension cables can be plugged into the circuit for installations that require longer cabling
between components of the circuit.
Specification:
| LED Type/brand | SMD5050 Grade A(top qualilty) |
| LED Quantity | 30/m |
| Energy Rating | A |
|
LED Power Consumption |
24W/m |
|
Input Voltage |
12 V DC |
|
Colour |
Dream color(ICRGB) |
|
Beam angle |
140° |
|
Operating Temp |
-20°c-60 °c |
| IC Chip | LPD6803 |
| Average life | 50,000 hours |
| Emitting color | RGB full color |
| Dimension | 1000mm(L)*14mm(W)*10mm(H) |
| waterproof rate | IP65 |
| Warranty | 2 years |
| Certificates | CE&RoHS |

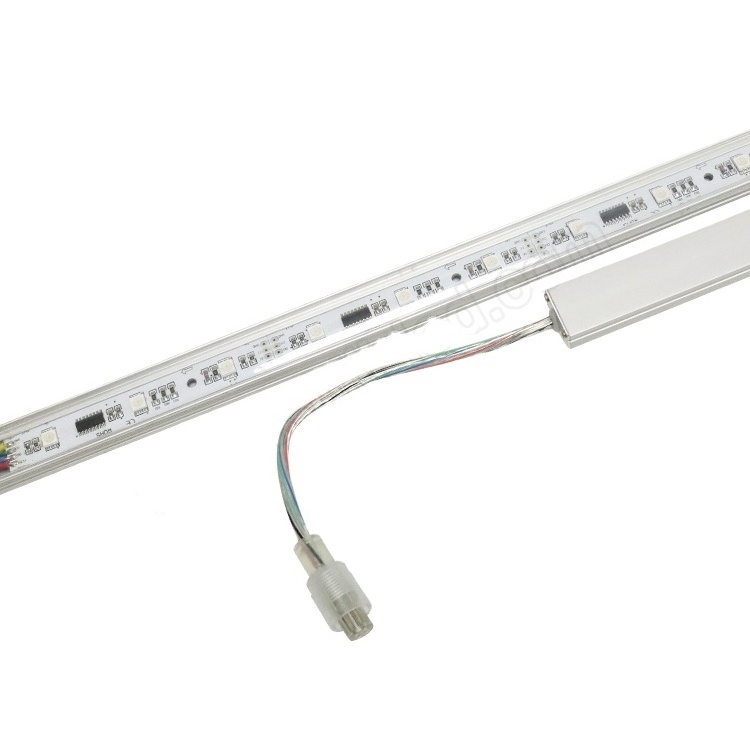

Product Images:
Connection:
1) Signal wire: DC+,GND,DAT,CLK
2) DC+ and GND connect to power supply;DAT and CLK connect to controller
3) Relative Controller: SPI controller support LPD6803; when use DMX decorder, can connect to DMX system
4) Support online control
3.Installation:
Each light bar is supplied with 2 metal clips - screw the clips to a surface then push the light bar into the clips to
secure.
4.CE and ROHS approved to comply with Europe safety regulations.
Related Products:
Christmas led strip lights outdoor use 12v 1903 led outdoor lighting strip
Hot selling led tube lighting 48leds/m madrix led tube 24v rigid led light bar
Applications:
This rigid LED Strip light can be used around the home as under cabinet kitchen lighting, cove lighting,
shelf lighting and around home media systems. It's also ideal for display cabinets in shops/museums as it's
easily concealed, uses little energy, creates little heat and can be installed quickly and easily.
Shipment :
1.Goods will be delivered within 3-5 working days after the payment received;
2.We ship item via Door to Door service express or air and sea.
Service:
1. Reply you in 24 hours .
2.Experienced staffs answer all your questions in fluent English
3.Customized design is available. OEM&ODM are welcomed .
4. Exclusive and unique solution can be provided to our customer by our well trained and professional engineer.
5.Special discount and protection of sales area provided to our distributor
Warranty:
1.All products we sell are in good quality and have been tested before they are shipped out
2.We offer 2 years Warranty
certification:
