Quick Details
-
Brand Name:
-
Henghui
-
Weight:
-
780 KG
-
Power:
-
1.1kw
-
After-sales Service Provided:
-
Service Machinery Overseas
Quick Details
-
Type:
-
Braiding machine
-
Production Capacity:
-
2000sets/month
-
Place of Origin:
-
Jiangsu China
-
Brand Name:
-
Henghui
-
Weight:
-
780 KG
-
Power:
-
1.1kw
-
After-sales Service Provided:
-
Service Machinery Overseas
Product Application
Suitable for making fiberglass sleeve, PET sleeve, nylon sleeve, carbon fiber sleeve, fishing rod sleeve.
|

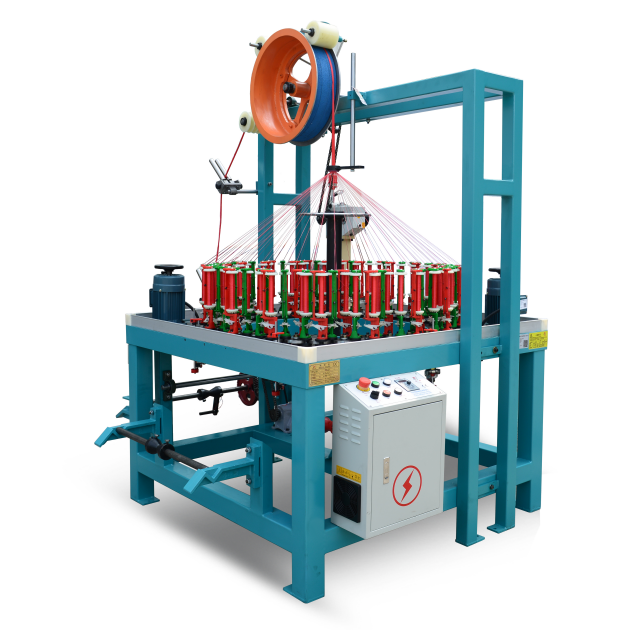

Specification for KBL-72-1-90 sleeve braiding machine
|
|
|
|
|||
|
Model
|
|
KBL-72-1-90
|
|
|||
|
Carriers/Spindles
|
|
72
|
|
|||
|
Heads
|
|
1
|
|
|||
|
Series/Horngear size in mm
|
|
90
|
|
|||
|
Bobbin Size in mm
|
|
OD47*139mm
|
|
|||
|
Power in KW
|
|
1.1*2kw
|
|
|||
|
Horngear Speed in RPM
|
|
330RPM
|
|
|||
|
Autostop system
|
|
YES
|
|
|||
|
Material aviable
|
|
any textile yarn, fiberglass , carbon fiber, PP PE COTTON, NYLON, ETC.
|
|
|||
|
Products
|
|
Suitable for making fiberglass sleeve, PET sleeve, nylon sleeve, carbon fiber sleeve
|
|
|||
|
take-up device
|
|
optional
|
|
|||
Main Features
1
)
.Space saving, because of compact design
2).Easy to operate and maintain
3).Top-class parts and long service life.
4).Low HP and low electricity cost.
5).Machine stops automatically in case of yarn breakage or exhausted
6).During the process of braiding,there is no spraying oil which is especially suitable for the transparent materials.
7).Density (picks/cm) of produced cord is adjustable by change gears
8).Continuous attendance of operator is not required
9).Vast application area(Include the function of hybrid braiding wire& chemical fiber)
10).The machine can be equipped with fully cover which can reduce the noise
by 80%.
Henghui Braiding Machine
XUZHOU HENGHUI BRAIDING MACHINE CO.,LTD,
SHANGHAI HENGHUI INTERNATIONAL CO.,LTD,
89.8 million yuan , is a national high -tech enterprise specializing in R & D, production, and sales of braiding machine.
Henghui covers an area of 163000 square meter, has more than 600 employees. The company's production processes involve casting,heat treatment, mechanical processing, assembly, surface spraying, etc., Henghui have 550 leading processing equipment . 36 units large-scale boring and milling CNC machines, 320 sets CNC composite lathes, CNC lathes. Digital and intelligent CNC precision grinding machines and precision detection instruments ensure the processing accuracy of parts and components.
Henghui has established provincial special braiding machine engineering technology research center and provincial enterprise technology center, established a doctoral innovation practice base, graduate workstation and special braiding machine technology and equipment R & D centers , which gathering high-end R & D talents from domestic universities and industry, and obtained a number of core technologies with independent intellectual property rights. It has obtained 31 national invention patents and 75 practical new patents.
B. Products :The No. of spindles from 3-648 : ropes braiding machine(thin and giant); fashion belt braiding machine, fashion shoelace braiding machine; ribbon & lace braiding machine; fiber glassPET/carton fiber sleeve braiding machine; hose braiding machine(flexible hose, water hose, pet hose, etc); wire & cable braiding machine(high temperature wire, coaxial cable);Medical material braiding machine,shoelace tipping machine;bobbin winding machine; shuttleless looming machine, etc.
C. Why Us
1. 37 years experience in manufacturing braiding machine, with more than 1800kinds braiding machines
2 We are the manufacturer and offer the first-hand price.
3 We can promise you a short lead time, with 5 factories
4 Special technical requirement is realizable (machine-customized according to the clients's needs and requirements.)
5 All technical problems are solved quickly and efficiently.
6 The supply of spare parts - even for very old machines - is absolutely reliable and trouble-free.
7 Good contacts and agencies throughout the world create service on the spot without delay.
8 Small trial orders would also be welcome!
2. Customers
Our machines are very popular in Vietnam, Bangladesh, India, Thailand, Korea, Japan, Philippines, Sri Lanka, Pakistan, Turkey, Indonesia, New Zealand, Australia, UAE, South Africa, Egypt, Nigeria, Tunisia, Morocco, Kenya, Ethiopia, Italy, Germany, Poland , Spain, Belarus, Czech Republic, Ukraine, Switzerland, Russia, Netherlands, Serbia, United States, Canada, Mexico, Guatemala, Honduras, Dominica, Colombia, Venezuela, Ecuador, Peru, Brazil, Bolivia, Chile, Argentina, Paraguay, Uruguay , and many other countries etc. by providing 'Quality Products, Excellent Service and Competitive Prices.We are always looking forward to even greater cooperation with overseas customers based on mutual benefits.We are trying our best to provide the best braiding solution!
3. Exhibitions
