Quick Details
-
Model Number:
-
Interactive board
-
Weight:
-
91KG
-
Panel Type:
-
LCD
-
Packing Dimension:
-
211*133*26(cm)
-
Product Dimension:
-
196*118*10(cm)
-
Product name:
-
interative panel digital board
-
Application:
-
Office School Multimedia Machine
-
Function:
-
Learning/meeting
-
Life Time:
-
50,000 Hrs
-
Operating System:
-
Android + Win7/10 Optional
-
Touch screen:
-
20 Point IR Touch Panel
-
Certificates:
-
CE/CCC/FCC/ROHS/ISO9001
-
Warranty:
-
1 Year
Quick Details
-
Panel Size:
-
86inches
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HUSHIDA
-
Model Number:
-
Interactive board
-
Weight:
-
91KG
-
Panel Type:
-
LCD
-
Packing Dimension:
-
211*133*26(cm)
-
Product Dimension:
-
196*118*10(cm)
-
Product name:
-
interative panel digital board
-
Application:
-
Office School Multimedia Machine
-
Function:
-
Learning/meeting
-
Life Time:
-
50,000 Hrs
-
Operating System:
-
Android + Win7/10 Optional
-
Touch screen:
-
20 Point IR Touch Panel
-
Certificates:
-
CE/CCC/FCC/ROHS/ISO9001
-
Warranty:
-
1 Year

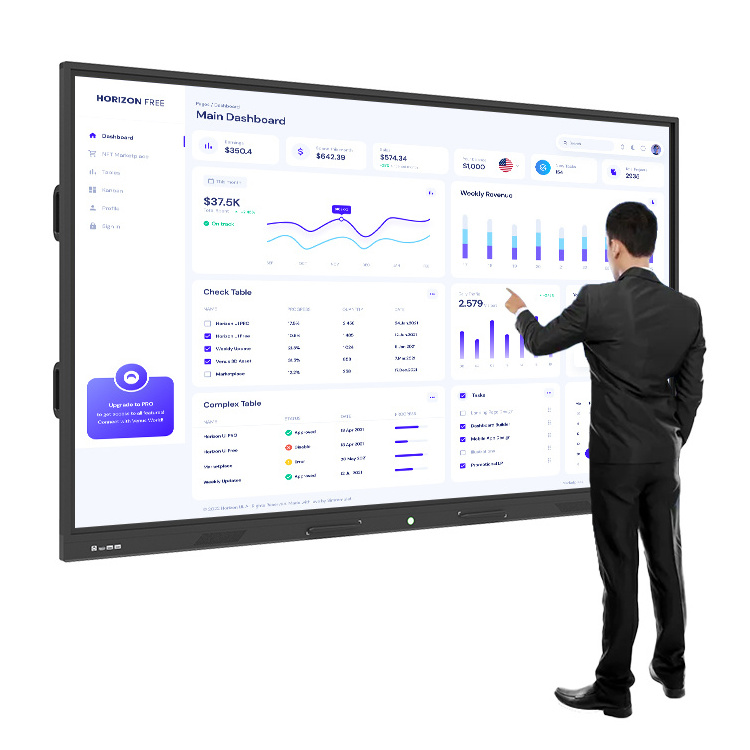

86 inch Interactive Flat Panel Smart Interactive Touch Board LCD Touch Screen Display 55 ~86 inch Interactive Board
Una pizarra blanca interactiva (IWB), también conocida como pizarra interactiva o pizarra inteligente, es una gran pantalla interactiva en forma de pizarra blanca con capacidad táctil. Puede ser un equipo de pantalla táctil independiente que se utiliza para realizar tareas y operaciones, o un aparato conectable que se utiliza como panel táctil para controlar ordenadores desde un proyector.
A. Product characteristics
1.Od20mm ultra-thin module, thickness ≤ 86mm
2.4K HD display, AG anti-glare tempered glass, Mohs grade 7 hardness, the picture is more soft and clear
3. Dual system Windows and Android switch freely, integrated in computer, Android TV, touch screen and electronic whiteboard
4. In order to ensure the integrity of the whole machine, the hidden pluggable wireless module is adopted, and the whole machine has no extended antenna; Built in audio and video module, no convex structure.
5.Accessories: microphone(optional) , camera(optional) , wireless screen(optional) , Bracket (optional).
6.The product can turn off and turn on the LCD backlight with one key without turning off the power supply of the whole machine, so as to reduce the power consumption by more than 80%.
7.Automatically adjust the backlight brightness according to the ambient light, saving energy and protecting eyes.
8. Used for Conference training/ Classroom Teaching
B.Health protection
1.Non flicker:DC dimming, no flickering when taking pictures with mobile phones, the technology can meet the requirements of Flicker free, and the eye protection is healthier
2.The buttons and writing pen use antibacterial materials, no bacteria (Escherichia coli, Staphylococcus aureus) remain, and the antibacterial rate is >99.99%, giving users a healthier use environment;
C.Aftersale services advantages
1.Six-in-one motherboard design (power board, motherboard, OPS adapter board, OPS power supply, rocker switch & AC socket board, backlight driver board, six-in-one board), the whole machine is more integrated, and the wiring layout is simple.
2.Only need to disassemble the back cover of the camera, you can realize the detection and maintenance of the camera & microphone module, without disassembling the whole machine.
3.The number of screws is reduced by half, easier for maintenance.
Model | |
Brand | HUSHIDA |
Name | All-in-one teaching conference machine |
LCD Panel | |
Size | 50/55/65/75/86/100 inch |
Panel Brand | LG,BOE(gauge A screen) |
type | TFT-LCD S-PVA |
Resolution | 3840 × 2160 (UHD) @60hz |
Brightness | 450cd/m² |
Ratio contrast | 2000:01:00 |
Visual Angle (horizontal/vertical) | 178°/178° |
Response time | 8ms |
Visual area(mm) | 1895(W)×1066(H) mm |
Color gamut (NTSC) | 72% |
Backlight | WLED |
display scale | 16:09 |
Response time | <8ms |
life | >60000H |
Infrared touch characteristic | |
Touch the specifications | Infrared touch frame |
glass | 4mm tempered glass |
Glass transmittance |
> 88% (higher transmittance depends on glass surface treatment technology such as AR/AG) |
Object induction number (IR) | Touch at 20 |
Number of infrared induction lines (W D) | 32767 × 32767 |
Positional accuracy | More than 90% of the touch area is 2mm |
The interface definition | USB 2.0(Full speed) |
Touch the strength | Zero pressure touch |
The light resistance | It has light resistance |
Induction life | 6 million times |
The response time | <8ms |
The power supply mode | Full duplex usb-powered DC +5V up to 500mA |
