Quick Details
-
Brand Name:
-
EASUN POWER
-
Model Number:
-
ICharger-MPPT-4880
-
Work Time (h):
-
Accept Setting
-
Max PV Power:
-
11600W
-
Max PV Voltage:
-
12V 24V 36V 48V
-
Certificate:
-
CE
-
Warranty:
-
1 Year
-
Current:
-
80A 100A
-
Mximum Battery Current:
-
80Amps
-
Battery Voltage:
-
12V 24V 36V 48V
-
Maximum Solar Input Voltage:
-
145V
-
Radiating Mode:
-
Fan cooling
-
Application2:
-
solar Regulator
-
Over-charging voltage:
-
15.5V/30.0V/45.0V/60.0V
-
Over-charging comeback voltage:
-
14.5V/29.5V/44.5V/59.0V
-
Mounting:
-
Wall mount
-
Peak Conversion Efficiency:
-
MPPT Efficiency 99%
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Solar System Controller, Solar Charge Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EASUN POWER
-
Model Number:
-
ICharger-MPPT-4880
-
Work Time (h):
-
Accept Setting
-
Max PV Power:
-
11600W
-
Max PV Voltage:
-
12V 24V 36V 48V
-
Certificate:
-
CE
-
Warranty:
-
1 Year
-
Current:
-
80A 100A
-
Mximum Battery Current:
-
80Amps
-
Battery Voltage:
-
12V 24V 36V 48V
-
Maximum Solar Input Voltage:
-
145V
-
Radiating Mode:
-
Fan cooling
-
Application2:
-
solar Regulator
-
Over-charging voltage:
-
15.5V/30.0V/45.0V/60.0V
-
Over-charging comeback voltage:
-
14.5V/29.5V/44.5V/59.0V
-
Mounting:
-
Wall mount
-
Peak Conversion Efficiency:
-
MPPT Efficiency 99%
EASUN POWER Factory Wholesale 80A 100 Amp 36V 48V with Max PV Input 150VDC MPPT Solar Controller Charger Regulator
Feature:
80A MPPT solar charge controller(Fan cooling)
12V/24V/48V (auto detection);36V(setting)
MPPT efficiency>99%,Peak conversion
efficiency >98%
DSP processors technology ensure high
speed and performance
Multi-stage charging mode
Protection: PV array short circuit ,
PV reverse polarity , Battery reverse polarity ,
Over charging , Output short circuit
Equalization charging function
BTS function
80A MPPT solar charge controller(Fan cooling)
12V/24V/48V (auto detection);36V(setting)
MPPT efficiency>99%,Peak conversion
efficiency >98%
DSP processors technology ensure high
speed and performance
Multi-stage charging mode
Protection: PV array short circuit ,
PV reverse polarity , Battery reverse polarity ,
Over charging , Output short circuit
Equalization charging function
BTS function

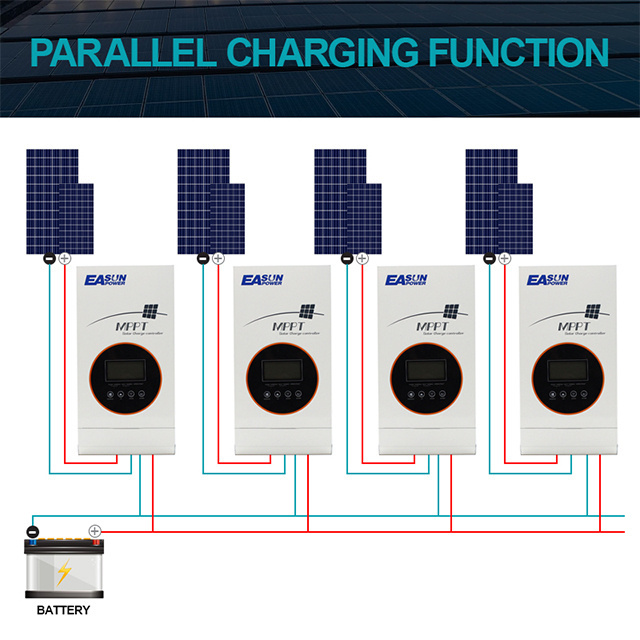

you can Put two pieces 80A in parallel ,So total is MPPT 160A
Support unlimited parallel connection
Support unlimited parallel connection
Specification
|
MODEL
|
|
ICharger MPPT-4880
|
|
|
|
||||
|
Nominal Battery System Voltage
|
|
12V\24V\48VDC (Auto detection); 36V (Setting)
|
|
|
|
||||
|
CONTROLLER INPUT |
Battery Voltage
|
12V
|
24V
|
36V
|
48V
|
||||
|
|
Maximum Solar Input Voltage
|
100V
|
145V
|
|
|
||||
|
|
PV Array MPPT Voltage Range
|
15~95V
|
30~130V
|
45~130V
|
60~130V
|
||||
|
|
Maximum Input Power
|
12 Volt-1250W/24 Volt-2500W/36 Volt-3750W/48 Volt-5000W
|
|
|
|
||||
|
BATTERY |
Charging Set Points
|
Absorption Stage
|
|
|
Float Stage
|
||||
|
|
Flooded Battery
|
14.2V \ 28.4V \ 42.6V \ 56.8V
|
|
|
13.7V \ 27.4V \ 41.1V \ 54.8V
|
||||
|
|
AGM (Default)
|
14.4V \ 28.8V \ 43.2V \ 57.6V
|
|
|
13.7V \ 27.4V \ 41.1V \ 54.8V
|
||||
|
|
Over-charging Voltage
|
15.5V \ 30.0V \ 45.0V \ 60.0V
|
|
|
|
||||
|
|
Over-charging Comeback Voltage
|
14.5V \ 29.5V \ 44.5V \ 59.0V
|
|
|
|
||||
|
|
Battery Defect Voltage
|
10.0V \ 17.0V \ 25.5V \ 34.0V
|
|
|
|
||||
|
|
Temperature Compensation
Conefficient |
-5mv \ ℃ \cell (25℃ vef)
|
|
|
|
||||
|
|
Peak Conversion Efficiency
|
98% (MPPT Efficiency 99%)
|
|
|
|
||||
|
|
Mximum Battery Current
|
80Amps
|
|
|
|
||||
|
|
Max Charging Current
|
80amps continuous @ 40℃ ambient
|
|
|
|
||||
|
GENERAL
SPECIFICATION |
Radiating Mode
|
Fan cooling
|
|
|
|
||||
|
DISPLAY
& PROTECTION |
Protections |
Solar high voltage disconnect/Solar high voltage reconnect/Battery high voltage disconnect/Battery high voltage reconnect/High
temperature disconnect/High
temperature reconnect
|
|
|
|
||||
|
MECHANICAL SPECIFICATIONS |
Mounting
|
Wall mount
|
|
|
|
||||
|
|
Machine Dimension (W*H*D)
|
152*85*294 mm (per pcs)
|
|
|
|
||||
|
|
G.W (kg)
|
3kg/pcs
|
|
|
|
||||
|
|
Package Dimension (W*H*D)
|
625*366*232 mm (4pcs / Carton)
|
|
|
|
||||
|
|
Gross Weight (kg)
|
14kg
|
|
|
|
||||
|
OTHER |
Environmental Rating
|
Indoor
|
|
|
|
||||
|
|
Operation Temperature Range
|
-10~55℃
|
|
|
|
||||
|
|
Ambient Humidity
|
0~90% relative humidity (non-condensing)
|
|
|
|
||||
|
|
Altiude
|
≤3000m
|
|
|
|
||||
