Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WFP
-
Dimension(L*W*H):
-
1860*720*1450mm
-
Weight:
-
695
-
Rated power/speed:
-
63kw/1500rpm 70/2000
-
Marketing Type:
-
Hot Product
-
Type:
-
inline,water cooled,four-stroke,direct injiction,four-value
-
Starting system:
-
Electric Starter
-
Color:
-
As your request
-
Usage:
-
The main power for fixed power
-
Certificate:
-
ISO
-
Power factor:
-
0.8
-
Cooling System:
-
Closed circle water-cooled
-
Engine:
-
Cummins,Deutz, Ricardo, Weichai, Shangchai, Yuchai,
-
Engine type:
-
Water-cooled 4-stroke
Quick Details
-
Displacement:
-
6.49L
-
Emission Standard:
-
Euro 2
-
Power:
-
180HP, 20kw-330kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WFP
-
Dimension(L*W*H):
-
1860*720*1450mm
-
Weight:
-
695
-
Rated power/speed:
-
63kw/1500rpm 70/2000
-
Marketing Type:
-
Hot Product
-
Type:
-
inline,water cooled,four-stroke,direct injiction,four-value
-
Starting system:
-
Electric Starter
-
Color:
-
As your request
-
Usage:
-
The main power for fixed power
-
Certificate:
-
ISO
-
Power factor:
-
0.8
-
Cooling System:
-
Closed circle water-cooled
-
Engine:
-
Cummins,Deutz, Ricardo, Weichai, Shangchai, Yuchai,
-
Engine type:
-
Water-cooled 4-stroke

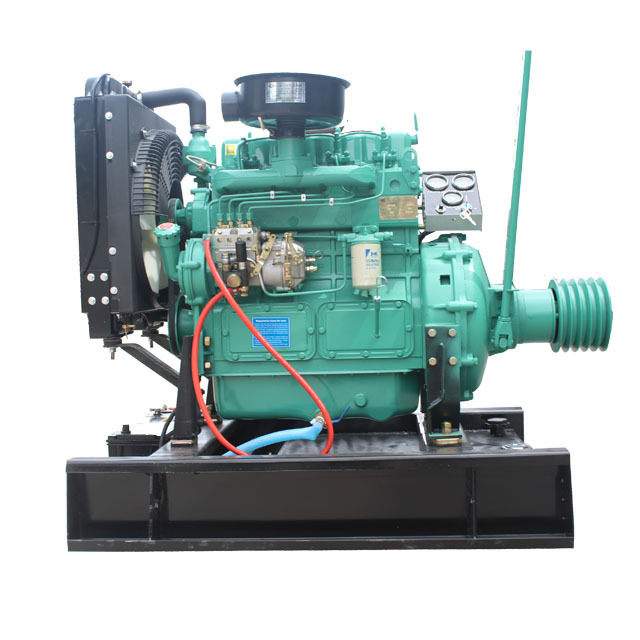

DIESEL ENGINE FOR STATIONARY POWER
Product Description
This series diesel engine can be widely used as the main power for fixed power,engineering machinery, agricultural machines and water pump set. The engines are developed on the basis of original model by optimizing its fuel system, to achieve high performance reliability and economical efficiency. The engines mainly have following features: lower oil consumption, higher reliability, bigger torque, easy starting & maintenance, and better adaptability.
Specification
|
Item
|
K4100P
|
K4100ZP
|
ZH4100ZP
|
R4105ZP
|
R6105P
|
R6105ZP
|
|||||
|
Prime power/1800rpm
|
30.1kw
|
41kw
|
50kw
|
60kw
|
63kw
|
84kw
|
|||||
|
Overload capacity
|
Can overload 10% for 1 hour every 12 hours
|
|
|
|
|
|
|||||
|
Displacement
|
3.61L
|
3.61L
|
4.33L
|
4.33L
|
6.49L
|
6.49L
|
|||||
|
Compression ratio
|
1:19
|
|
|
|
|
|
|||||
|
Governor type
|
Mechanical or Electronic
|
|
|
|
|
|
|||||
|
Intake type
|
T
|
T
|
TA
|
TA
|
T
|
T
|
|||||
|
Idle speed
|
≤600rpm
|
|
|
|
|
|
|||||
|
Max idle speed
|
≤1890rpm
|
|
|
|
|
|
|||||
|
Electric Starter
|
12V
|
|
|
|
|
|
|||||
|
Cooling method
|
Water-cooled by radiator
|
|
|
|
|
|
|||||
|
Fuel consumption
|
≤240g/kw.h
|
≤238g/kw.h
|
≤237g/kw.h
|
≤236g/kw.h
|
≤238g/kw.h
|
≤237g/kw.h
|
|||||
|
Oil consumption
|
≤1.83g/kw.h
|
≤1.83g/kw.h
|
≤1.63g/kw.h
|
≤1.63g/kw.h
|
≤1.60g/kw.h
|
≤1.60g/kw.h
|
|||||
|
Oil replaced period
|
250 working hours
|
|
|
|
|
|
|||||
|
Type of filters
|
Dry type
|
|
|
|
|
|
|||||
|
Interface size
|
SAE3# flywheel shell, 11.5' flywheel ; single bearing or double bearing
|
|
|
|
|
|
|||||
|
Packing size(mm)
|
1070x640x1030
|
1100x680x1110
|
1070x640x1070
|
1110x680x1130
|
1070x640x1070
|
1110x680x1130
|
|||||
|
Net weight(kg)
|
380
|
390
|
380
|
390
|
380
|
390
|
|||||
