Quick Details
-
Size:
-
4200mm 2800mm 1760mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Tong Yang
-
Power:
-
1.1
-
Name:
-
fabric folding laundry sheet folder machine
-
length:
-
3000mm
-
Used for:
-
Hotel.factory .laundry Hospital
-
Function:
-
sheets folding
-
Operation:
-
Full-automatic
-
Voltage:
-
220v/380v/415v/440v
-
Certification:
-
CE/ISO9001
Quick Details
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Free spare parts
-
Weight:
-
100kg
-
Size:
-
4200mm 2800mm 1760mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Tong Yang
-
Power:
-
1.1
-
Name:
-
fabric folding laundry sheet folder machine
-
length:
-
3000mm
-
Used for:
-
Hotel.factory .laundry Hospital
-
Function:
-
sheets folding
-
Operation:
-
Full-automatic
-
Voltage:
-
220v/380v/415v/440v
-
Certification:
-
CE/ISO9001

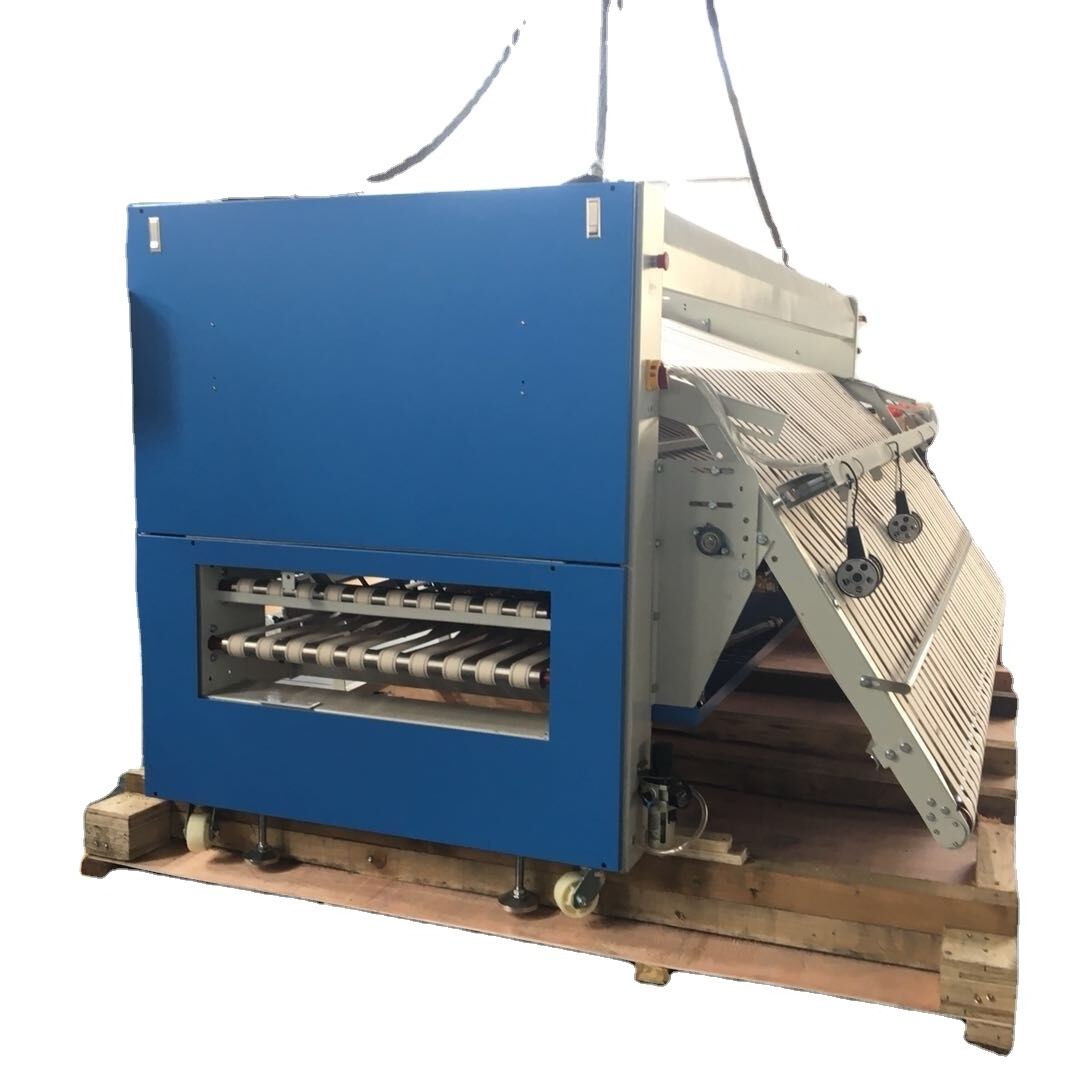

laundry sheet folder machine (quick five layers fold use for laundry bedsheet, textile and fabric folding):
Techincal Parameter
| Specification Model | Unit | ZD-3000V | ZD-3300V |
| Maximum folding width | mm | 3000 | 3300 |
| Maximum folding hierarchy | times | 5/32 | 5/32 |
| Maximum folding speed | m/min | 50 | 50 |
| Rated voltage | V/Hz | 380/50 | 380/50 |
| Motor power | Kw | 1.87 | 1.87 |
| Inlet diameter | mm | 12 | 12 |
| Minimum inlet pressure | Mpa | 0.7 | 0.75 |
| Gas consumption | M3/min | 1.2 | 1.2 |
| Outline size | mm | 4160x2930x1750 | 4460x2930x1750 |
1. two horizontal three longitudinal five percent.
the biggest fold function scope 3000mm. Fold 3000 x Two sets of independent motor inverter control with folding of 50m/min speed in adjustable steplessly within the function
2. various types of screed machine matching.
Adopting PLC programmable controller, strong anti-jamming. Highly intelligent LCD screen operation system, has the good human-machine interface, perfect the diagnosis function and safety protection system for daily use, and maintenance of machine of domestic initiative, anti-static function more increased machine working reliability and stability..
folding machine:
| Model | ZD3000-V |
| Max Folding LxW(mm) | 3000x3000 |
| Max NO. of Folds(times) | 5 |
| Folding Speed(m/min) | 10-50 |
| Air Pressure(Mpa) | 0.7 |
| Compressed air(m3/min) | 0.2 |
| Rated Input Power(kw) | 1.3 |
| Dimension(mm) | 4200x2800x1760 |
| Total Weight(kg) | 1600 |
Keeping abreast with the latest advancements in technology, being strong backed by experienced engineers and technicians, Taizhou Tongjiang Washing Machinery Factory has strong quality at competitive price, thus gaining a powerful position in the laundry equipment industry. The main products are: washer extractor, tumble dryer, flatwork ironer, industrial washer, hydro extractor and so on. In addition, with our own complete processing devices including milling, shaping, boring, slotting, drilling, reaming and polishing, also possessing manufacturing procedures of flame cutting, hole piercing, cutting, pressing, bending and molding and large-scale spray painting equipment self-supply, we are able to develop OEM/ODM projects very quickly with low cost.
Leading Features
1. Over 15 years of professional manufacturing experiences.
2. Offer 12 months quality warranty.
3. Short shipping delivery to destination
4. Spare parts always available and stocked.
5. Never received failure from end users
6. We have successfully passed a series of strict factory audits such as CE, ISO 9001, etc.
7. With competitive price, stable quality and dedicated service, our washers, dryers and ironers
are sold mostly to EU, North&South America, Asia and other markets.
