Quick Details
-

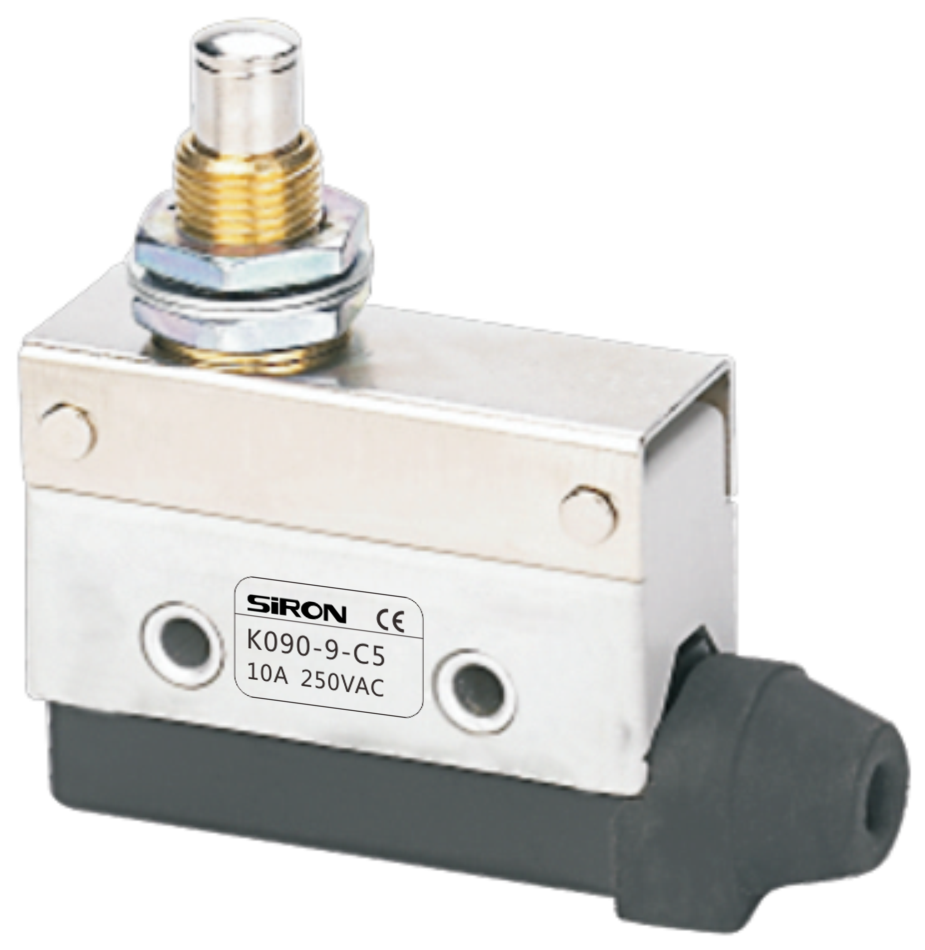

Model Number:
-
K090-9-C
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-10~+80℃
-
Max. Current:
-
see the detail
-
Operating Humidity:
-
<85%
-
Rated Load:
-
10A/250VAC
-
Vibration:
-
10~55Hz Complex Amplitude
-
Operating Speed:
-
0.1mm~50cm/S
-
Electric Operating Frequency:
-
20times/Minute
-
Electricl Life:
-
More Than 100000 Times
-
Mechanical Life:
-
More Than 1 Million Times
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
see the detail
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SiRON
-
Model Number:
-
K090-9-C
-
Protection Level:
-
IP65
-
Operating Temperature:
-
-10~+80℃
-
Max. Current:
-
see the detail
-
Operating Humidity:
-
<85%
-
Rated Load:
-
10A/250VAC
-
Vibration:
-
10~55Hz Complex Amplitude
-
Operating Speed:
-
0.1mm~50cm/S
-
Electric Operating Frequency:
-
20times/Minute
-
Electricl Life:
-
More Than 100000 Times
-
Mechanical Life:
-
More Than 1 Million Times
-
Certification:
-
CE
Features
* Adopt thermoset or thermoplastic shell
* With small contact gap, fast action, high sensitivity and small stroke
* Widely used in various household electrical, electronic equipment, automation equipment,Instrumentation and other fields
* With small contact gap, fast action, high sensitivity and small stroke
* Widely used in various household electrical, electronic equipment, automation equipment,Instrumentation and other fields
Specification
|
Name
|
Micro Switch
|
|
|
|
|
|
|||||
|
Model
|
K090-9-C1
|
K090-9-C2
|
K090-9-C3
|
K090-9-C4
|
K090-9-C5
|
K090-9-C6
|
|||||
|
Action force
|
950g(9.31N)
|
100g(0.98N)
|
130g(1.27N)
|
160g(1.57N)
|
400g(3.92N)
|
400g(3.92)N)
|
|||||
|
Resilience
|
20g(0.49N)
|
20g(0.2N)
|
22g(0.22N)
|
25g(0.25N)
|
60g(0.59N)
|
60g(0.59N)
|
|||||
|
Pre-travel
|
1.8mm
|
6mm
|
8.5mm
|
4.8mm
|
2mm
|
2mm
|
|||||
|
Overtravel
|
0.5mm
|
4mm
|
3.2mm
|
3mm
|
4mm
|
4mm
|
|||||
|
Difference stroke
|
0.5mm
|
2.6mm
|
2mm
|
2mm
|
1mm
|
1mm
|
|||||
|
Action position
|
30.8±0.6mm
|
27±1mm
|
40±1mm
|
40±1mm
|
23±1.2mm
|
33.5±1.2mm
|
|||||
|
Operating speed
|
|
0.1mm~50cm/s
|
|
|
|
|
|
||||||
|
Operating frequency
|
Mechanical
|
120 times/min
|
|
|
|
|
|
||||||
|
|
Electric
|
20times/min
|
|
|
|
|
|
||||||
|
Insulation resistance
|
|
100mΩ or more DC500V
|
|
|
|
|
|
||||||
|
Contact resistance
|
|
25mΩ (initial value)
|
|
|
|
|
|
||||||
|
Medium withstand
voltage |
Non-wired
|
1000VAC
|
|
|
|
|
|
||||||
|
|
Between terminals
|
1500VAC
|
|
|
|
|
|
||||||
|
Vibration
|
|
10~55Hz complex amplitude
|
|
|
|
|
|
||||||
|
Shock
|
Durable
|
1000m/s2
|
|
|
|
|
|
||||||
|
|
Malfunction
|
300m/s2
|
|
|
|
|
|
||||||
|
Life
|
Electric
|
More than 100,000 times
|
|
|
|
|
|
||||||
|
|
Mechanical
|
More than 1 million times
|
|
|
|
|
|
||||||
|
Protection level
|
|
IP65
|
|
|
|
|
|
||||||
|
Operating temperature
|
|
-10~+80ºC
|
|
|
|
|
|
||||||
|
Operating humidity
|
|
<85%
|
|
|
|
|
|
||||||
