Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KAIST
-
Dimension(L*W*H):
-
540x590x625
-
Weight:
-
58
-
Rated power/speed:
-
14KW/3600RPM
-
Product name:
-

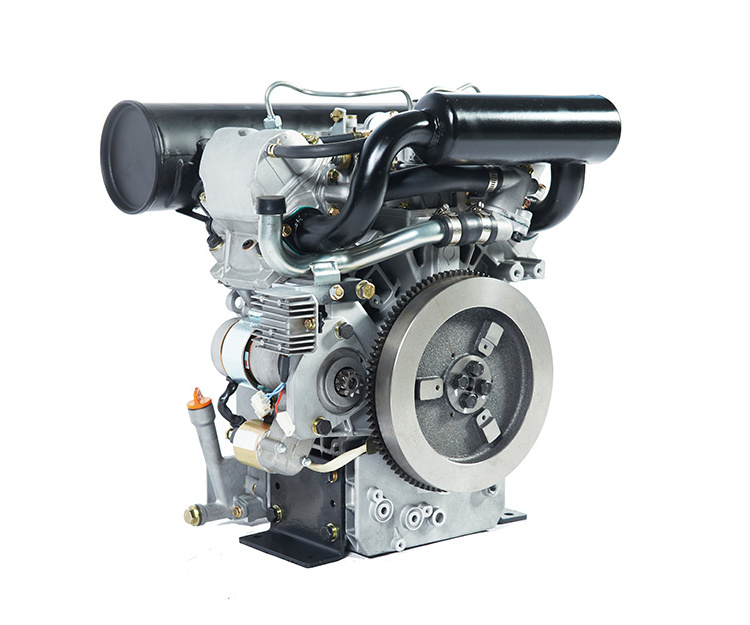

Two Cylinder Water Cooled Diesel Engine
-
Engine type:
-
Water-cooled 4-stroke
-
Rated Power:
-
14KW
-
Starting system:
-
Electric Starter
-
Engine Model:
-
2V80
-
Type:
-
Vertical Four-stroke
-
Name:
-
22hp Diesel Engine
-
BORE*STROKE:
-
2*80x79
-
Certification:
-
CE
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
Egypt, Canada, Turkey, Italy, Viet Nam, Peru, Indonesia, Mexico
-
Showroom Location:
-
Egypt, Canada, Turkey, Italy, Viet Nam, Peru, Indonesia
-
After-sales Service Provided:
-
No overseas service provided
Quick Details
-
Displacement:
-
794ML, 794CC
-
Emission Standard:
-
Euro 3
-
Power:
-
20HP
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KAIST
-
Dimension(L*W*H):
-
540x590x625
-
Weight:
-
58
-
Rated power/speed:
-
14KW/3600RPM
-
Product name:
-
Two Cylinder Water Cooled Diesel Engine
-
Engine type:
-
Water-cooled 4-stroke
-
Rated Power:
-
14KW
-
Starting system:
-
Electric Starter
-
Engine Model:
-
2V80
-
Type:
-
Vertical Four-stroke
-
Name:
-
22hp Diesel Engine
-
BORE*STROKE:
-
2*80x79
-
Certification:
-
CE
-
After Warranty Service:
-
Video technical support, Online support, Spare parts
-
Local Service Location:
-
Egypt, Canada, Turkey, Italy, Viet Nam, Peru, Indonesia, Mexico
-
Showroom Location:
-
Egypt, Canada, Turkey, Italy, Viet Nam, Peru, Indonesia
-
After-sales Service Provided:
-
No overseas service provided
Products Description
|
16/21.8KAIST Series Diesel engine is one four stroke compression ignition with crankshaft power take off (3000/3600rpm)small diesel engine, include Single Cylinder Air Cooled Diesel engine (From to ), L-Twin Cylinder Air Cooled Diesel Engine(292 Max 23HP),V-Twin Cylinder Water Cooled Diesel Engine(2V80(EV80) Max21HP), V-Twin Cylinder Air Cooled Diesel Engine(2V88 Max22HP 2V92 Max24HP 2V95 Max28HP)
Main Features: ● High Power Output, Strong Over load Capacity. With advance technology and strictly QC system, all the KAIST diesel engine have been tested, to make sure all the engine are qualified. ● Simple Structure, Stable Performance. KAIST Diesel engine with Aluminum cylinder body and head to make the engine light weight and small volume, which can be easy move, operation and maintenance. ● High efficiency,Eco friendly KAIST diesel engine have do some improvement in the fuel supplying system, which make the engine high efficiency ● Wide application KAIST diesel engine from 2HP to 23HP, and with different type power take off crankshaft, can reach many different power equipment requirement. Application Area Agriculture Machinery,Vehicle, Boat, Generator, Garden Machinery, Construction Machinery etc |
|
|
|
|
||||
PRODUCT SPECIFICATIONS
|
Model No
|
|
2V80
|
|
2V88
|
|
2V92
|
|
|||||
|
Engine Type
|
|
V-Type 2-Cylinder 4-Stroke Water Cooled Diesel Engine
|
|
V-Type 2-Cylinder 4-Stroke Air Cooled Diesel Engine
|
|
|
|
|||||
|
Bore*Stroke
|
(mm)
|
2*80x79
|
|
2*88x75
|
|
2*92x75
|
|
|||||
|
Displacement
|
(ml)
|
794
|
|
912
|
|
997
|
|
|||||
|
Compression Ratio
|
|
20:01
|
|
20:01
|
|
20:01
|
|
|||||
|
Rated Power
|
(Kw/Hp)
|
12/16.3
|
14/19.4
|
13.8/18.6
|
14.8/20.2
|
14.8/20
|
16/21.8
|
|||||
|
Rated Speed
|
(rpm)
|
3600
|
3000
|
3600
|
3000
|
3600
|
3000
|
|||||
|
Lube Capacity
|
(L)
|
1.5~3.3
|
|
3
|
|
3.8
|
|
|||||
|
Starting System
|
|
Electric Starter
|
|
|
|
|
|
|||||
|
Power -Take-Off
|
|
Crankshaft
|
|
|
|
|
|
|||||
|
Overall Dimension
|
(LxWxH）（mm）
|
540x590x625
|
|
58
|
|
58
|
|
|||||
|
Dry Weight
|
(Kgs)
|
58
|
|
76
|
|
82
|
|
|||||
PRODUCT CONFIGURATION
