Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Renhotec
-
Model Number:
-
M12 PCB Panel Mount
-
Product name:
-
Circular Connector M12 Male and Female 3, 4, 5, 8 Pin
-
Number of contacts:
-
2 / 3 / 4 / 5 / 6 / 8 / 12 / 17 PIN
-
Operating voltage:
-
250V-AC/ 60V/ 30V, current 4A / 1.5A
-
Protection degree:
-
IP67
-
Temperature range:
-
-40°C ~ + 105°C
-
Standard:
-
IEC 61076-2-101
-
Orientation:
-
Straight and Angled are available
-
Connector contacts:
-
Brass with gold plated
-
Termination:
-
Soldering/Through Hole
-
Connection type:
-
Panel mount/Cable type
Quick Details
-
Type:
-
Aviation Connector
-
Application:
-
Automotive
-
Gender:
-
Female Male
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Renhotec
-
Model Number:
-
M12 PCB Panel Mount
-
Product name:
-
Circular Connector M12 Male and Female 3, 4, 5, 8 Pin
-
Number of contacts:
-
2 / 3 / 4 / 5 / 6 / 8 / 12 / 17 PIN
-
Operating voltage:
-
250V-AC/ 60V/ 30V, current 4A / 1.5A
-
Protection degree:
-
IP67
-
Temperature range:
-
-40°C ~ + 105°C
-
Standard:
-
IEC 61076-2-101
-
Orientation:
-
Straight and Angled are available
-
Connector contacts:
-
Brass with gold plated
-
Termination:
-
Soldering/Through Hole
-
Connection type:
-
Panel mount/Cable type

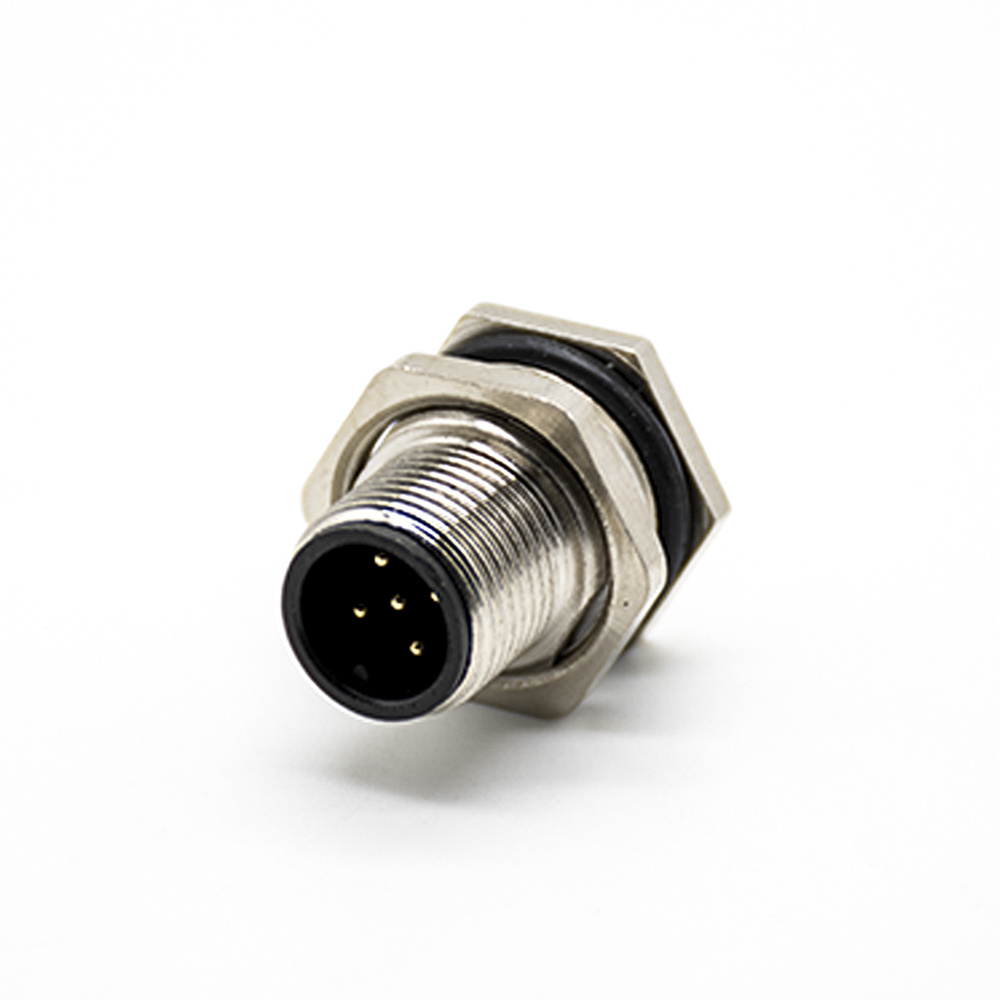

M12 5 Pin Male Front Mount 5p Fixed Shielding Waterproof PCB Panel Type Connector Nmea 2000 with Solder Socket Wire Pins
Full Series : M12 PCB Panel Mount
All types of Circular Connector from OEM Manufacturer in China
M12 5 Pin Male A-code Panel Mount 5pin Conector 90 Degrees Aviation Plug Metal Right Angle Lan Modular m12 Flush-type Connector
The M12 Panel Receptacle series provides three kinds of mount choice: PCB Mount, Panel Mount & Cable, and have three features of mount: Front Mount, Back Mount, 4 Hole Flange. According to IEC 61076-2-101/104 standard, complying with IP67 protection level.
Products Feature
M12*1 thread locking mechanism, anti-vibration locking design;
Easy quick connect and disconnect coupling;
Pin configurations: 2, 3, 4, 5, 8, 12 and 17 positions;
A, B, C, D, K, L, X, S, T coding available;
Meets IP67/IP68 waterproof requirements;
Temperature Range: -25°C ~ + 85°C ;
Alternative mount arrangements for solder cup or PCB;
Panel Mount and distribution version available;
Benefits
Nickel plated brass
High durability, corrosion resistance, oxidation resistance
Strong waterproof performance
| Standard | IEC 61076-2-101 / 104 |
| Gender | Male / Female |
| Number of Contacts | 2 / 3 / 4 / 5 / 8 / 12 / 17 Pin |
| Coding | A / B / C / D / K / L / X / S / T Code |
| Termination | Soldering / PCB / Srew - Jo1nt |
| Cable length | Base on customer's request |
| Contacts plating | Gold plated, thickness 1 U" |
| Connection type | Single ended cable / Double ended cable |
| Orientation | Straight / Right Angle |
| Insert/ Housing | NYLON66 + GF |
| Overmold / Shell | Metal shell |
| Connector contacts | Brass with gold plated |
| Rated current | 4A: 3 / 4 / 5Pin 2A: 8 Pin 1.5A: 12 Pin |
| Rated Voltage | 250V: 3 / 4 / 5 Pin 60V: 8 Pin 30V: 12Pin |
| Ambient temperature | -40°C~ + 90°C |
| Coupling nut / screw | Brass with nickel plated screw |
| Insulation resistance | ≥100MΩ |
| Sealing | Epoxy resin |
| Contacts resistance | ≤5MΩ |
| Shielding | Non-Shielded |
| IP rating | IP67 IP68 |
