Quick Details
-
Lift Speed:
-
1/12m/min 0.5/12m/min
-
Marketing Type:
-
New Product 2024
-
Weight (KG):
-
35 kg, 35 kg
-
Product name:
-

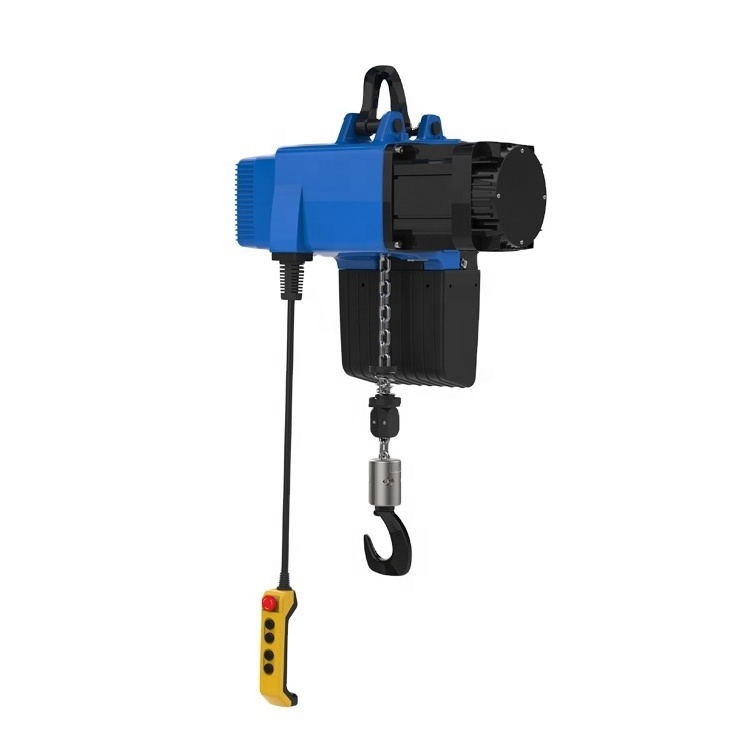

HH-V2 Variable Frequency Chain Hoist
-
Maximum Load(kg):
-
125
-
Lifting Speed(m/min):
-
1/12 0.5/12
-
Rated Power(kw):
-
0.75
-
Vertical Maximum Stroke(m):
-
4/5/8/11
-
Control Mode:
-
Wire control button/remote control button
-
Deadweight(kg):
-
25
-
Power Supply:
-
Standard 380V(Optional 220V)
-
Working Level of theOrganization:
-
HH-V2
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
VOHOBOO
-
Lift Speed:
-
1/12m/min 0.5/12m/min
-
Marketing Type:
-
New Product 2024
-
Weight (KG):
-
35 kg, 35 kg
-
Product name:
-
HH-V2 Variable Frequency Chain Hoist
-
Maximum Load(kg):
-
125
-
Lifting Speed(m/min):
-
1/12 0.5/12
-
Rated Power(kw):
-
0.75
-
Vertical Maximum Stroke(m):
-
4/5/8/11
-
Control Mode:
-
Wire control button/remote control button
-
Deadweight(kg):
-
25
-
Power Supply:
-
Standard 380V(Optional 220V)
-
Working Level of theOrganization:
-
HH-V2
Product Description
1. Special servo motor, smooth operation performance.
2. Move smoothly as you want, accurate positioning. Wide range of liftingand lowering speeds, high precision, minimum 0.05m/min, maximum27m/min (less than 10% of the rated load), flexible choice.
3. Quiet, smooth and vibration-free, with high precision alignment accuracy.
4. Electronic friction clutch design, long service life of the wholemachine, maintenance-free.
5. Adapts multiple interfaces, flexible configuration, can be adapted to a variable control interface signals.
6.Built-in remote control module to control the operation of electricsmall sports car and big car.
2. Move smoothly as you want, accurate positioning. Wide range of liftingand lowering speeds, high precision, minimum 0.05m/min, maximum27m/min (less than 10% of the rated load), flexible choice.
3. Quiet, smooth and vibration-free, with high precision alignment accuracy.
4. Electronic friction clutch design, long service life of the wholemachine, maintenance-free.
5. Adapts multiple interfaces, flexible configuration, can be adapted to a variable control interface signals.
6.Built-in remote control module to control the operation of electricsmall sports car and big car.
Product Details
Product Advantages
Specification
|
Maximum Load(kg)
|
125
|
250
|
500
|
1000
|
2000(Double Chain)
|
||||
|
Lifting Speed(m/min)
|
1/12
0.5/12
|
1/10
0.5/10
|
1/8
0.5/8
|
1/8
0.5/8
|
0.5/4
|
||||
|
Rated Power(kw)
|
0.75
|
0.75
|
1.1
|
2.2
|
2.2
|
||||
|
Vertical Maximum Stroke(m)
|
4/5/8/11(Customizable)
|
|
|
|
|
||||
|
Control Mode
|
Wire control button/remote control button
|
|
|
|
|
||||
|
Deadweight(kg)
|
25
|
25
|
32
|
52
|
62
|
||||
|
Power Supply
|
Standard 380V(Optional 220V)
|
|
|
|
|
||||
|
Working Level of the Organization
|
HH-V2
|
|
|
|
|
||||
|
Working Temperature
|
-10-55
|
|
|
|
|
||||
Product Application
Products real shot
Packing & Delivery
Standard export packing
