Quick Details
-
Place of Origin:
-
Shandong,China
-
Brand Name:
-
LongShenghe
-
Model Number:
-
LPVC
-
Raw Material:
-
Fiber and PVC
-
Usage:
-
Logistic Transport & Storage
-
Size:
-
Customized
-
Color:
-
Black, White
-
Feature:
-
Durable
-
Shape:
-
Square or Rectangle
-
Quality:
-
High strength and hightenacity
-
Density:
-
1200kg/m3
-
Lifetime:
-
More than 7 years
-
Thickness:
-
20-100mm
Quick Details
-
Material:
-
Plastic
-
Type:
-
Euro Pallet
-
Style:
-
Double Faced
-
Place of Origin:
-
Shandong,China
-
Brand Name:
-
LongShenghe
-
Model Number:
-
LPVC
-
Raw Material:
-
Fiber and PVC
-
Usage:
-
Logistic Transport & Storage
-
Size:
-
Customized
-
Color:
-
Black, White
-
Feature:
-
Durable
-
Shape:
-
Square or Rectangle
-
Quality:
-
High strength and hightenacity
-
Density:
-
1200kg/m3
-
Lifetime:
-
More than 7 years
-
Thickness:
-
20-100mm
Products Description
|
NO.
|
Characteristics
|
Technical Indicator
|
Outstanding Performance
|
|
1
|
Rigidity
|
Elasticity Modulas 3.7 GP
|
No Deformation
|
|
2
|
High Load Bearing
|
Max load 2.0 kN
Bending Strength 51.0 MPa |
Stand big pressure, high load, and brings no rupture
|
|
3
|
Anti-abrasion
|
Rockwell Hardness 70
|
Long Life Span
|
|
4
|
Anti-impact
|
Withstand Impact of 20KJ/㎡
|
Vibration Resistant, Anti-fall, and no Cracking
|
|
5
|
Weather Resistant
|
Temperature between
-40°C(-40℉)~90°C(194℉) |
Insolation Resistant, Anti-aging, Steam Curing
|
|
6
|
Erosion Resistant
|
Resistance of most Acid, Alkali, and Salt
|
Protect inner steel and bamboo against rust and mildew
|
|
7
|
No Water Immersion
|
Water Immersion Rate<0.2%
|
|
|
8
|
Life Span
|
> 6 years
|
Low Cost for each day
|
|
9
|
Damage rate
|
0.1% damage within 6 years
|
|
|
10
|
Deviation
|
Thickness ±1mm, length ±2mm
|
|
|
11
|
Warranty
|
3 years
|
|
Raw materials

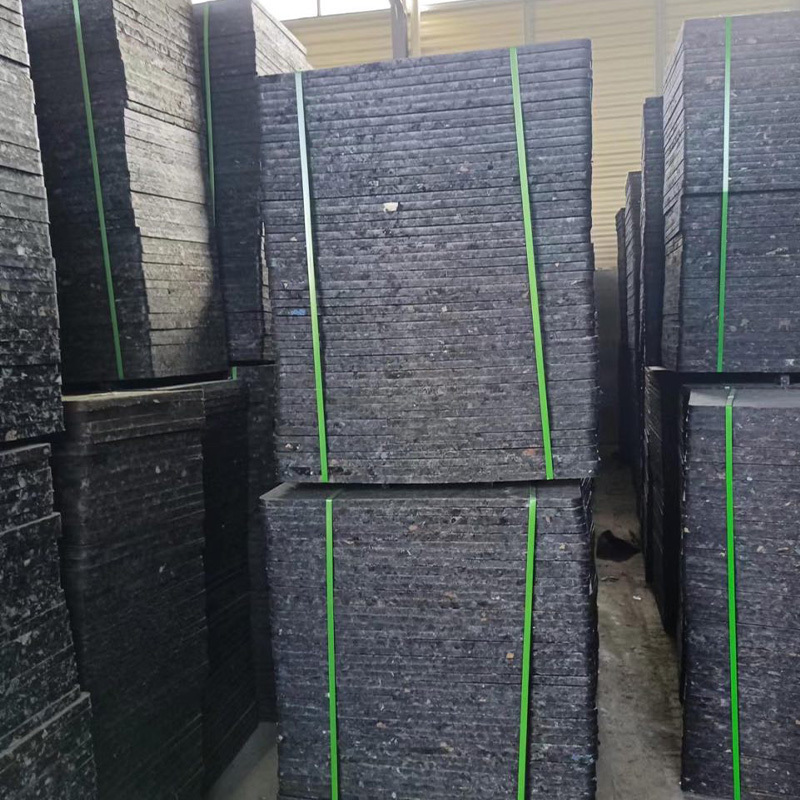

Our GMT pallet is made of glass fiber as the reinforcement material and thermoplastic resin as the base material and is made by crushing, heating, cooling, pressurizing, and other methods.
All materials are recyclable. Longshenghe adheres to the concept of maximizing resource utilization and an environment-friendly production environment. Come join us to contribute to the cause of environmental protection.
Non-slip material, the goods are not easy to fall off
The rough surface provides the pallet with special properties of non-slip and wear-resisting, which ensures that the goods will not slip off during transportation and effectively avoid possible damage caused by falling.
Rugged construction and long service life
The surface is smooth and flat, the fiber brick pallet is now made into a smooth and flat surface, the size is very accurate, and the size difference is within 1mm; its surface is almost like the palette surface PVC brick.
Surface hardness shore: 76D. 100 minutes vibration with materials and pressure. The brick machine screws off, the pallet is not destructed, and surface wear is about 0.5mm.
High Impact Resistant
Anti-high and low temperature
being used at min 20 degrees, the GMT pallet won't deform or crack.
GMT pallet is able to withstand the high temperature of 60-90℃, won't easily deform, and is suitable for steam curing, but PVC pallet is easy to deform at a high temperature of 60 degrees.
GMT pallet is able to withstand the high temperature of 60-90℃, won't easily deform, and is suitable for steam curing, but PVC pallet is easy to deform at a high temperature of 60 degrees.
Chemical resistance&
environmentally friendly
Chemical properties: anti-rust, anti-acid, anti-foaming, water-resistant; these chemical properties are like PVC brick pallets, better than bamboo plywood, wooden pallets; not like rusted steel plates.
Fiber brick support has low-temperature resistance and high-temperature resistance characteristics. PVC brick support will become soft in high temperatures and brittle in low-temperature weather.
Ecological environment, because the fiber pallet for the block machines uses scraps from the roof, it is more friendly to our global environment.
Wear-resistant and waterproof
Water absorption rate <1%,
applicable to a variety of scenarios, there will be no mold or deterioration caused by water.
Application Scenario
GMT pallets are generally used in production and construction related industries together with brick making machines. Its solid internal structure and wear-resistant outer layer are trustworthy.
