12V Fail Safe Electric Drop Bolt Locker Gate Door Normal Temp 2 Wires Automatic Electric Drop Bolt Deadbolt Lock

12V Fail Safe Electric Drop Bolt Locker Gate Door Normal Temp 2 Wires Automatic Electric Drop Bolt Deadbolt Lock

FOB Reference Price: Get Latest Price

≥1 Pieces

US $6

≥50 Pieces

US $5.7

≥100 Pieces

US $5.4

Free Inquiry

Customized Request

Explore More Products

Africa Market High Security Gate Door Latch Exterior Rim Door Anti Theft Deadbolt Lock

$ 15.26 - $ 15.4

Cheap Price Home Gate Safety Keyway Anti Theft Cylinder Deadbolt Set Door Spring Lock Rim Door Lock

$ 2.44 - $ 2.92

Cheap Price Home Door Gate Safety Keyway Anti Theft Cylinder Deadbolt Set Door Spring Rim Lock

$ 15.26 - $ 15.4

Cheap Price Home Door Gate Safety Keyway Anti Theft Cylinder Deadbolt Rim Lock Set

$ 15.26 - $ 15.4

Product Details

{{item.text}}

Quick Details

Signal Output:: Door status sensor

Dual Voltage:: 12V

Current Draw:: Start 900Ma Standby 100mA

Fail Safe:: Locked when energized

Weight:: 0.72g

Opening Mode:: 180 degree swinging door

Face Plate:: 205Lx35WX41H(mm)

Strike:: 90Lx25Wx2H(mm)

Suitable For:: Wooden Door,Glass Door,Metal Door,Glass Door

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: ACM

Product Name:: Automatic Electric Drop Bolt Deadbolt Lock

Signal Output:: Door status sensor

Dual Voltage:: 12V

Current Draw:: Start 900Ma Standby 100mA

Fail Safe:: Locked when energized

Weight:: 0.72g

Opening Mode:: 180 degree swinging door

Face Plate:: 205Lx35WX41H(mm)

Strike:: 90Lx25Wx2H(mm)

Suitable For:: Wooden Door,Glass Door,Metal Door,Glass Door

Product Description

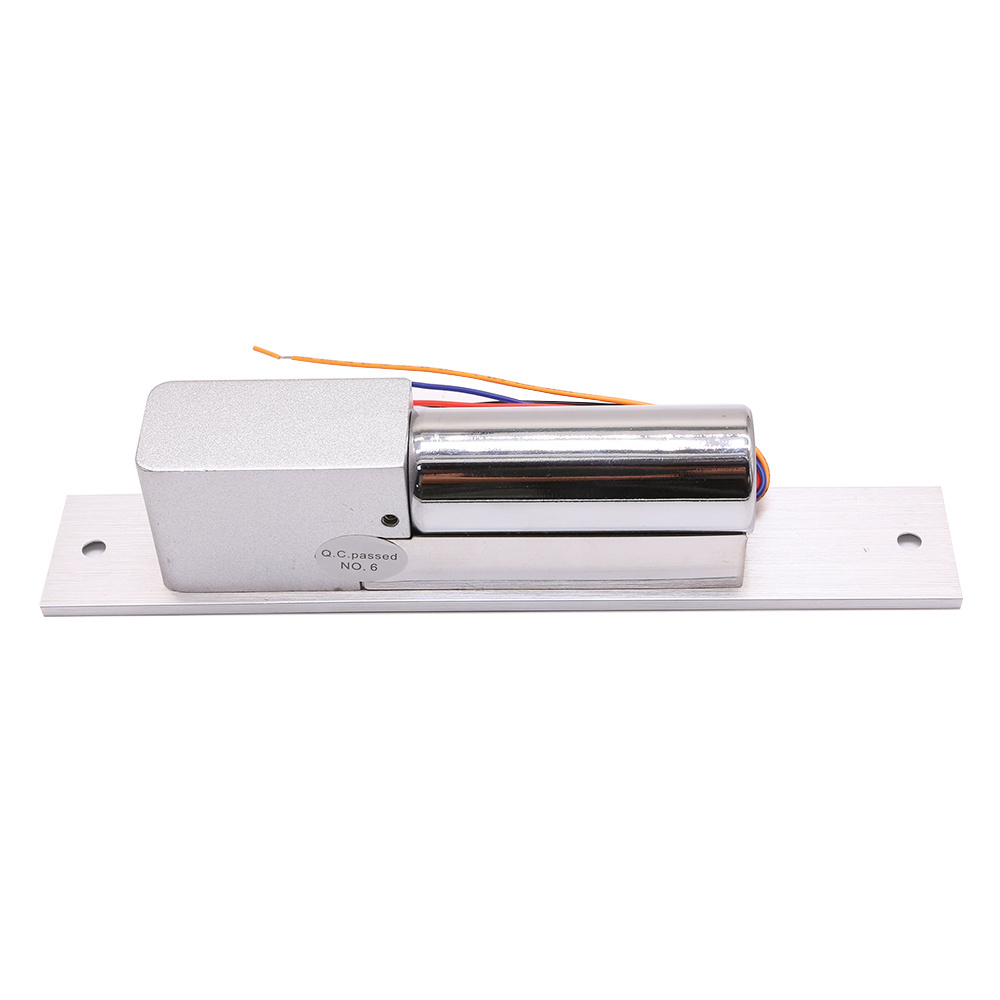

12V Fail Safe Eletric Drop Bolt Locker Gate Door Normal temp 2 Wires Automatic Electric Drop Bolt Deadbolt Lock

Y100 is a fail safe electric bolt. suitable for glass door, wooden door, metal door. We supply integrity equipment tocol locate with fully frameless glass door, swing-indoor and so on.Build-in Photo electricity control and low temperature design.

Low Temperature, safe & Durable.
Low Power, Environmental Protection.
Special photoelectricity control,three steps current application.
Long Life with 500000 cycles.
MOV Provides Reverse Current Protection.
Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt.
Double protection for loading current.
Certificate:CE&MA
Photoelectricity Control,Low Temperature，
A:The Low Current is Changed immediately;
B:When door frame doesn`t coincide with doorleaf ,door leaf against the bolt,then the electricbolt will start the low-power function to bring low temperature.
C:The Photoelectricity Control Technology, prevent the machanical defect.

Product Parameter	Parameter Description
Feature	Fail Safe
Face Plate	205Lx35WX41H(mm)
Strike	90Lx25Wx2H(mm)
Voltage	12V +
Start Current	900mA
Standby Current	110mA
Solid Bolt	polishing housing, 800Kg Holding Force
Suitable For	Wooden Door,Glass Door,Metal Door
Autolock Time Delay	0,3,6,9sec
Signal Output	Door status Output,NC/COM
Surface Temp	Low Temperature
Surface Temp	8mm
Operating Temperature	-10～+55℃(14~131F)
Operating Humidity	0～90%(non-condensing)
Special Designed	Tested to 500000 operations
Face Place Material	High Aluminum
Weight	0.72kg

FAQ

1. what is your MOQ ? Usually our MOQ is 500 pcs. But we accept lower quantity for your trial order.

2. Can we provide sample ? Sure. We usually provide existing sample for free. But a lttle sample charge for custom designs. Sample charge is refundable when order is up to certain quantity.

3.How long is the sample LEAD TIME? For existing samples, it takes 1-2 days. They are free. If you want your own designs, it takes 3-7 days, subject to your designs whether they need new printing screen, etc.

4. How long is the production lead time? It takes 10-15 days for MOQ.

5. How much is the freight charge? To save cost for you and in order that you can get goods earlier, we suggest to deliver by express for small quantity.For large quantity, we suggest to deliver by sea.

6. What format of the file do you need if I want my own design? We have our own professional designers. So you can provide JPG, Al, CDR or PDF, etc. We will draw artwork for mold or printing screen for you.
