Quick Details
-
Power:
-
1100W
-
Dimension(L*W*H):
-
400*550*700
-
Weight (KG):
-
110
-
Marketing Type:
-
Available
-
Evaporation Capacity(kg/h):
-
1-2KG/BATCH
-

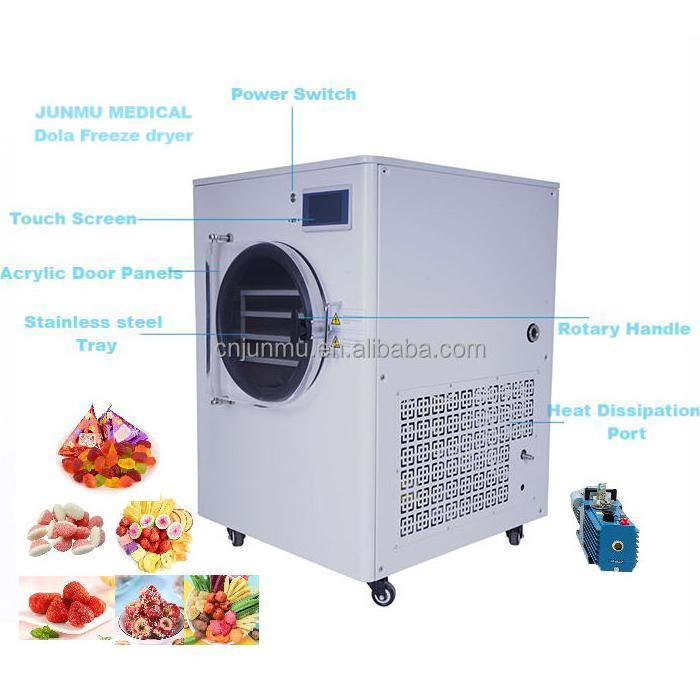

Product name:
-
Freeze dryer
-
Function:
-
Food Vegetable Fruit Freeze Drying
-
Advantage:
-
Low Temperature Vacuum Drying
-
Application material:
-
Vegetable Herbal Fruit Flower
-
Keywords:
-
Vacuum Freeze Dryer
-
Freeze-drying area:
-
0.1㎡
-
Limit vacuum:
-
15pa (no load)
Quick Details
-
Type:
-
Vacuum Freeze Drying Equipment
-
Place of Origin:
-
Guangdong, China
-
Voltage:
-
220V/380V/UPON
-
Power:
-
1100W
-
Dimension(L*W*H):
-
400*550*700
-
Weight (KG):
-
110
-
Marketing Type:
-
Available
-
Evaporation Capacity(kg/h):
-
1-2KG/BATCH
-
Product name:
-
Freeze dryer
-
Function:
-
Food Vegetable Fruit Freeze Drying
-
Advantage:
-
Low Temperature Vacuum Drying
-
Application material:
-
Vegetable Herbal Fruit Flower
-
Keywords:
-
Vacuum Freeze Dryer
-
Freeze-drying area:
-
0.1㎡
-
Limit vacuum:
-
15pa (no load)
Product Description
Specification
|
MODEL
|
HFD-1
|
HFD-4
|
HFD-6
|
HFD-8
|
HFD-15
|
||||
|
Freeze-drying area
|
0.1㎡
|
0.4㎡
|
0.6㎡
|
0.8㎡
|
1.5㎡
|
||||
|
Cold trap plate temperature
|
<-40℃(no-load)
|
|
|
|
|
||||
|
Ultimate vacuum degree
|
15pa(no-load)
|
|
|
|
|
||||
|
Power supply
|
220V/110V 50HZ/60HZ
|
|
|
|
|
||||
|
Watt
|
750w
|
1100w
|
2300w
|
2500w
|
3500w
|
||||
|
Processing capacity
|
1-2KG/batch
|
4-6KG/batch
|
6-8KG/batch
|
10-12KG/batch
|
18-20KG/batch
|
||||
|
Weight
|
50KG
|
80KG
|
120KG
|
130KG
|
186KG
|
||||
|
Layer interval
|
45mm
|
45mm
|
50mm
|
38mm
|
45mm
|
||||
|
Material tray dimensions
|
140*278mm 3layers
|
200*450mm 4layers
|
300*400mm 5layers
|
275*445mm 8layers
|
275*790mm 7layers
|
||||
|
Overall dimensions
|
400*550*700mm
|
510*700*850mm
|
700*800*1300mm
|
680*640*1180mm
|
680*990*1180mm
|
||||
|
Packaging size (mm)
|
570*680*1170mm
|
630*840*1260(mm)
|
820*800*1540mm
|
820*800*1540mm
|
820*1170*1600mm
|
||||
|
Weight with packaging (kg)
|
113kg
|
139kg
|
197kg
|
203kg
|
281kg
|
||||
