Quick Details
-
Dimension(L*W*H):
-
2300*1100*1750mm
-
Weight:
-
850 KG
-
Marketing Type:
-
Hot Product
-
Drilling Diameter:
-
0-100mm
-
Mobility:
-
Customized
-
Product name:
-
Mini rock drill
-
Drilling diameter:
-
0-100mm
-
Drilling depth:
-
0-100 m
-
Application:
-
For rock exploration
-
Color:
-
Customer Required
-
Improve ability:
-
Max.Lift 5 tons
-
Engine:
-
Disel Engine
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Demao
-
Voltage:
-
220V, 380V
-
Dimension(L*W*H):
-
2300*1100*1750mm
-
Weight:
-
850 KG
-
Marketing Type:
-
Hot Product
-
Drilling Diameter:
-
0-100mm
-
Mobility:
-
Customized
-
Product name:
-
Mini rock drill
-
Drilling diameter:
-
0-100mm
-
Drilling depth:
-
0-100 m
-
Application:
-
For rock exploration
-
Color:
-
Customer Required
-
Improve ability:
-
Max.Lift 5 tons
-
Engine:
-
Disel Engine

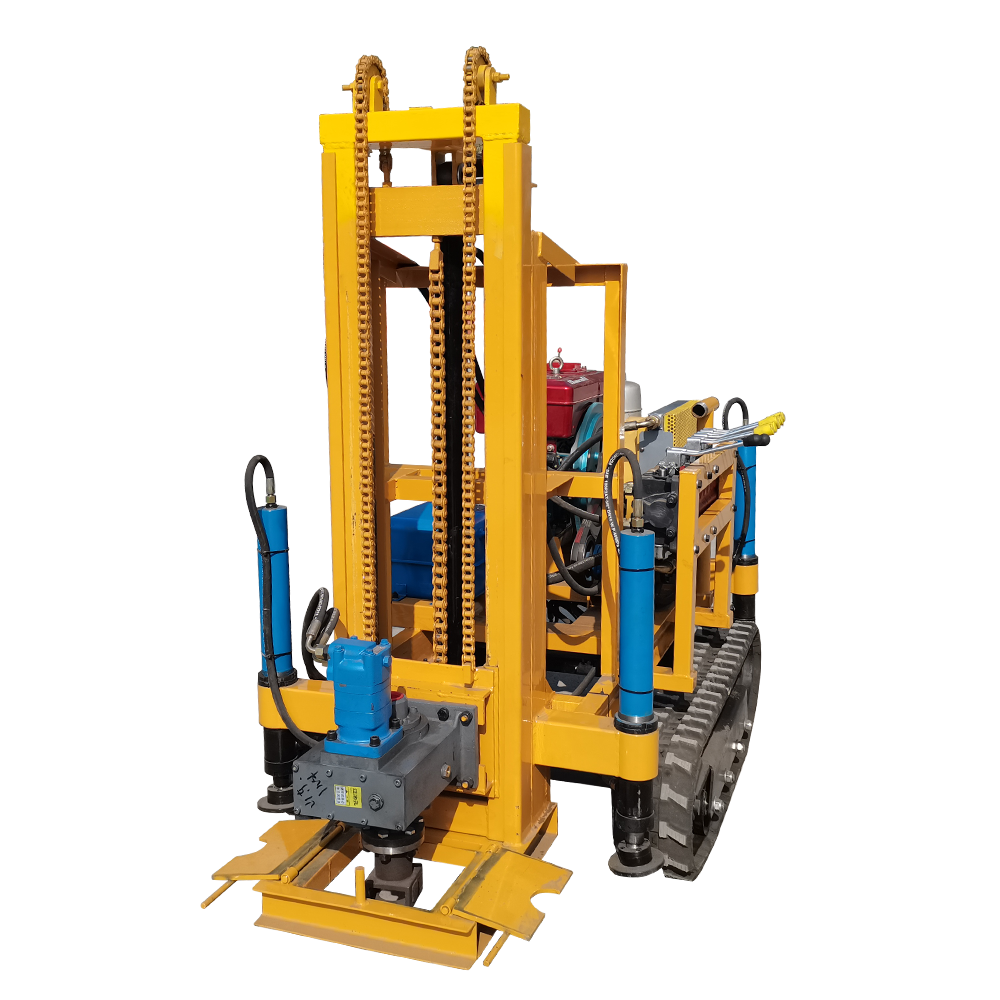

Products Description
The water-air dual-purpose series drilling rig is a lightweight, efficient and multifunctional drilling equipment.It is suitable for industrial, civil drilling and geothermal drilling projects. Adopt powerful diesel engine with large torque and strong carrying capacity, more efficient and energy-saving. It solves the difficulty of drilling with the air DTH hammer in the soil layer and the low construction efficiency of the rotary drilling rig in the hard rock layer, gravel and pebble layer.
Hydraulic pump can be change to Famous brand . diesel engine also can be changed according your requirements .It can add mud pump and foam pump . We have enough experience for South America ,Southeast Asia,North America, Africa etc .
|
Product name
|
Water-gas rock exploration drilling rig
|
|
Engine
|
25 HP diesel engine
|
|
Improve ability
|
Max.Lift 5 tons
|
|
Product size
|
2300*1100*1750mm
|
|
Machine weight
|
850kg
|
|
Max.Depth
|
Max.depth of 100 m
|
|
Max.diameter
|
Max.100mm
|
|
Application
|
For rock exploration
|
Product Display
Hydraulic Power Head
High torque power head, fast drilling speed, high torque, multi-function can be changed to water drill.
High power engine
Adopting branded single-cylinder diesel engine, strong power, reliable performance, stable operation for a long time.
Rubber tracked chassis
Adaptable to all kinds of complex terrain, no damage to the road surface, flexible and maneuverable.
Simple console
Single person can operate drilling, easy to operate, easy to use.
Product Application
It is suitable for drilling water well, geological survey, geological core drilling, small grouting holes, blasting holes of railway, water conservancy, bridges, dam foundation and other buildings.
